PRESONUS / Quantum 2626 Intro Price

■ Audio interface
■ Thunderbolt 3

■ Main features
Thunderbolt 3 Ultra Low Latency Audio Interface Quantum 2626: Up to 26In 26Out
-The fastest interface in PreSonus history, directly connected to your DAW without DSP / hardware monitoring
・ A large-scale system can be constructed by daisy-chaining up to 4 Quantum series units.

■ Software
-DAW software Studio One (Mac /) that provides a multi-track music production environment and studio command functions tightly integrated with Windows)
-Free touch control software UC Surface (Mac / Windows / iPad / Android) and free iPad / Android software
Wireless control from pre-Studio One Remote
-Compatible with most recording software (for Mac and Windows)

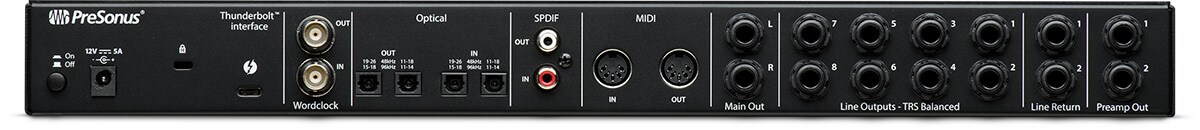

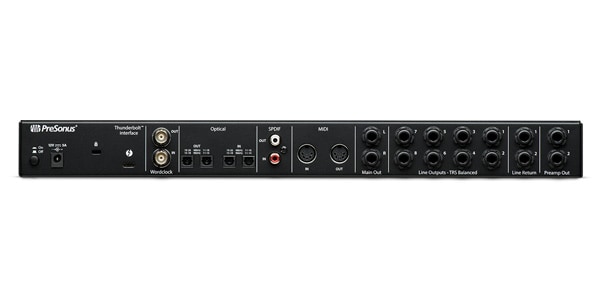

■ Flexible connectivity
・ One Thunderbolt 3.0 terminal
・ Simultaneous I / O with maximum 26 inputs / 26 outputs
・ 8 microphone inputs
・ 6 line level inputs
・ 2 instrument inputs
・ 8 XMAX class A microphones and preamps
・ Preamplifier output for input 1/2 channel & line return input
・ Balance "8 TRS line level outputs
・ Balance ”TRS line level ・ 2 main outputs
・ Since the line output supports DC coupling, CV transmission to analog equipment is possible.
· ADAT Optical / Dual SMUX Input / Output: 16x16 channels at 44.1 or 48 kHz, 8x8 at 88.2 or 96 kHz channel
・ Stereo S / PDIF coaxial input / output
-Two high-volume headphone outputs with dedicated volume control
-MIDI I / O (5-pin DIN terminal)

■ Digital
・ Thunderbolt high speed bus
・ Resolution 24-bit, maximum sampling rate 192 kHz
・ Top quality A / D / A converter
・ BNC word clock input / output, low jitter clock

Size and weight
H x D x W = 44.45 x 177.8 x 482.6 mm
Weight = 2.72 kg
Package contents
--Studio One Artist license (user registration required)
--Studio Magic Plugin Suite (User Registration Required)
--Bookbinding version Japanese owner's guide
- rubber foot
―― 12 VDC external power supply (PSE acquired)
* Thunderbolt cable is not included in the package.

System requirements
Mac
MAC OS X 10.11.6 or later
Intel Core i5 processor and above
4GB or more RAM (8GB or more recommended)
Windows
Windows 10 64-bit
Intel Core i5 processor and above
4GB or more RAM (8GB or more recommended)
Mac & Windows
Thunderbolt 1.0, 2.0 or 3.0 ports (computer motherboard must support Thunderbolt
Su. Certified Thunderbolt 3 Adapter)
Internet connection environment (required when registering and downloading attached software)
Hard disk capacity of 30GB or more (storage drive 7200 RPM or more is highly recommended)
1366x768 pixel or higher resolution monitor
