Electro-Voice / MFX-15MC-B PAスピーカー

Electro-Voice製の15インチ・PAスピーカーです。高出力、バイアンプまたはパッシブ切り替え、同軸設計によるコンパクトサイズにより多彩な使用が可能。

■ PA speaker
■ Coaxial 15"
■ 500W (RMS), 1000W (PGM), 3500W (PEAK)
■ 8ohms
■ 23kg
■ Black
■ 1pc

■ Frequency response (-3dB): 52 Hz-18 kHz
■ Frequency range (-10 dB): 45 Hz-19 kHz
■ Coverage: 60° x 40° FOH, 40° x 60° Monitor
■ Maximum output sound pressure level: 136dB
■ Sensitivity: 97 dB (1 W / 1 m)
■ Nominal impedance passive 8Ω
■ Nominal impedance biamp LF 8Ω
■ Nominal impedance biamp HF 8Ω
■ Transducer: CXCA3158-1CA

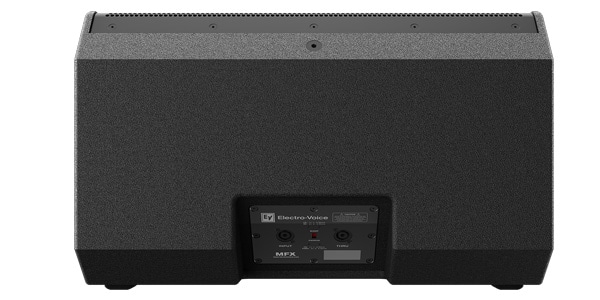

■ Connector: Neutrik NL4 input with NL4 pass through
■ Enclosure: 12-18-mm Baltic birch plywood with EVCoat
■ Logo: Rotatable
■ Monitor angle: 35° and 55°
■ Grill: 1.5-mm zinc plated steel with corrosion resistant coating
■ Handles: Handles, Two with integrated cup for standard 35-mm pole
■ Suspension: Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories
■ Dimensions (H x W x D): 600 mm x 500 mm x 339 mm
