Electro-Voice / MFX-15MC-W PAスピーカー

This is a 15-inch PA speaker from Electro-Voice. The color is white.

■PA Speaker

■Coaxial 15""

■500W (RMS), 1000W (PGM), 3500W (PEAK)

■8 ohms

■23kg

■White

■1 unit

■Frequency Response (-3dB): 52 Hz - 18 kHz

■Frequency Range (-10 dB): 45 Hz - 19 kHz

■Coverage: 60° x 40° FOH, 40° x 60° Monitor

■Maximum Output SPL: 136dB

■Sensitivity: 97 dB (1 W/1 m)

■Nominal impedance passive 8Ω

■Nominal impedance biamp LF 8Ω

■Nominal impedance biamp HF 8Ω

■Transducer: CXCA3158-1CA

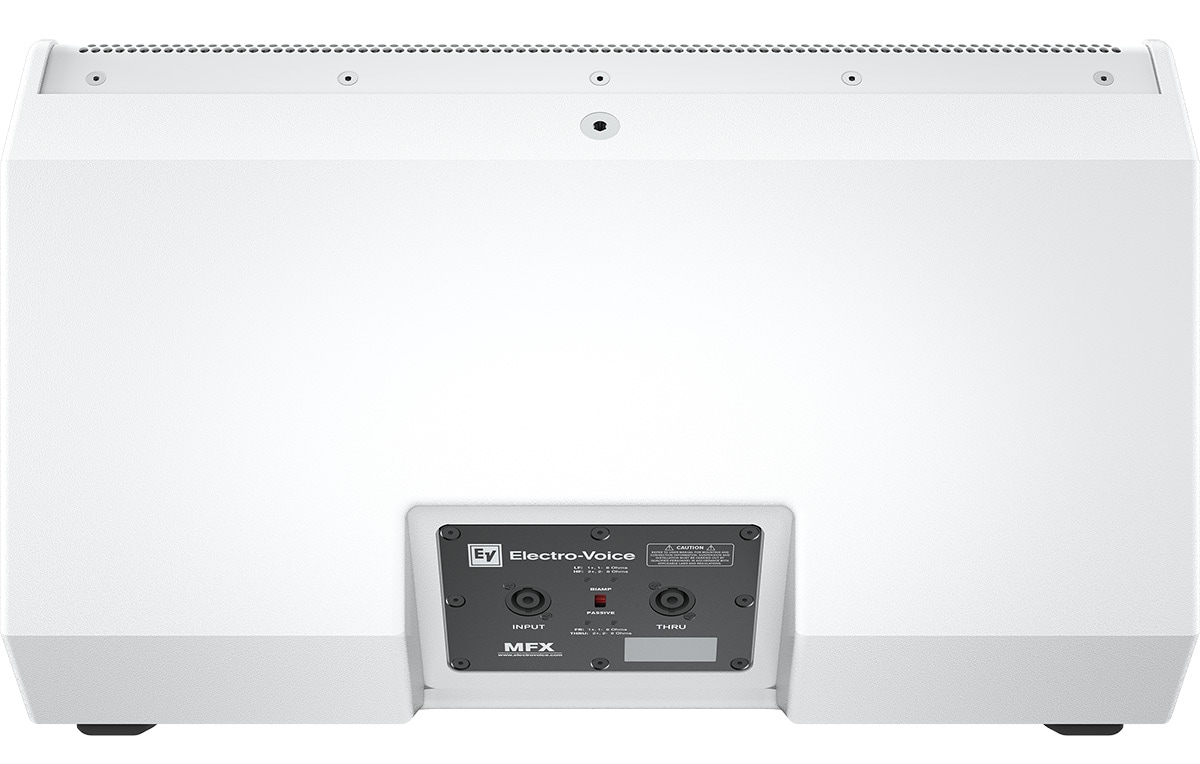

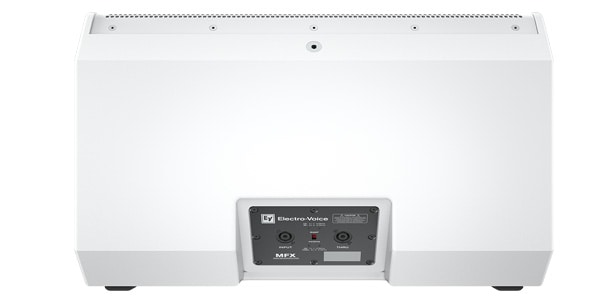

■Connector: Neutrik NL4 input with NL4 pass through

■Enclosure: 12-18-mm Baltic birch plywood with EVCoat

■Logo: Rotatable

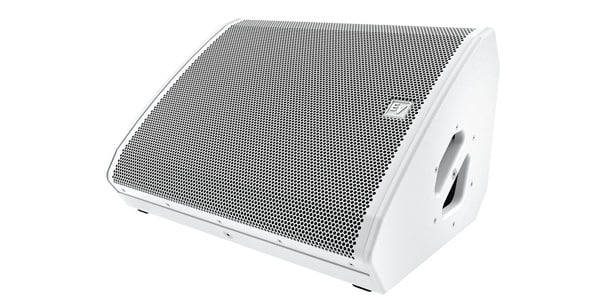

■Monitor Angle: 35° and 55°

■Grille: 1.5-mm zinc plated steel with corrosion-resistant coating

■Handles: Two handles with integrated cup for standard 35-mm pole

■Suspension: Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets, and a full range of mounting accessories

■Dimensions (H x W x D): 600 mm x 500 mm x 339 mm

~About the MFX Series~

■Made to do more: Electro-Voice launches MFX Multi-Function Monitors

? The MFX Multi-Function Monitors 12"" (MFX-12MC) and 15"" (MFX-15MC) are high-performance loudspeakers intended for stage monitoring and as main speakers for short-throw applications.

? High output, bi-amp or passive switching, and a compact size thanks to its coaxial design allow for versatile use.

* Complements sound systems in applications using X-Line Advance line array systems.

■Burnsville, MN (June 12, 2019) - The MFX multifunction monitors MFX-12MC and MFX-15MC, launched at InfoComm 2019, are high-performance loudspeakers compatible with X-Line Advance line array models X1, X2, and X12-128 systems.

The MFX multifunction monitors utilize high-output coaxially positioned HF and LF transducers, combined with an innovative new Electro-Voice engineering waveguide and a new crossover design. The monitor's directivity is 40°H x 60°V. The waveguide design interacts with the woofer to effectively create a bipolar output, enhancing directivity control at the midrange frequencies.

In addition to providing a stable sound image as performers move within the speaker's coverage area, the compact coaxial design is significantly smaller than competing high-end monitors, reducing the clutter perceived by the audience on stage. A new cabinet concept with dual monitor angles (35° and 55°) allows for precise output focusing on the performer.

The MFX multifunction monitors are optimized for use with Dynacord's DSP-integrated power amplifiers, EV's sister brand. Dynacord amplifiers can be deployed in passive or bi-amp configurations and optimized for various applications via the amplifier's DSP settings. The MFX-12MC has an output of 450 W (continuous) and 3000 W (peak). The MFX-15MC delivers 500 W (continuous) and 3500 W (peak). The maximum SPL ratings for each model are 135 dB and 136 dB, respectively.

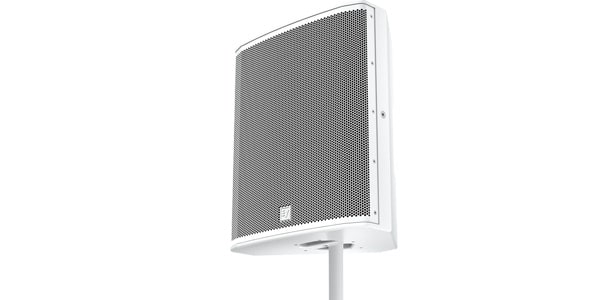

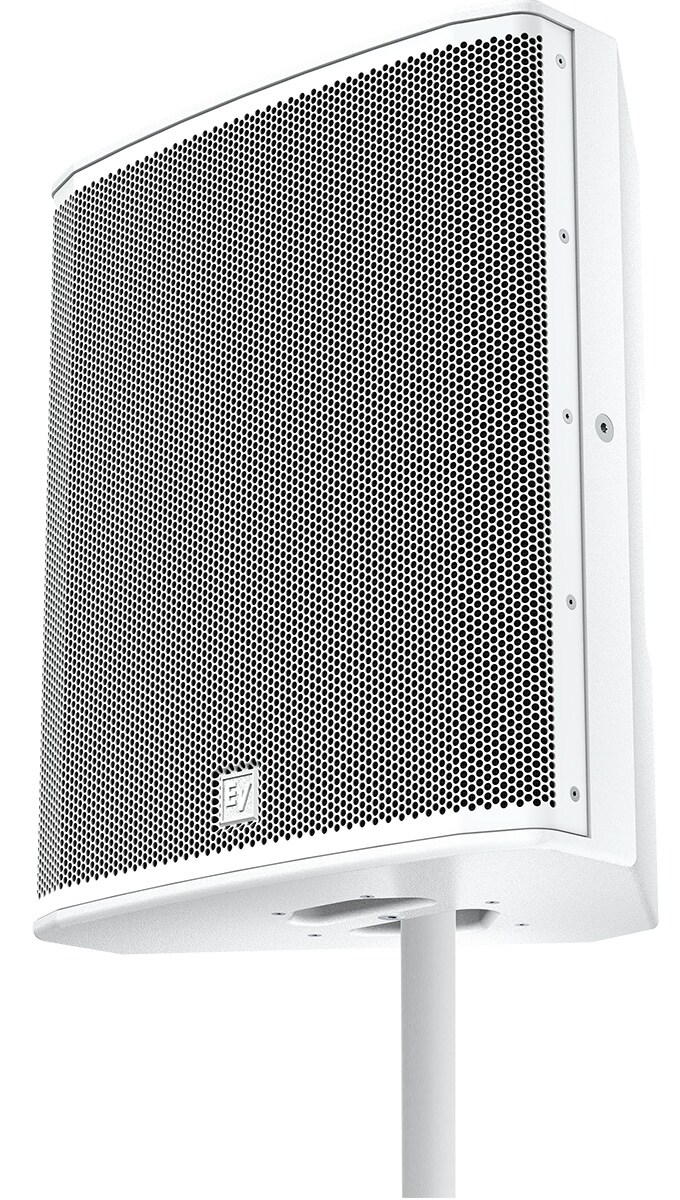

In addition to their primary functions as high-performance stage monitors, both the MFX-12MC and MFX-15MC feature integrated pole cups (equipped on both sides), allowing them to be mounted on stands in short-throw venues or used as subwoofers.

They offer full-range sound enhancement for portable applications using poles. The directivity angle can be rotated 90 degrees for use at 60° H x 40° V, and the structure is also suitable for installation, with each model featuring four M10 suspension points. Other accessories such as U-brackets, yokes, tilt adapters, truss clamps, stand mount adapters, and rigging bars are available for temporary or permanent installations. The robust EVCoat finish (available in black or white) and 1.5 mm thick grille combine professional-grade durability with a sleek design.

MFX multifunction monitors were developed to deliver professional performance and superior value in a best-in-class system. This includes sound companies providing sound systems for all types of live performances, including speech presentations, corporate events, and concerts. The speakers' versatility allows for deployment across multiple applications, making them a more attractive investment for companies involved in live sound.
