EMINENCE / XTC210-BT

The XTC210-BT is a blank cabinet for guitar amps for guitarists who want to get the sound they want. It can accommodate two 10-inch units.

■Blank cabinet for guitar amps
■For 2x10 inch
*Speaker unit sold separately.

3/4"", 13 ply, Void Free plywood
Black Tolex covering
Black Grill Cloth/Black Piping
Black Metal Corners

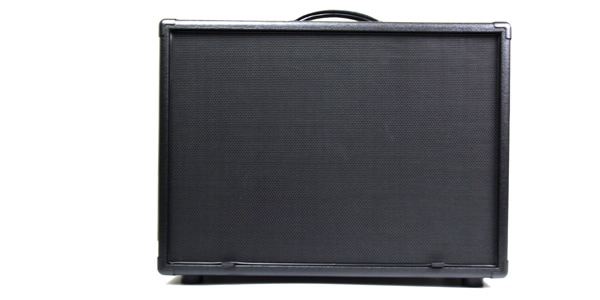

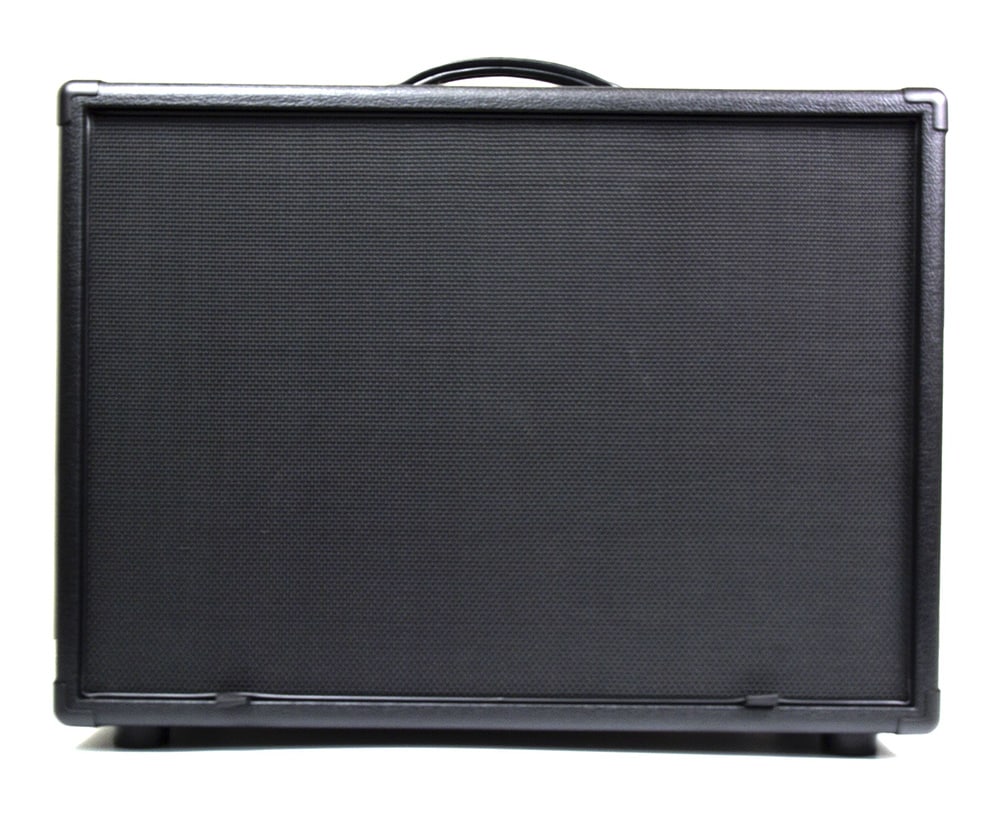

Removable Grill
Large Dog Bone BLACK LEATHER HANDLE

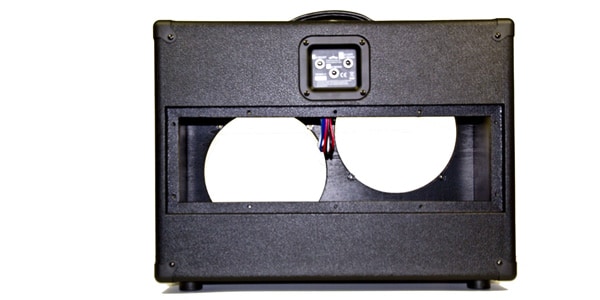

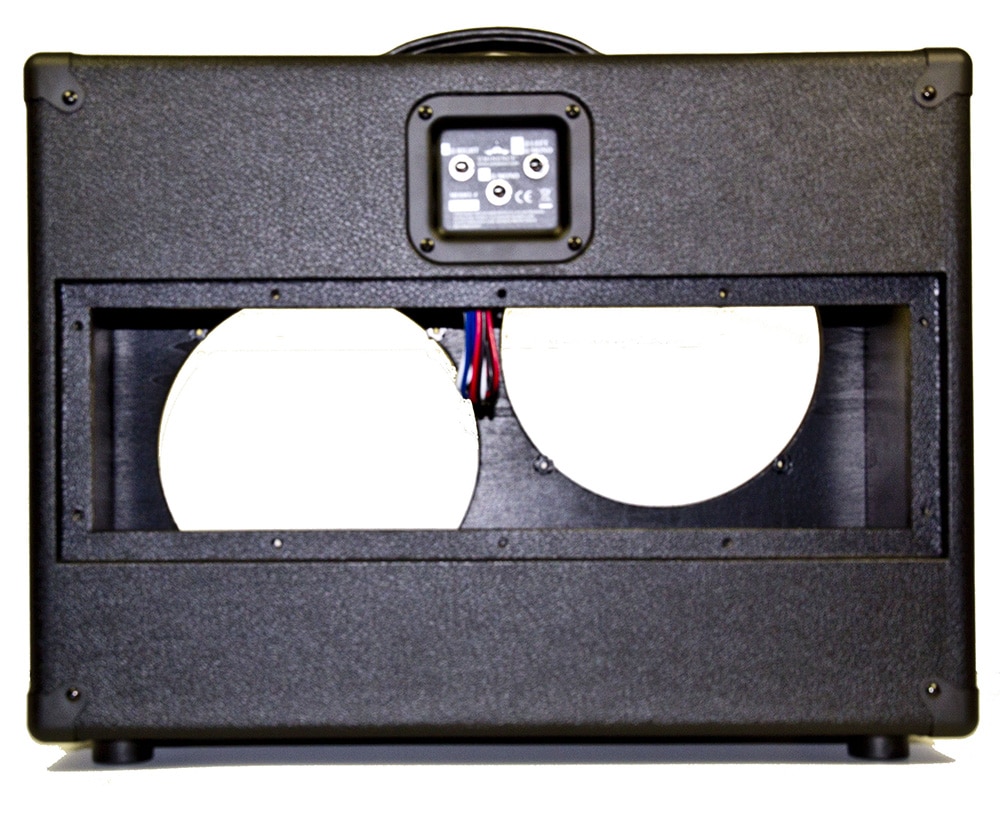

Convertible Design Cabinet: Open or Closed Back

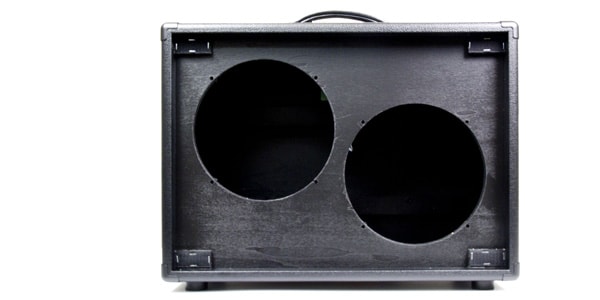

Front Mounting Speakers
Mounting Hole Centers: 9.6""
Speaker Cut Out: 9.2""
T-nuts
Three Jacks Left/Right/Mono
Choice of 2 different Mono impedance settings
Speakers in parallel or series
16 Gauge Wire/0.205 Fastons
Size: 22.8""L x 11.4""W x 16.6""H
25 lbs.

■Speaker Wiring
Connect the wiring cable coming out of the back panel as follows.
LEFT speaker positive (red) negative (black)
RIGHT speaker positive (white) negative (blue)

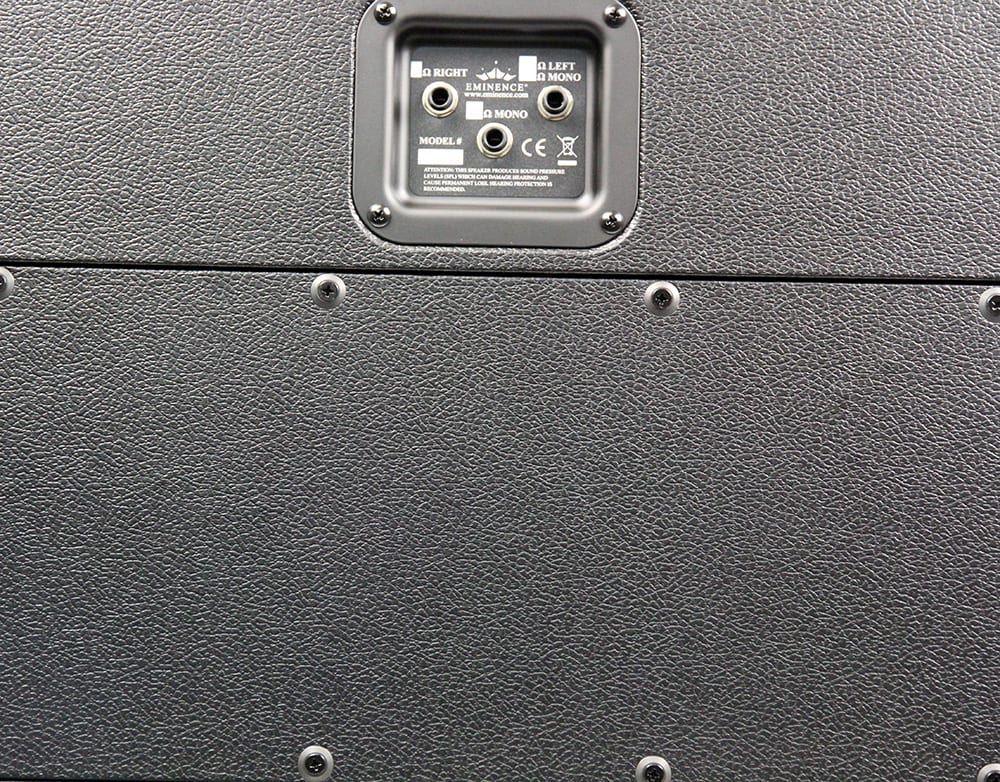

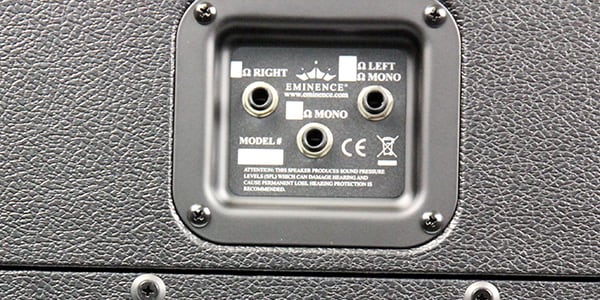

■Input jack description
・When only the top right (LEFT MONO) is used, both the left and right speakers will sound.
The impedance in this case will be half of the installed speaker. (Due to parallel connection)

・When only the top left (RIGHT) is used, only the right speaker will sound.
The impedance in this case will be the same as the installed speaker.

・When the top right (LEFT MONO) and top left (RIGHT) are used at the same time, each input signal will sound individually from each speaker.
In this case, the impedance will be the same as the installed speaker.

・When the bottom center (MONO) is used, both the left and right speakers will sound.
The impedance in this case will be the total impedance of the two installed speakers. (Due to series connection)
*When using the bottom center (MONO), do not connect anything to the other jacks.
