CLASSIC PRO / UPS1000PSII Uninterruptible Power Supply 3-unit set

The PSII series is a sine wave output UPS (uninterruptible power supply) equipped with an LCD display that lets you see usage at a glance. Equipped with AVR (voltage stabilization function), it uses a small, lightweight, energy-saving line interactive system that normally supplies power by correcting the voltage from commercial power through a transformer. It comes with power management software that allows you to set automatic PC shutdown during a power outage. The sine wave output allows you to back up not only your home PC but also your peripheral devices all at once.

■Great value 3-unit set

＜UPS (Uninterruptible Power Supply)＞
Nowadays, there are more and more opportunities to use a computer at work or at home. You will often create data for work or work connected to the Internet. In the music industry, a computer is essential for music production using DTM. The most frightening problem that can occur while working on a computer is a ""power outage."" Power outages that occur unexpectedly, including natural disasters such as typhoons and heavy rain, as well as breaker downs caused by using multiple home appliances at the same time, or man-made problems such as tripping over a cable and pulling out the plug, can not only cause the data you are working on to be lost, but also waste the time you spent creating it, and in the worst case, can even damage the computer itself. A UPS (Uninterruptible Power Supply) is a convenient device that provides power from a charged built-in battery at such times, saving data and ensuring the time it takes to safely shut down your computer.

There are two types of output waveforms during backup during a power outage: a block-shaped ""square wave"" and a wave-shaped ""sine wave."" The affordable square wave model (LX series) is compatible with most computers, but in rare cases it may not work with square waves, so you need to check whether the equipment you are using is compatible. The sine wave model (PSII series, UPS1000RT) has the same waveform as the power supplied from the outlet under normal conditions, and can back up peripheral devices such as hard disks and monitors in addition to computers, creating a safer power environment.

CLASSIC PRO UPS (uninterruptible power supply) has two operating methods: ""line interactive method"" and ""constant inverter method."" The line interactive method (LX series, PSII series) has the advantages of being small, lightweight, and energy-saving, and supplies power as is under normal conditions, and if voltage fluctuations exceed a certain range, the AVR (automatic voltage compensation function) can supply a stable output. The constant inverter method (UPS1000RT) allows the power to be supplied at a constant voltage and frequency by passing it through an inverter both under normal conditions and during power outages. It also supports momentary power outages (instantaneous power outages), making it a recommended power backup tool that is safe for equipment with strict power specifications.
There are five models in the lineup, with different output waveforms during power outages, operation methods, and battery capacities, so you can choose the one that best suits your needs.

■Uninterruptible power supply (UPS)
■Line interactive
■Sine wave output
■1000VA
■Voltage mode switchable
■EMI/RFI noise filter included
■Number of output outlets: 6


■Power factor (PF) is 0.8. (PS series is 0.6)
■Cooling fan included. (PS series does not include this)
■AC breaker included. (PS series has glass fuse)
■In addition to input and output voltage, temperature, load (W, VA), and battery voltage can be checked on the LCD display.
■The following settings can be made for the PSII series.
・Output voltage range setting: 100/110/115/120V
・Various voltage settings: fast charge voltage, trickle charge voltage, battery low voltage alarm, battery discharge voltage
・Energy saving mode ON/OFF
・Automatic shutdown ON/OFF when no load, load percentage (%), time until shutdown
・AC automatic start setting ON/OFF

＜Specifications＞
■DC input
Rated voltage: 24V
DC input range: 20-30V
■AC input
Bypass mode (output voltage will be 0V if the upper limit is exceeded)
0-121V (100V)
0-132V (110V)
0-138V (115V)
0-144V (120V)
Normal mode (switches to battery mode if the range is exceeded)
70-130V (100V)
80-140V (110V)
85-145V (115V)
90-150V (120V)
Frequency range
　　50Hz/60Hz (auto-detection)
　　±5% to ±15%, default value: ±5%

■AC output
　Battery mode
　　100/110/115/120V±5%
　Bypass mode
　　0-121V (100V)
　　0-132V (110V)
　　0-138V (115V)
　　0-144V (120V)
　Normal mode
　　90-110V (100V)
　　99-121V (110V)
　　103-126V (115V)
　　108-132V (120V)
　Frequency range
　　50Hz/60Hz±0.3Hz
　Waveform Sine wave
　Capacity 1000VA
　Allowable power 800W
　Power factor 0.8
　Inverter output efficiency Maximum 80%
Transfer time ≦10ms
Protections Overload, short circuit, low battery voltage, battery, overcharge, overheat
Time to bypass mode when overloaded (normal mode)
110% 120 seconds, 125% 60 seconds, 150% 10 seconds
Time to shut down when overloaded (battery mode)
105% 300 seconds, 110% 60 seconds, 125% 10 seconds, 150% 0.7 seconds
Alarm Automatic stop after 60 seconds, or manual stop
■Battery
Capacity 12V/7AH (UPSB7AH) x 2
Charging current 1A-5A, default value: 1A
Quick charging voltage 13.6-15.0V, default value: 14.1V
Trickle charging voltage 13.2-14.6V, default value: 13.5V
Low voltage alarm point 9.6-13.0V, default value: 10.8V
Low voltage shutdown point 9.6-11.5V, default value: 10.2V

■Alarm
ON/OFF 0.5 seconds
Battery low voltage 0.16 seconds, 0.16 seconds interval
Overload 2 seconds, 0.5 seconds interval
Power abnormality 0.32 seconds, 0.5 seconds interval

■Other
Interface LCD & buzzer
Operating temperature 5-40℃
Operating humidity ≦93%
Cooling Fan
Dimensions (W×H×D mm) 144×215×345
Weight 12.2kg
Power cable: 3 pins

■UPS power consumption: Approximately 30W

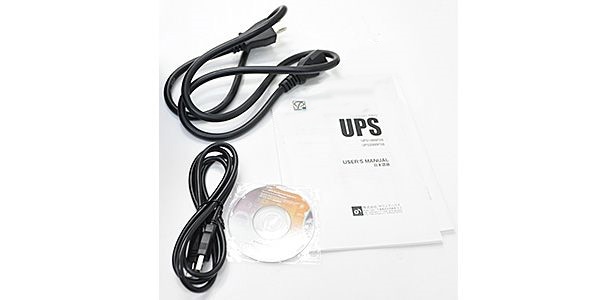

■Power management software: ""UPSmart"" included
Download the software here

- Automatically shut down the PC during a power outage

- UPS status monitoring function

- Automatically save files during a power outage

- Schedule function

- Email notification function

■ Supported OS: Windows 95, 98, NT, 2000, 2003, 2008, 2012, Me, XP, Vista, 7, 8, 10

* The version of the included CD-ROM is compatible with Windows 8. The latest version compatible with Windows 10 can be downloaded from ""Download the software here"".

* Please perform a function test beforehand to check the operation of the file saving function. We do not guarantee that the file will be saved.

* There may be a slight difference between the values ​​displayed on the management software and the values ​​displayed on the UPS LCD display. The LCD display is the correct value.

* If multiple PCs are connected to the OUTPUT, the software can only control the UPS connected via USB.

● Disposal of the battery
If you send it to us, we will dispose of it. Please write ""I would like to dispose of the battery"" in the margin of the shipping label before sending it.
Address: Sound House Co., Ltd. 14-3 Shinizumi, Narita City, Chiba Prefecture, 286-0825
*Please note that shipping costs will be borne by the customer.

*UPS is for PCs and PC peripherals only.
*It is not recommended as a backup power source for audio equipment.
