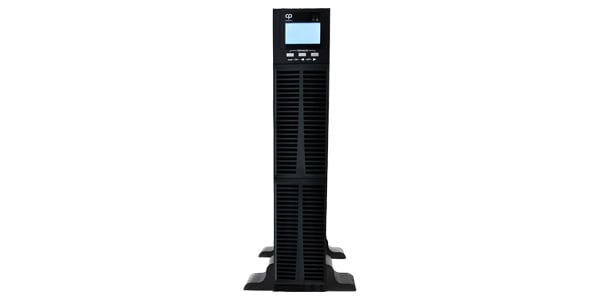

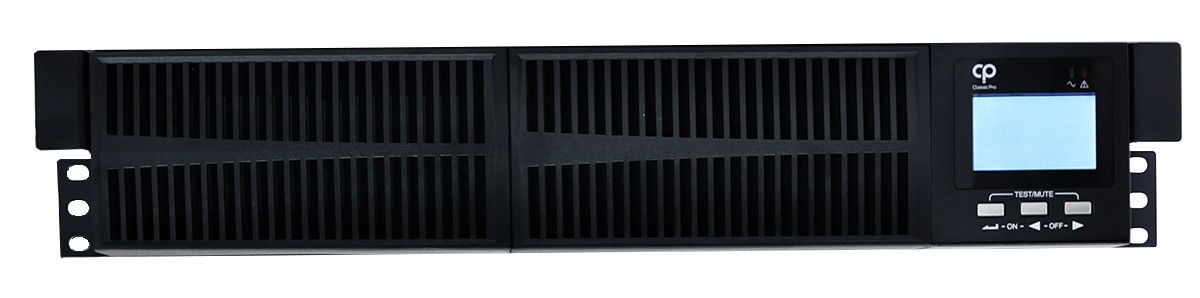

CLASSIC PRO / UPS2000IIRT

The UPS2000IIRT is the top-of-the-line UPS (uninterruptible power supply) model that uses a constant inverter power supply system. By using an inverter both during normal operation and during power outages, it can supply power at a stable frequency and voltage, and is 100% compatible with momentary power outages. It is recommended not only for backing up home PCs, but also for peripheral devices that are sensitive to power. In the event of a power outage or other power failure, you can also set the PC to automatically shut down by using the included power management software.

The UPS2000IIRT is the top-of-the-line UPS (uninterruptible power supply) model that uses a constant inverter power supply system. By using an inverter during normal times and during power outages, it can supply power at a stable frequency and voltage, and is 100% compatible with momentary power outages. It is recommended not only for backing up home PCs, but also for peripheral devices that are sensitive to power. In the event of a power outage or other power failure, you can set the PC to automatically shut down by using the included power management software.


Nowadays, there are more opportunities to use computers at work and at home. There are many cases of creating data at work and working while connected to the Internet. In the music industry, computers are essential for music production using DTM. The most frightening problem that can occur while working on a computer is a ""power outage."" Not only are they caused by natural disasters such as typhoons and heavy rain, but they can also be caused by human factors such as breaker down due to the simultaneous use of multiple home appliances or tripping over a cable and pulling out the plug. Sudden power problems that occur not only cause the data you are working on to be lost, but also waste the time you spent creating it, and in the worst case scenario, can even damage the computer itself. UPS (Uninterruptible Power Supply) is a convenient device that supplies power from a charged built-in battery in such a case, saving data and ensuring time to shut down the computer safely.

There are two types of output waveforms during backup during a power outage: a block-shaped ""square wave"" and a wave-shaped ""sine wave"". The affordable square wave model (LX series) is compatible with most computers, but in rare cases it may not work with a square wave, so you need to check whether the equipment you are using is compatible. The sine wave model (PSII series, UPS1000IIRT) has the same waveform as the power supplied from the outlet under normal conditions, and can back up peripheral devices such as hard disks and monitors in addition to computers, creating a safer power environment.

CLASSIC PRO UPS (Uninterruptible Power Supply) has two operating methods: ""line interactive method"" and ""constant inverter method"". The line interactive type (LX series, PSII series) has the advantages of being small, lightweight, and energy-saving. It supplies power as is under normal circumstances, but if voltage fluctuations exceed a certain range, the AVR (automatic voltage compensation function) can provide a stable output. The constant inverter type (UPSIIRT series) can supply power at a constant stable voltage and frequency by passing it through an inverter during both normal and power outages. It also supports momentary power outages, making it a recommended power backup tool that is safe for devices with strict power specifications.

There are five models in the lineup, based on output waveforms during power outages, operation methods, and battery capacities, so you can choose the one that best suits your needs.

[Specifications]
■Rated capacity: 2 kVA / 1620W
Input
■Rated input voltage (AC): 100 V / 110 V / 115 V / 120 V
■Rated input frequency: 50 Hz / 60 Hz (automatic)
■Input voltage range:

50 ~ 80V (linear power drop from 50% load to 100% load)

80 ~ 150V (no power drop)
■Input frequency range: 40~70 Hz
■PFC: ≧0.99
■THDI: ≦6%
■Bypass voltage range: -25% ~ +15%
Output
■Output voltage (AC): 100 V / 110 V / 115 V / 120 V (configurable)
■Voltage accuracy: ± 1%
■Power factor: 0.81
■Inverter overload function
108%~127% load: Switch to bypass mode in at least 1 minute
127% ~ 150% load: Switch to bypass mode in 30 seconds
> Load 150% or more: Switch to bypass mode in 100ms
■Switch time from main mode to BAT battery mode: 0 ms
■Switch time from main mode to bypass: 4 ms
■Output frequency
Line mode: Same as input frequency
BAT mode: (50 / 60 ± 0.1) Hz
■Total voltage harmonic distortion: ≦2% or less (linear load), ≦5% or less (non-linear load)
Battery
■Battery type: Sealed lead-acid battery
■DC voltage: 48 V
■Built-in battery: 12 V / 9 Ah x 4
■Charger output voltage: 54.2V± 0.4V
■Charging time: Approximately 90% capacity is restored in 3 hours
■Charging current (max): 1 A
System control and communication
■Protection: overheat protection, fan test protection, overload protection, output short circuit protection, battery discharge protection

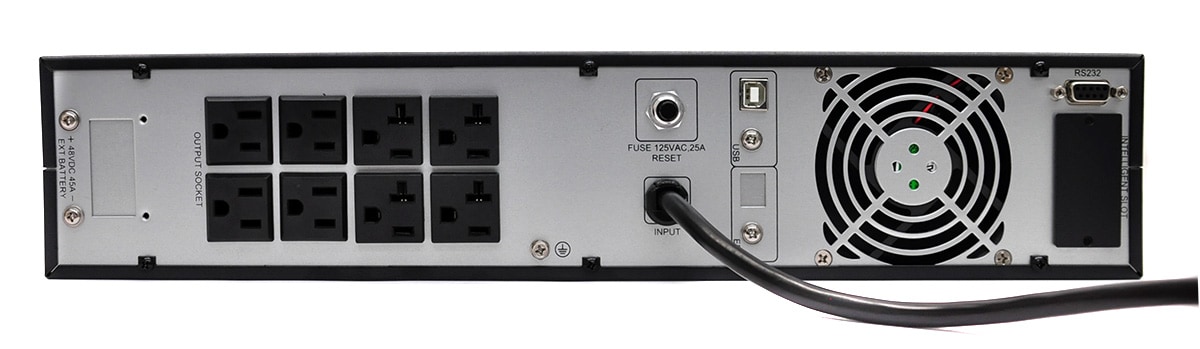

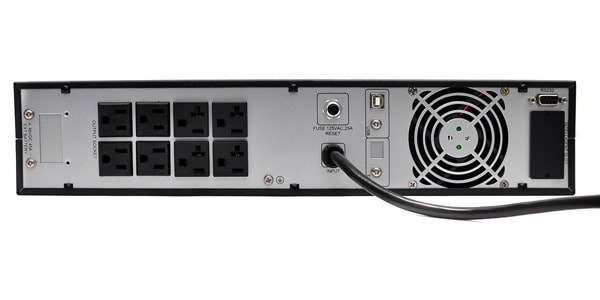

■Communication port: USB, RS232

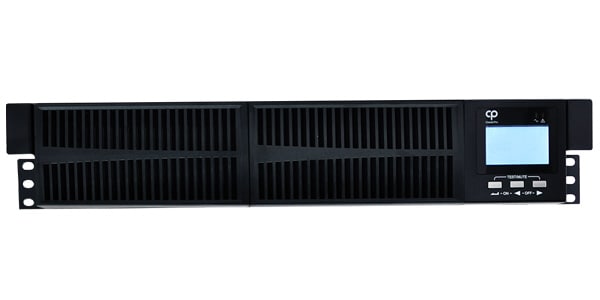

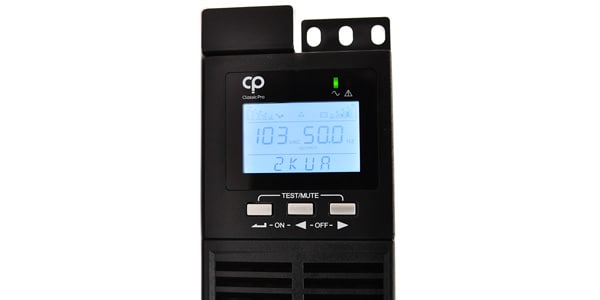

■Display: LCD+LED
Operating environment
■Operating humidity: 0 ~ 95 % RH @ 0 ~ 40°C (non-condensing)
■Storage temperature: -25°C to 55°C (excluding battery)
■Operating altitude: ≦ 1000m, 1% decrease per 100m above 1000m
■Protection rating: IP20
■Noise level: ≦ 50dB or less (at 1m)
Other
■Dimensions (mm) W x D x H: 440 x 469 x 88 (2U)
■Weight (kg): 19.8
■Power cable: 3-pin, 120cm

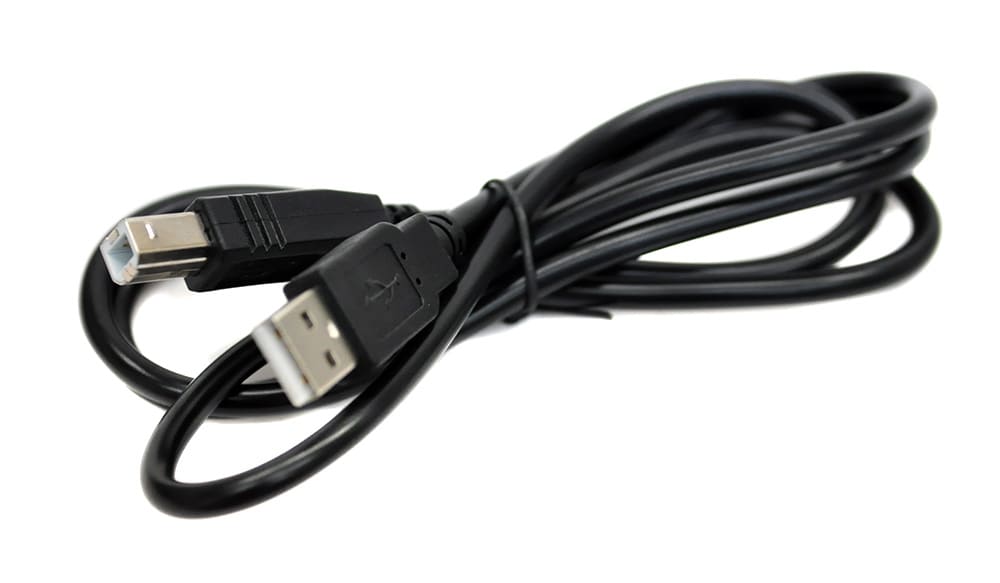

■Accessories: USB cable (110cm), bracket for stationary installation

Power management software: UPSmart (download)
■Supported OS: Windows 95, 98, NT, 2000, 2003, 2008, 2012, Me, XP, Vista, 7, 8, 10
*The version of the included CD-ROM is compatible with Windows 8. The latest version compatible with Windows 10 can be downloaded from ""Download the software here"".

■UPS management software
Download the software here
1. Automatically shuts down the PC during a power outage
2. Function to monitor the UPS status
3. Function to automatically save files being worked on when the UPS is activated
4. Email notification function
*Please verify the operation of the file saving function in advance. Operation may differ depending on the application being executed and whether an existing file is opened or a new file is created. In addition, we do not guarantee that files will be saved.
*If multiple PCs are connected to the OUTPUT, the UPS that can be controlled by the software will only be the one connected via USB.

Regarding battery replacement
If you send it to us, we will dispose of it. Please write ""I would like to dispose of the battery"" in the margin of the shipping label before sending it.
Address: Sound House Co., Ltd. 14-3 Shinizumi, Narita City, Chiba Prefecture, 286-0825
*Please note that shipping costs will be borne by the customer.

*The cooling fan runs constantly, so a certain amount of fan noise will be generated. Please be careful when using it in a strict quiet environment such as recording.

*The UPS is for PCs and PC peripherals only.
*It is not recommended as a backup power source for audio equipment.
*The rack mount bracket is for storing it in a 2U rack case required for moving it.

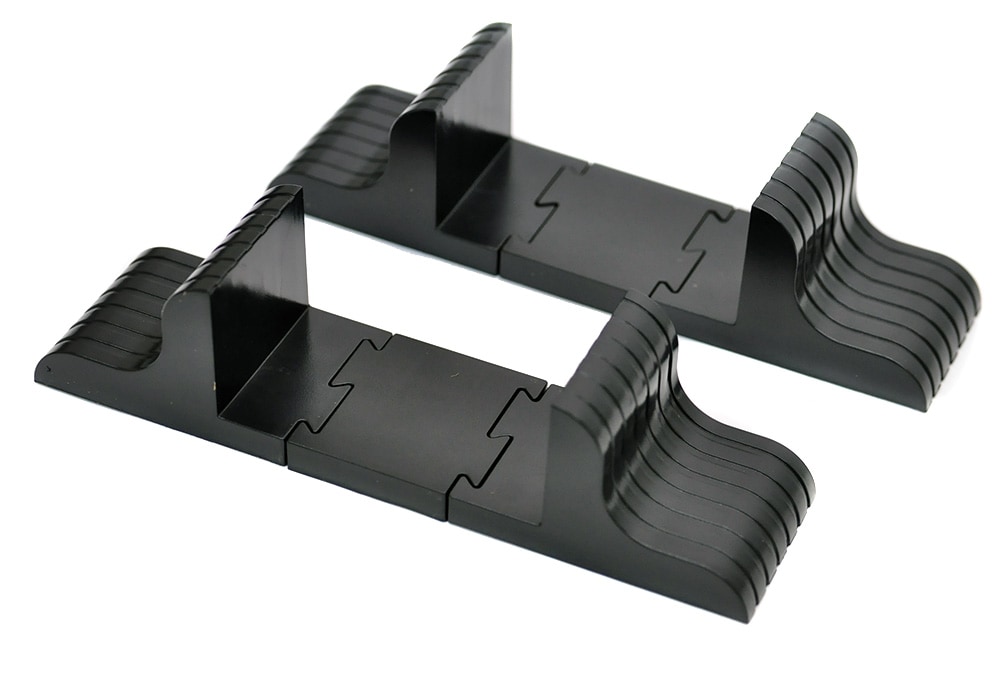

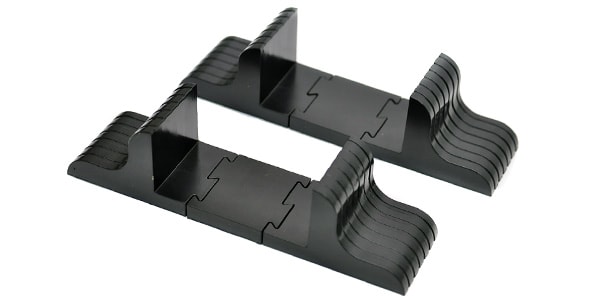

*Please use the included stand and use it in a stationary position.
