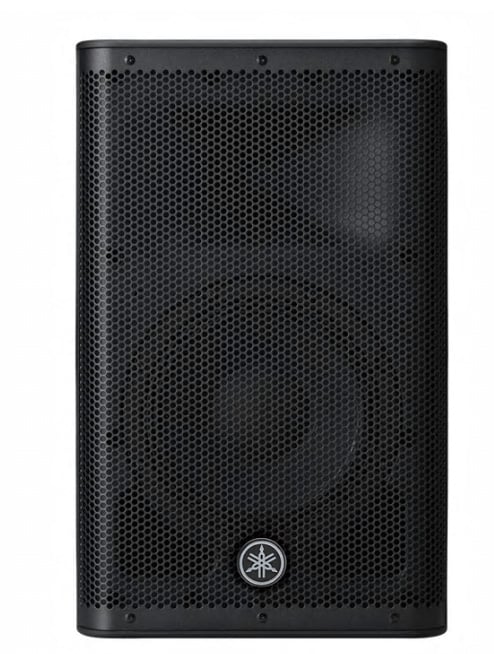

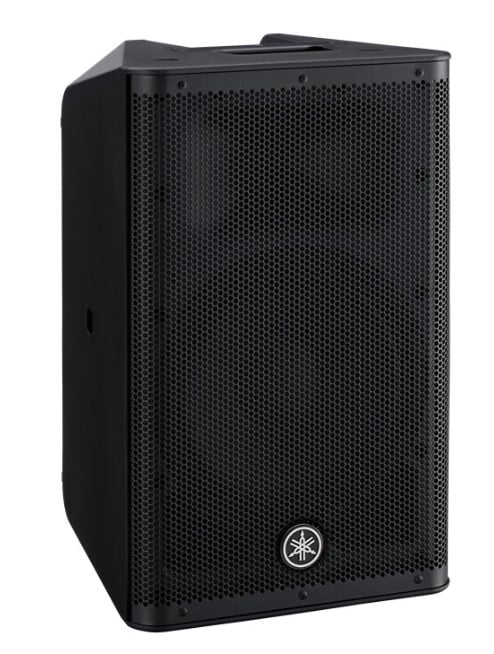

YAMAHA / DXR10mkII Powered speaker

DXR10mkIIはYAMAHAのPAスピーカー。ポータブルでありながら、最大音圧レベルは132dBSPLを実現。シンプルなヴォーカル/楽器演奏用として、また強力なフロアモニターとして最適です。

■ 2-way bi-amp powered speaker, bass reflex type
■ Reproduction frequency band (-10dB): 56Hz-20kHz
■ Nominal directivity angle
Horizontal: 90 °
Vertical: 60 °
■ Component
LF: 10" cone, 2" voice coil, ferrite magnet
HF: 1.75" voice coil, 1" throat compression driver, neodymium magnet
■ Crossover frequency: 2.3kHz, FIR-X tuning? (Linear phase FIR filter)
Output: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
■ Maximum output sound pressure (actual measurement value, 1m): 132dB SPL

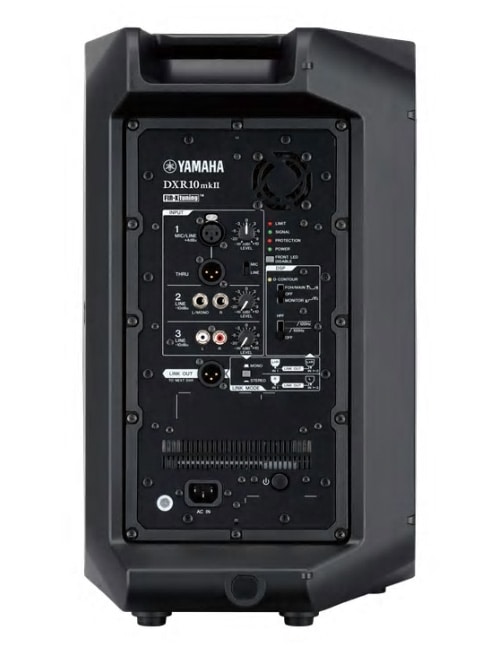

■ Input / output connectors: INPUT: XLR-3-31 x1, INPUT2: Phone x2, INPUT3: RCA PIN x2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
■ Processor: D-CONTOUR: FOH / MAIN, MONITOR, OFF
■ Power supply voltage: 100V-240V, 50Hz / 60Hz
■ Power consumption: 90W
■ Points for hanging brackets: 2 (top), 1 (rear) * M8 x 15mm for eye-bolts
■ Pole mount socket: 35mm, 2 ways (0 ° or 7 °)
■ Dimensions:
Width: 305mm (12")
Height: 502mm (19 6/8")
Depth: 310mm (12 2/8")
■ Weight: 13.9kg (30.6lbs)
■ Optional accessories: UB-DXR10 (U bracket), SPCVR1001 (multifunctional speaker cover)
■ Enclosure material: ABS (mat finish, black)
