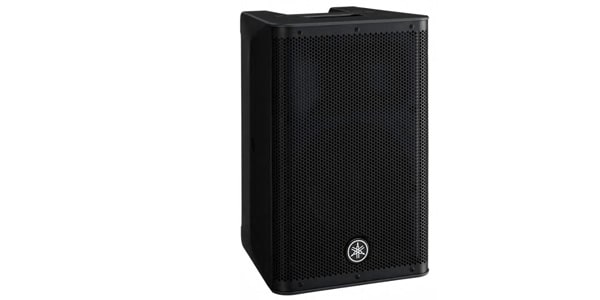

YAMAHA / DXR8mkII Powered speaker

DXR8mkIIはYAMAHAのPAスピーカー。大口径モデルと同等の最大1100Wの出力を最大限に活かし、卓越した分解能と高出力を両立。DXSサブウーファーと組合わせることで、コンパクトかつ高出力なメインSRシステムを構築可能。

■ 2-way bi-amp powered speaker, bass reflex type
■ Reproduction frequency band (-10dB): 57Hz-20kHz
■ Nominal directivity angle
Horizontal: 90 °
Vertical: 60 °
■ Component
LF: 8" cone, 2" voice coil, ferrite magnet
HF: 1.75" voice coil, 1" throat compression driver, neodymium magnet
■ Crossover frequency: 2.3kHz, FIR-X tuning (Linear phase FIR filter)
Output: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
■ Maximum output sound pressure (actual measurement value, 1m): 130dB SPL

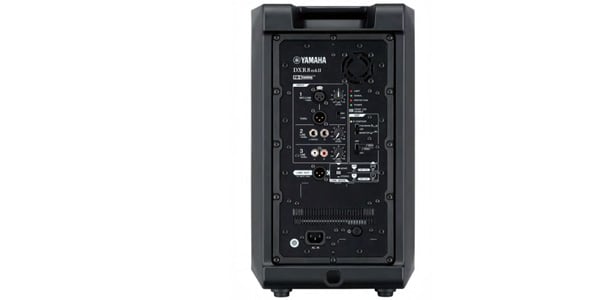

■ Input / output connectors: INPUT: XLR-3-31 x1, INPUT2: Phone x2, INPUT3: RCA PIN x2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
■ Processor: D-CONTOUR: FOH / MAIN, MONITOR, OFF
■ Power supply voltage: 100V-240V, 50Hz / 60Hz
■ Power consumption: 90W
■ Points for hanging brackets: 2 (top), 1 (rear) * M8 x 15mm for eye-bolts
■ Pole mount socket: 35mm, 2 ways (0 ° or 7 °)
■ Dimensions:
Width: 280mm (11")
Height: 458mm (18")
Depth: 280mm (11")
■ Weight: 12.8kg (28.2lbs)
■ Optional accessories: UB-DXR8 (U bracket), SPCVR0801 (multifunctional speaker cover)
■ Enclosure material: ABS (mat finish, black)
