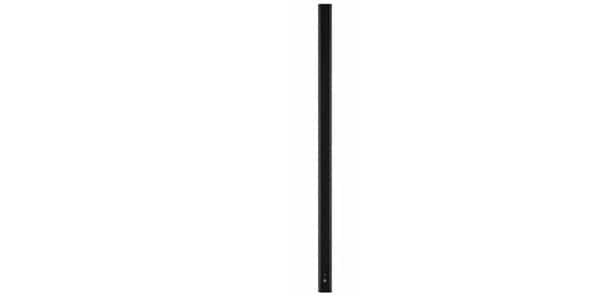

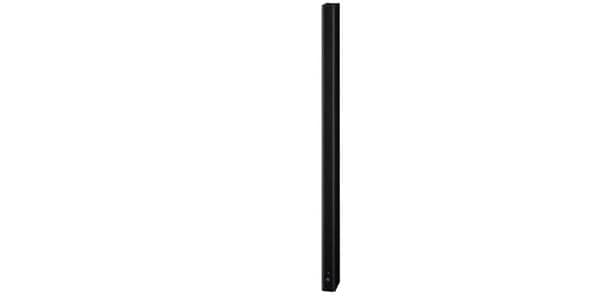

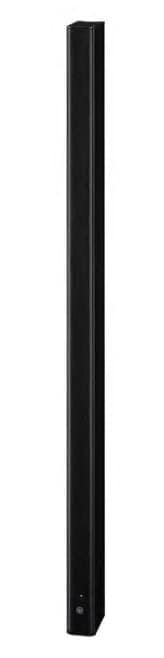

YAMAHA / VXL1B16-P

VXL1B16-Pはラインアレイスピーカー。ネオジム磁石を使用した1.5インチ・フルレンジユニットを搭載。水平170°の指向角により広いエリアをカバー。本体付属のマウンティングブラケットにより壁面への設置が可能。

■ Line array speaker
■ Powered
■ 1.5" x 16
■ 15W
■ One piece
■ Black
■ Dante / PoE compatible model

＜Specifications＞
■ Full range, Bass reflex type
■ Reproduction frequency band (-10dB): 80Hz-20kHz
Nominal directivity angle (horizontal x vertical) (-6dB)
Horizontal: 170 °
Vertical: 25 ° (+ 12.5 ° -12.5 °)
■ Practical directional angle (horizontal x vertical) (-10dB)
Horizontal: 180 °
Vertical: 30 ° (+ 15 ° -15 °)
■ Maximum output level (peak) IEC noise @ 1m: 102 dB SPL (for PoE + (IEEE 802.3at))
■ Power amplifier
Rated output
Dynamic: 15W (PoE + (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
Continuous: 15W (PoE + (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
■ Cooling method: Natural air cooling
■ Connector: RJ-45 (Dante) x1
■ Power supply voltage: PoE + (IEEE 802.3at), PoE (IEEE 802.3af)
■ Power consumption:
Idle 3W
1/8 output (Pink Noise) 6W (PoE + (IEEE 802.3at)), 4.3W (PoE (IEEE 802.3af))

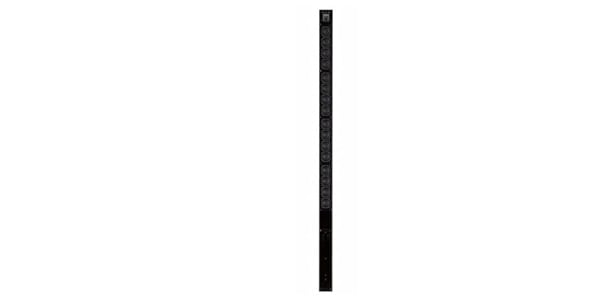

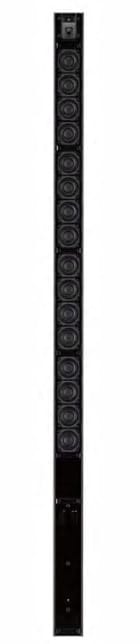

■ Components: 1.5" (3.75cm) Cone x 16
■ Magnetic shield specification: Non-magnetic shield type
■ Dustproof and waterproof performance: Not supported
■ Dimensions (W × H × D) and weight:
(Speaker body only): W54xH1120xD104mm, 5.0kg

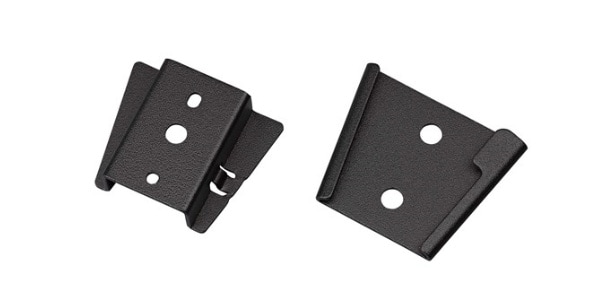

(Included items): Mounting bracket x2, bracket base x2, safety wire x1, machine screws (M5 x 10) x2, template x1, instruction manual
■ Sales unit: 1 unit
■ Option: WMB-L1B, HCB-L1B
