YAMAHA / VXL1W-16

YAMAHA / VXL1W-16

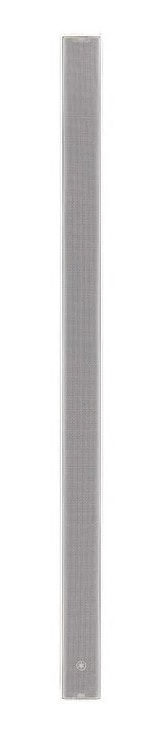

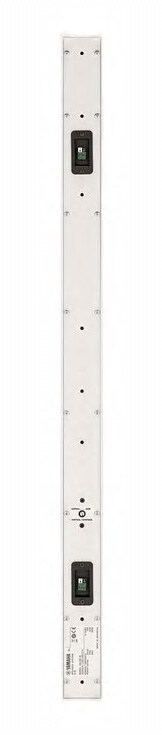

  • YAMAHA / VXL1W-16画像1
  • YAMAHA / VXL1W-16画像2
  • YAMAHA / VXL1W-16画像3
  • YAMAHA / VXL1W-16画像4
  • YAMAHA / VXL1W-16画像5
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual
■ Line array speaker
■ 1.5" x 16
■ 160W
■ 12Ω
■ One piece
■ White

<Specifications>
■ Model Full range
■ Bass reflex type
■ Reproduction frequency band (-10dB) * 1: 81Hz-20kHz (108Hz-20kHz: with port cover attached)
■ Nominal directivity angle (-6dB) * 2:
Horizontal: 170 °
Vertical: NORMAL: 25 ° (12.5 ° -12.5 °), WIDE: 30 ° (+ 12.5 ° -7.5 °)
■ Practical directional angle (-10dB) * 2:
Horizontal: 180 °
Vertical: NORMAL: 30 ° (+ 15 ° -15 °), WIDE: 45 ° (+ 15 °- -30 °)
■ Rated impedance Lo-Z: 12Ω
■ Allowable input
NOISE: 80 W
PGM: 160 W
MAX: 320 W
■ Output sound pressure level (1W / 1m) * 1 * 3: 91 dB SPL (90dB SPL: with port cover attached)
■ Maximum output level * 4: 116 dB SPL
■ Component: 1.5" cone x16
■ Connector: Euroblock (2-pin) × 2 (Input: +/-)
■ Dustproof and waterproof performance: IP34 (IP35: with port cover attached)
■ White (Munsell approximation: N9)
■ Dimensions (W × H × D) and weight:
(Speaker body only) W54xH846xD104mm, 3.9kg

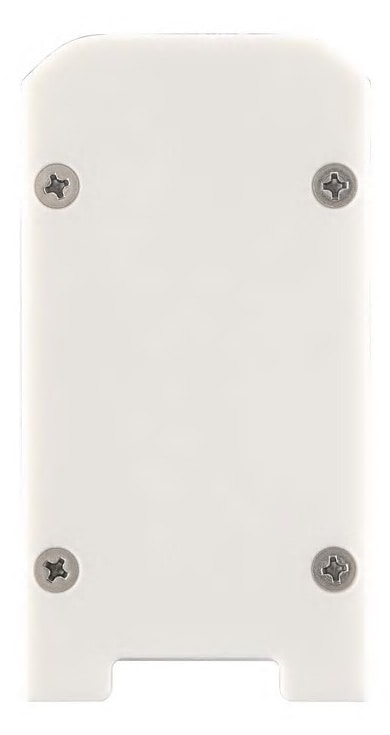

■ Accessories: mounting bracket x2, bracket base x2, safety wire x1, terminal cover x2, body mounting screws x2, port cover x1
■ One piece
■ Options: WMB-L1W, VCB-L1B, VCSB-L1W, HCB-L1B, ST-L1W

関連商品

レビューを投稿するWrite a Review

  • この商品のレビューを書くWrite a Review

YAMAHA (ヤマハ)
VXL1W-16

Item ID:261355

58,000 yen(excl. tax)

(63,800 yen incl. tax)
