VITAL AUDIO / VAR8

The POWER CARRIER VA-R8 is a power supply dedicated to effectors. It has 8 DC output ports, a USB out port, and a large charging capacity of 8000mAh. All ports are isolated to reduce noise interference between ports.

■Rechargeable power supply
■Fully isolated type

■Main specifications of POWER CARRIER VA-R8
・Rechargeable all-isolated power supply
・Built-in large-capacity 8000mAh battery
・Estimated operating time: If you use 2 pedals with a current consumption of 200mA x 2 and 6 pedals with a current consumption of 100mA x 6, you can use 8000mAh ÷ (200mA x 2 + 100mA x 6) = 8 hours.
*The above calculation is an estimate, so the operating time will change depending on the usage environment and the degree of heat generation.

・Charging time:
- Included 12V / 2000mA adapter: Approximately 2 to 3 hours
- Optional USB output 5V / 2A adapter: Approximately 5 to 6 hours
- Optional USB output 5V / 1A adapter: Approximately 10 hours
*The above charging times are estimates. Charging times will vary depending on the charging environment and the quality of the adapter.

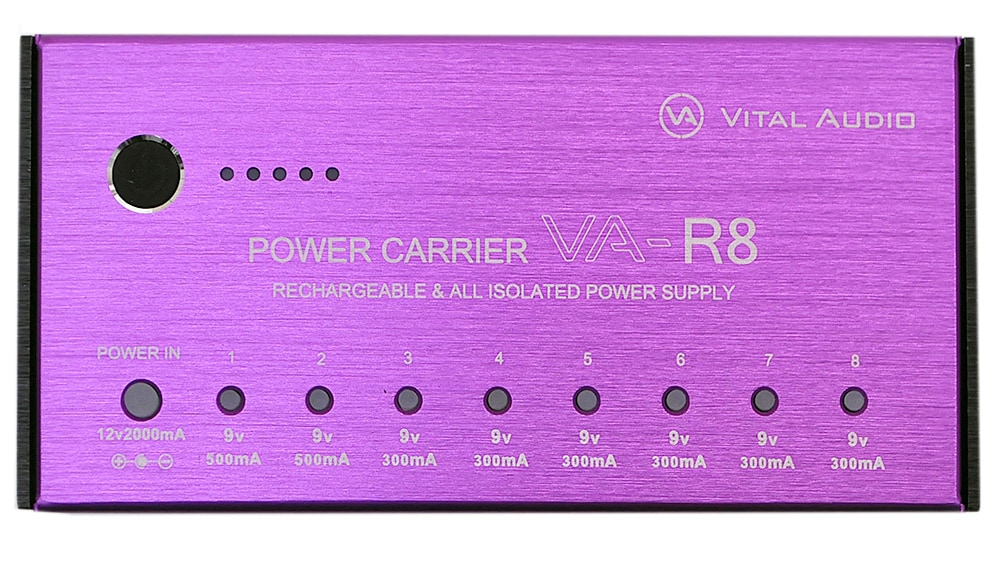

- Equipped with 2 x 9V / 500mA (Max) ports, 6 x 9V / 300mA (Max) ports
(The current amount indicated is the maximum value)

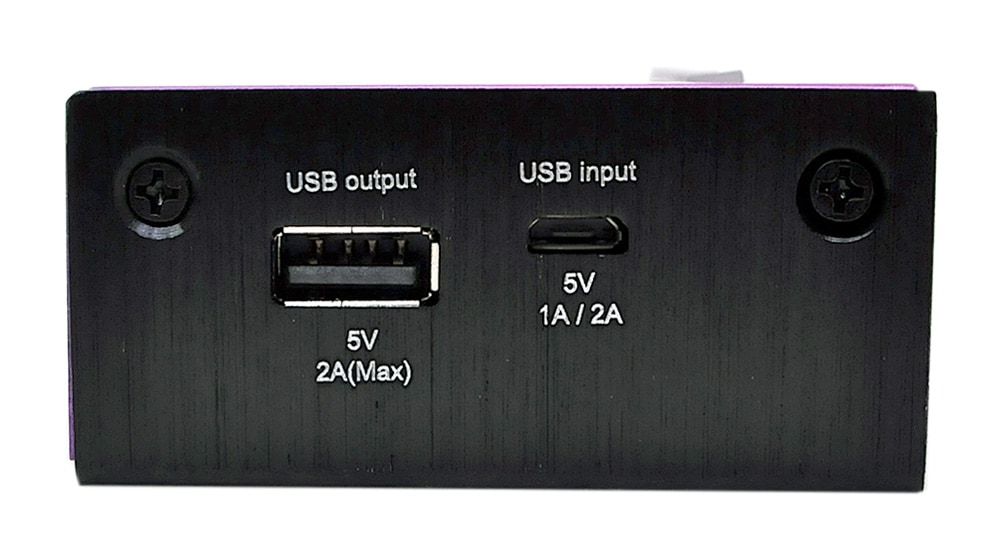

- Equipped with 5V / 2A (Max) USB output
- Charging is possible via 5V / 1A or 2A Micro USB input (can only be used for charging)
- All ports are isolated

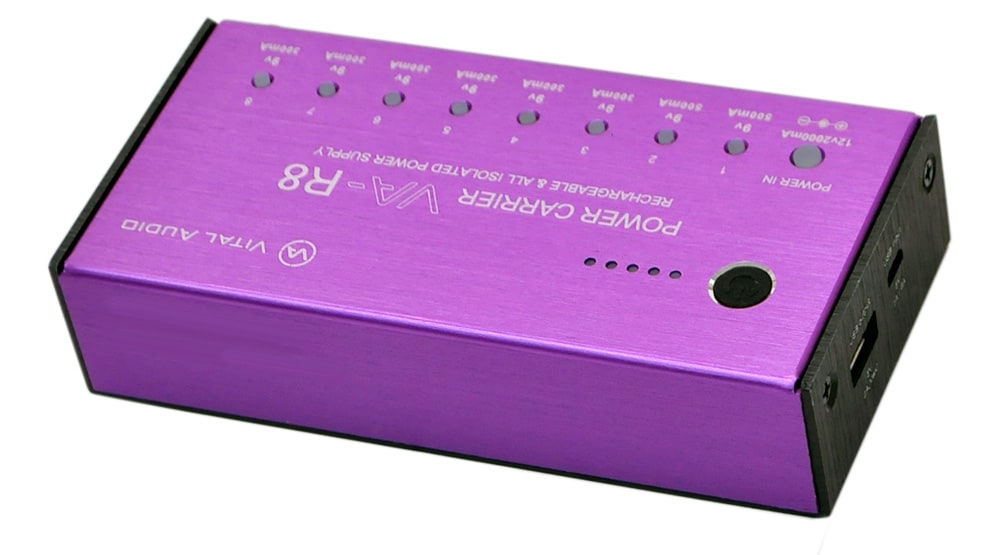

- Luxurious machined aluminum housing
- DC cable (60cm S / L) x 8 included
- 1 Y cable for voltage boost included (plug type: straight / straight x 2)
* By using the Y cable for boosting, you can use even higher voltage effects at the same time
- 1 USB output cable (30cm USB-A / Micro USB) included
- 12V 2A AC adapter included
- Stable operating environment achieved by short circuit protection circuit
- Each output port is equipped with an LED light, and the green LED lights up when the port is in use. A red LED will light up on the port where a problem has occurred. If the pedal on the shorted port is not removed, the VA-R8 will enter self-protection mode and restart once every two seconds. FCLS (Foldback Current Limiting Circuit) provides the ultimate protection against power shortages and overloads. External dimensions: 140 (W) x 70 (D) x 30 (H) mm. Weight: 238 g.
