VITAL AUDIO / POWER CARRIER VA-12

VITAL AUDIO's popular VA-08 MK2 POWER CARRIER VA-12 power supply with all-isolated structure expanded to 12 ports. 9 9V ports, three 9/12/18V variable ports, for more effectors.

■ Power supply
■ Number of DC outputs: 12
・ DC9V 300mA (Max) x9
・ DC9 / 12 / 18V variable port 500mA (Max) x3
・ Total current: 3000mA
■ Features
・ All ports isolated
・ High-grade housing made of aluminum
・ 12 DC cables included
・ Stable operating environment realized by short-circuit protection circuit
・ Each output port is equipped with an LED light, and the port in use is lit with a green LED.
■ Specifications

・ INPUT: AC100v ~ 240v @ 50 / 60Hz
・ OUTPUT: DC12v, 3000mA
・ Polarity: Center minus specification

・ INPUT: DC 12v, 3000mA
・ OUTPUTS
--9V @ 300mA (Max) x9
--9V / 12V / 18V @ 500mA (Max) x 3
・ LEDs
--Power In: White
--1 to 12 ports Normal (Green), Abnormal (Red)

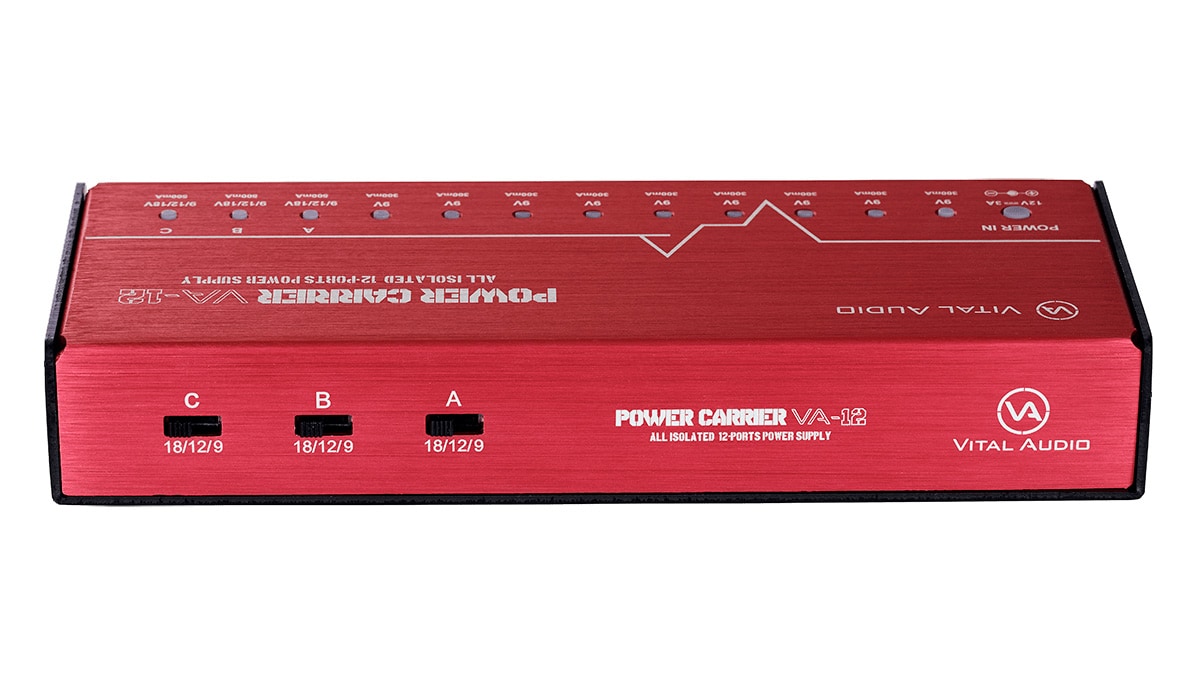

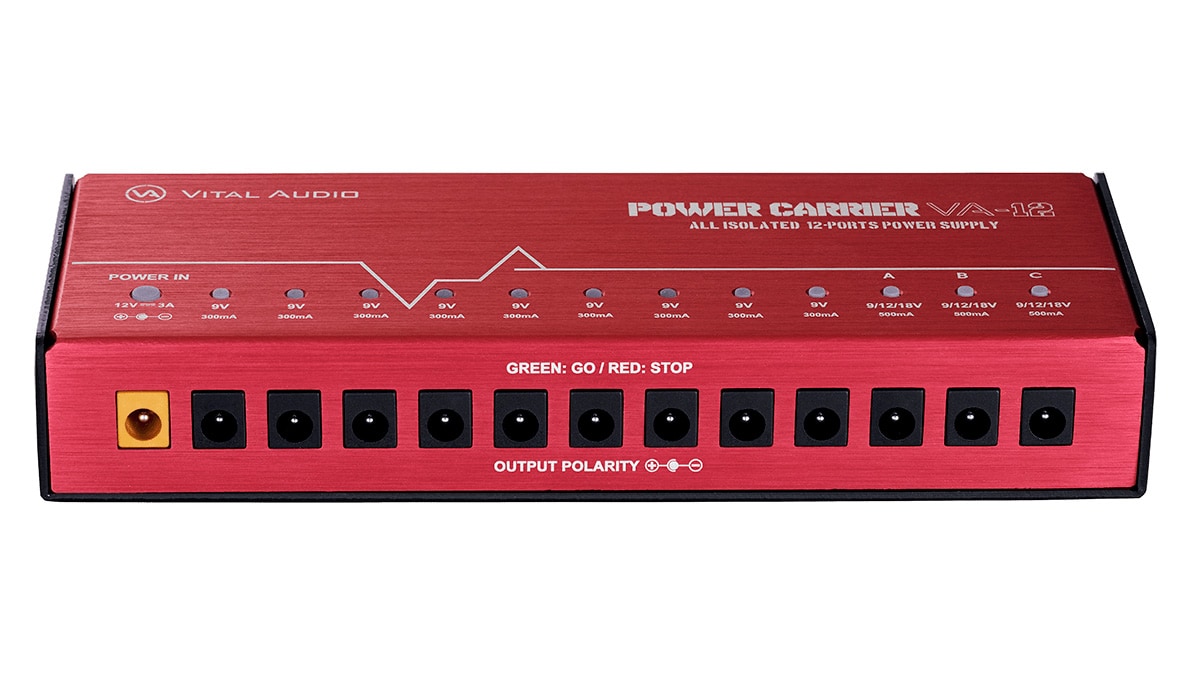

※The image is for reference only.
