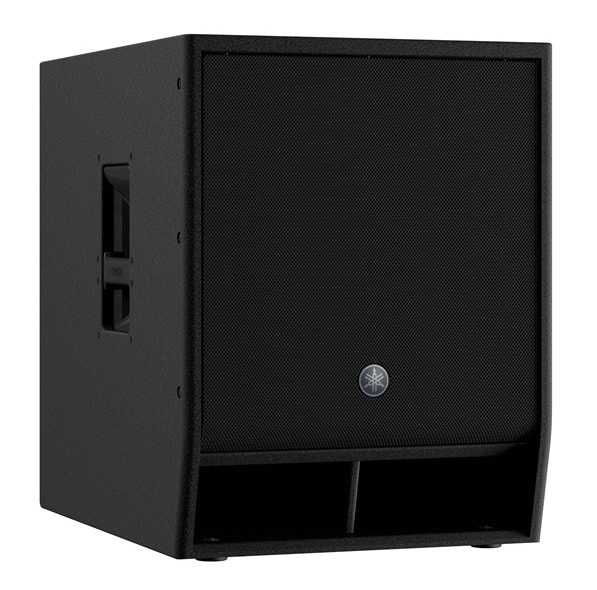

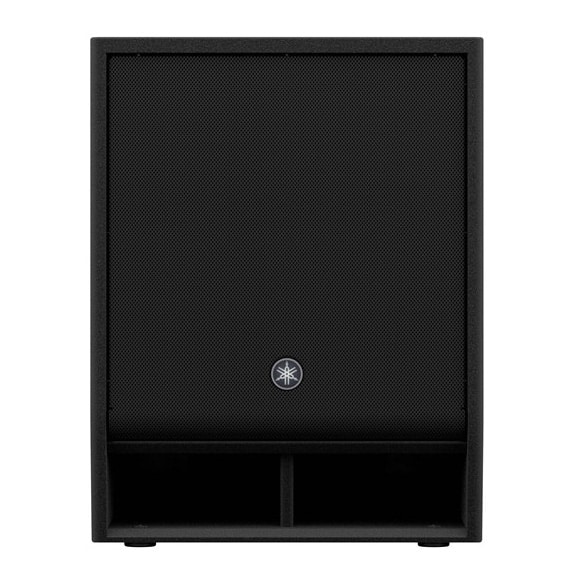

YAMAHA / DXS15XLF
The DXS15XLF is a 15-inch bass-reflex powered subwoofer. It features a 96kHz internal DSP processing for powerful, low-latency bass reproduction without sacrificing definition. It's equipped with a high-power 1600W Class-D amplifier module. Extensive DSP presets and precise EQ, delay, and routing control are available via the LCD. It also features D-XSUB processing and a cardioid mode.
recommended item
recommended item
-
CLASSIC PRO / CSX212SP powered subwoofer
限定特価 ¥89,800(incl. tax)
Powered subwoofer, 12"" x 2, 2000W (RMS), 41.0kg
■ Powered Subwoofer
■ Frequency Response: 33Hz - 150Hz (-10dB)
■ Components: 15""
■ Sampling Frequency Rate: 96kHz and FIR Filter
■ A/D/D D/A Conversion: 96kHz AD/DA
■ Amplifier Output:
Dynamic: 1600W
Continuous: 1230W
■ Amplifier: Class-D
■ Input Terminals: Combo x2
■ Output Terminals: XLR3-32 x2
■ Power Consumption: 40W (Idle), 180W (1/8), AC100-240V, 50Hz/60Hz
■ Handles: Aluminum die-cast, Side x2
■ Dimensions: W450 x H587 x D600 mm
■ Weight: 40.0kg
■ Optional Accessories (Sold Separately)
Cover: SPCVR-DXS15X

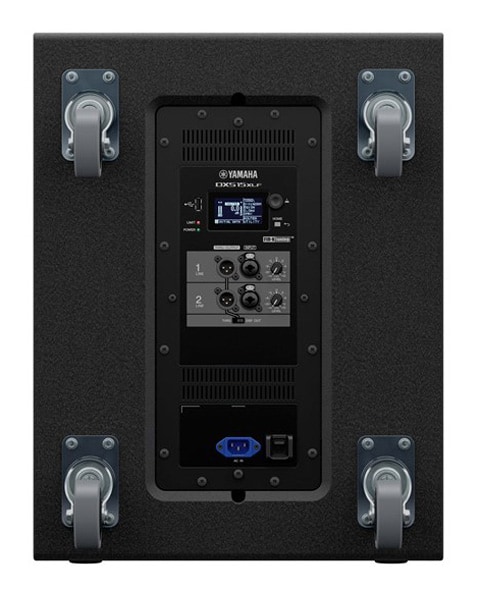

Caster: SPW-1
■Pole Socket:
Φ35 mm (depth 80 mm)
M20 Threaded (depth 25 mm)
The DXS15XLF is a 15-inch bass-reflex powered subwoofer ideally suited for use with DZR full-range loudspeakers. Its superior 96kHz signal processing capability delivers high resolution and low latency, while the 1600W amplifier module provides high efficiency and high output in a lightweight, compact cabinet. With powerful bass reproduction that preserves definition, it delivers strong, rich bass from 33Hz, as its name ""Extended Low Frequency"" suggests, while simultaneously achieving a class-leading sound pressure level of 136dB SPL (1m, Peak).

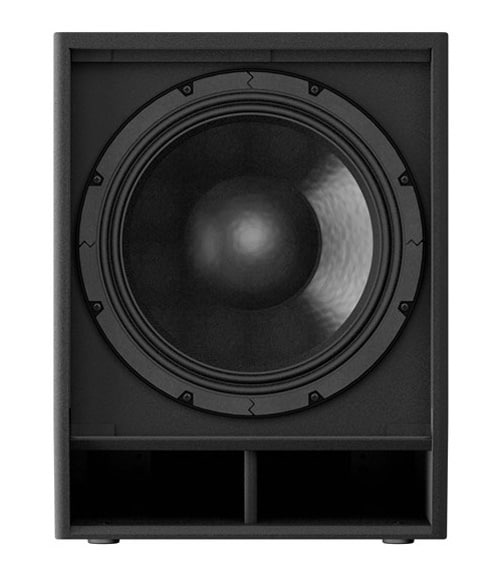

? 1 x 15-inch powered subwoofer, 4-inch voice coil
? Maximum sound pressure 136dB SPL (1m, Peak), frequency response 30Hz-150Hz
? High-power 1600W Class-D amplifier module
* Powerful bass reproduction with low latency and uncompromised definition thanks to 96kHz internal DSP processing.
* Abundant DSP presets and precise EQ, delay, and routing control via LCD.
* D-XSUB processing and cardioid mode.
* Dual pole socket compatible with both M20 screw-in and 35mm insert-in types.
* Lightweight yet robust plywood cabinet with highly scratch-resistant polyurea coating.
* Optional speaker cover (SPCVR-DXS15X) and casters (SPW-1) available separately.
* Power and Performance. Integrated.
The DZR series boasts class-leading maximum sound pressure thanks to its high-power Class-D power amplifier and high-performance 96kHz internal signal processing, and its powerful bass reproduction capabilities make it a new generation flagship series of live sound reinforcement powered speakers that meet the high demands of professionals despite its lightweight and compact package.
■ Frequency Response: 33Hz - 150Hz (-10dB)
■ Components: 15""
■ Sampling Frequency Rate: 96kHz and FIR Filter
■ A/D/D D/A Conversion: 96kHz AD/DA
■ Amplifier Output:
Dynamic: 1600W
Continuous: 1230W
■ Amplifier: Class-D
■ Input Terminals: Combo x2
■ Output Terminals: XLR3-32 x2
■ Power Consumption: 40W (Idle), 180W (1/8), AC100-240V, 50Hz/60Hz
■ Handles: Aluminum die-cast, Side x2
■ Dimensions: W450 x H587 x D600 mm
■ Weight: 40.0kg
■ Optional Accessories (Sold Separately)
Cover: SPCVR-DXS15X
Caster: SPW-1
■Pole Socket:
Φ35 mm (depth 80 mm)
M20 Threaded (depth 25 mm)
The DXS15XLF is a 15-inch bass-reflex powered subwoofer ideally suited for use with DZR full-range loudspeakers. Its superior 96kHz signal processing capability delivers high resolution and low latency, while the 1600W amplifier module provides high efficiency and high output in a lightweight, compact cabinet. With powerful bass reproduction that preserves definition, it delivers strong, rich bass from 33Hz, as its name ""Extended Low Frequency"" suggests, while simultaneously achieving a class-leading sound pressure level of 136dB SPL (1m, Peak).
? 1 x 15-inch powered subwoofer, 4-inch voice coil
? Maximum sound pressure 136dB SPL (1m, Peak), frequency response 30Hz-150Hz
? High-power 1600W Class-D amplifier module
* Powerful bass reproduction with low latency and uncompromised definition thanks to 96kHz internal DSP processing.
* Abundant DSP presets and precise EQ, delay, and routing control via LCD.
* D-XSUB processing and cardioid mode.
* Dual pole socket compatible with both M20 screw-in and 35mm insert-in types.
* Lightweight yet robust plywood cabinet with highly scratch-resistant polyurea coating.
* Optional speaker cover (SPCVR-DXS15X) and casters (SPW-1) available separately.
* Power and Performance. Integrated.
The DZR series boasts class-leading maximum sound pressure thanks to its high-power Class-D power amplifier and high-performance 96kHz internal signal processing, and its powerful bass reproduction capabilities make it a new generation flagship series of live sound reinforcement powered speakers that meet the high demands of professionals despite its lightweight and compact package.
