YAMAHA / DXS18XLF

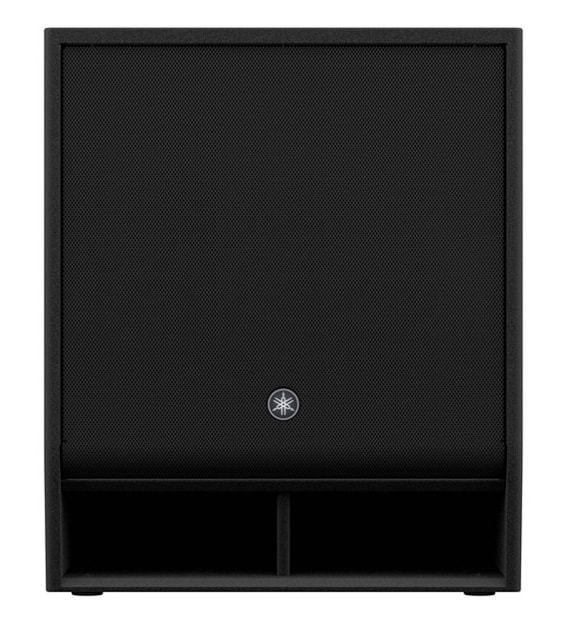

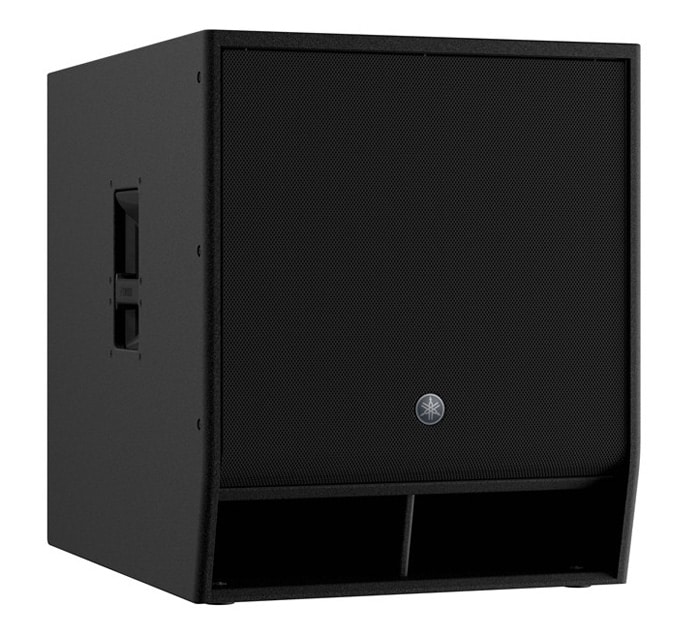

The DXS18XLF is an 18-inch bass-reflex powered subwoofer. It delivers powerful bass reproduction with low latency and clear definition thanks to its 96kHz internal DSP processing. It features a wide range of DSP presets and precise EQ, delay, and routing control via the LCD. It also incorporates D-XSUB processing and a cardioid mode.
recommended item
recommended item
■ Powered Subwoofer
■ Frequency Response: 30Hz - 150Hz (-10dB)
■ Components: 18""
■ Sampling Frequency Rate: 96kHz and FIR Filter
■ A/D/D D/A Conversion: 96kHz AD/DA
■ Amplifier Output:
Dynamic: 1600W
Continuous: 1230W
■ Amplifier: Class-D

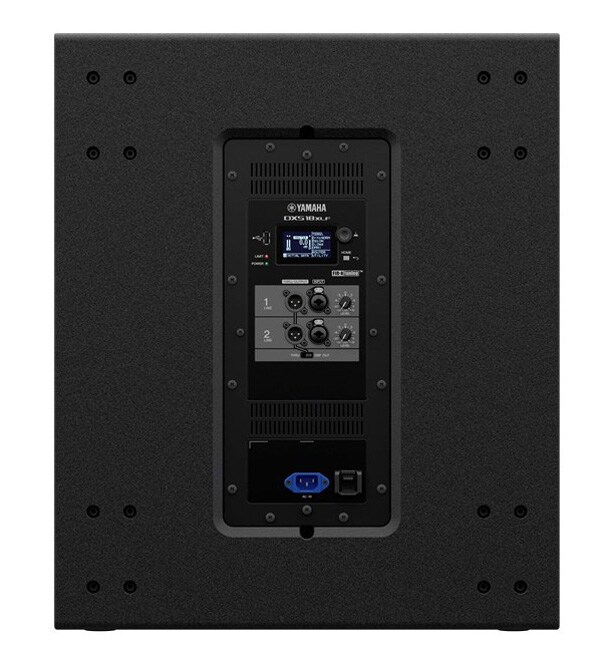

■ Input Terminals: Combo x2
■ Output Terminals: XLR3-32 x2
■ Power Consumption: 40W (Idle), 180W (1/8), AC100-240V, 50Hz/60Hz
■ Handles: Aluminum die-cast, Side x2
■ Dimensions: W550 x H657 x D720 mm
■ Weight: 48.9kg
■ Optional Accessories (Sold Separately)
Cover: SPCVR-DXS18X
Caster: SPW-1
■Pole Socket:
Φ35 mm (depth 80 mm)
M20 Threaded (depth 25 mm)
The DXS18XLF is an 18-inch bass-reflex powered subwoofer ideally suited for use with DZR full-range loudspeakers. Its superior 96kHz signal processing capability delivers high resolution and low latency, while the 1600W amplifier module provides high efficiency and high output in a lightweight, compact cabinet. With powerful bass reproduction that preserves definition, it delivers strong, rich bass from 30Hz, as its name ""Extended Low Frequency"" suggests, while simultaneously achieving a class-leading sound pressure level of 136dB SPL (1m, Peak).
? 1 x 18-inch powered subwoofer, 4-inch voice coil
? Maximum sound pressure 136dB SPL (1m, Peak), frequency response 30Hz-150Hz
? High-power 1600W Class-D amplifier module
* Powerful bass reproduction with low latency and uncompromised definition thanks to 96kHz internal DSP processing.
* Abundant DSP presets and precise EQ, delay, and routing control via LCD.
* D-XSUB processing and cardioid mode.
* Dual-pole socket compatible with both M20 screw-in and 35mm insert-in types.
* Lightweight yet robust plywood cabinet with highly scratch-resistant polyurea coating.

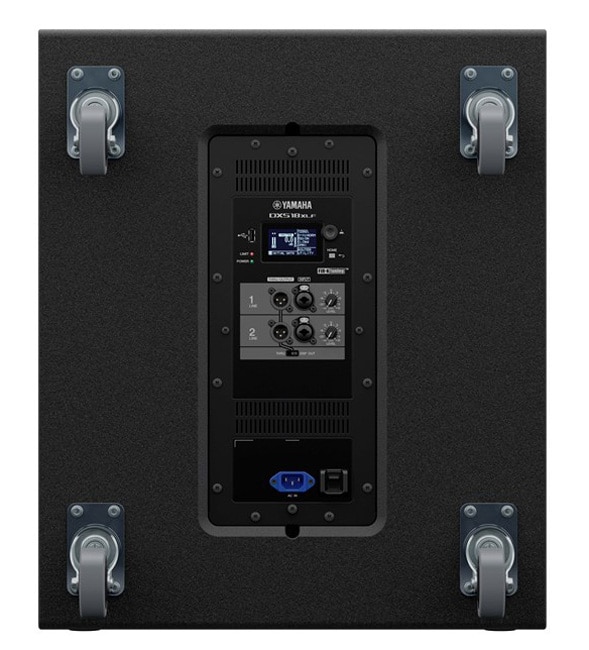

* Optional speaker cover (SPCVR-DXS18X) and casters (SPW-1) available separately.
* Power and Performance. Integrated.
The DZR series boasts class-leading maximum sound pressure levels achieved through a high-power Class-D power amplifier and high-performance 96kHz internal signal processing, resulting in powerful bass reproduction. Despite its lightweight and compact package, it's a new generation flagship series of live sound reinforcement powered speakers that meet the high demands of professionals.
Please note that large items are difficult to transport by regular courier services and may take several days to ship. Delivery will be curbside or vehicle-loaded. Since only one driver will be present on the day of delivery, we kindly ask for your assistance with unloading. Please contact our sales department in advance to confirm the delivery date and time. For large items, we will arrange the delivery date in advance after confirming your availability. Please note that if you are not present at the time of delivery, you will be responsible for any additional costs incurred for redelivery.
■ Frequency Response: 30Hz - 150Hz (-10dB)
■ Components: 18""
■ Sampling Frequency Rate: 96kHz and FIR Filter
■ A/D/D D/A Conversion: 96kHz AD/DA
■ Amplifier Output:
Dynamic: 1600W
Continuous: 1230W
■ Amplifier: Class-D
■ Input Terminals: Combo x2
■ Output Terminals: XLR3-32 x2
■ Power Consumption: 40W (Idle), 180W (1/8), AC100-240V, 50Hz/60Hz
■ Handles: Aluminum die-cast, Side x2
■ Dimensions: W550 x H657 x D720 mm
■ Weight: 48.9kg
■ Optional Accessories (Sold Separately)
Cover: SPCVR-DXS18X
Caster: SPW-1
■Pole Socket:
Φ35 mm (depth 80 mm)
M20 Threaded (depth 25 mm)
The DXS18XLF is an 18-inch bass-reflex powered subwoofer ideally suited for use with DZR full-range loudspeakers. Its superior 96kHz signal processing capability delivers high resolution and low latency, while the 1600W amplifier module provides high efficiency and high output in a lightweight, compact cabinet. With powerful bass reproduction that preserves definition, it delivers strong, rich bass from 30Hz, as its name ""Extended Low Frequency"" suggests, while simultaneously achieving a class-leading sound pressure level of 136dB SPL (1m, Peak).
? 1 x 18-inch powered subwoofer, 4-inch voice coil
? Maximum sound pressure 136dB SPL (1m, Peak), frequency response 30Hz-150Hz
? High-power 1600W Class-D amplifier module
* Powerful bass reproduction with low latency and uncompromised definition thanks to 96kHz internal DSP processing.
* Abundant DSP presets and precise EQ, delay, and routing control via LCD.
* D-XSUB processing and cardioid mode.
* Dual-pole socket compatible with both M20 screw-in and 35mm insert-in types.
* Lightweight yet robust plywood cabinet with highly scratch-resistant polyurea coating.
* Optional speaker cover (SPCVR-DXS18X) and casters (SPW-1) available separately.
* Power and Performance. Integrated.
The DZR series boasts class-leading maximum sound pressure levels achieved through a high-power Class-D power amplifier and high-performance 96kHz internal signal processing, resulting in powerful bass reproduction. Despite its lightweight and compact package, it's a new generation flagship series of live sound reinforcement powered speakers that meet the high demands of professionals.
Please note that large items are difficult to transport by regular courier services and may take several days to ship. Delivery will be curbside or vehicle-loaded. Since only one driver will be present on the day of delivery, we kindly ask for your assistance with unloading. Please contact our sales department in advance to confirm the delivery date and time. For large items, we will arrange the delivery date in advance after confirming your availability. Please note that if you are not present at the time of delivery, you will be responsible for any additional costs incurred for redelivery.
