PRESONUS / StudioLive 16.0.2 USB Digital Mixer

PRESONUS / StudioLive 16.0.2 USB is a compact digital mixer that combines digital power with an analog feel. Hardware / software integrated digital mixing and recording system. Equipped with a USB multi-channel recording interface.

■ Fusion of digital power and analog feel
It's important to be able to mix quickly during live events and production.

StudioLive 16.0.2 USB's intuitive interface makes it easy to see all the important controls and is easy to access as they aren't buried in menus or layers.

It has one fader per channel, one output per bus, function buttons, trim controls and knobs for EQ and dynamics processing. The Aux send is also equipped with its own physical control. Each channel has a large, bright meter display.

■ Equipped with big functions in a small housing
Equipped with 8 mono input channels, 4 stereo channels, and 4 Aux buses in a compact body that fits in a 400 mm square. Each is equipped with a high quality 60mm fader. It offers a wealth of analog I / O, 12 XMAX Class A mic preamps, talkback inputs, extensive signal processing with accurate metering, and a USB multi-channel recording interface. It also includes a software suite that allows recording / remote control.

■ Unrestricted signal processing
With enough DSP power, you don't have to think about which processing is available where. Fat Channel provides compressor, limiter, expander, 3-band semi-parametric EQ on each channel and bus, phase inversion to each channel mic preamp, professionally crafted preset library, and save and recall functions for processor settings. Provided. A stereo 31-band graphic EQ is provided on the main bus. In addition, it is equipped with two 32-bit delay / reverb effect processors.

■ Excellent sound
It delivers great detail and clarity like a studio console. A high-definition Burr-Brown converter is used for the A / D / A to provide a best-in-class dynamic range of 118 dB. It captures both high and low frequencies with excellent accuracy and does not cause distortion. In addition, the XMAX mic preamp, which is the cornerstone of recording, captures rich sound from deep low frequencies to smooth high frequencies with amazing high headroom.

■ Recording function
With an integrated 18-input, 16-output USB audio interface, you can achieve multi-track recording on your PC. The 16ch and main mix are all streamed to a Mac or Windows PC connected via USB, with each channel individually accessible to computer input or dedicated digital returns. With the included Capture software, you can record all channel inputs and main mixes with a single click. You can also record with the included Studio One Artist or DAW recording software that supports ASIO or Core Audio. You can record with the same ease in the studio or live.

■ Integrated software for flexible control
StudioLive 16.0.2 USB is tightly integrated with a state-of-the-art software suite. Connect to your computer via USB and mix anytime, anywhere using UC Surface touch control software (Mac / Windows / Android? / iPad?). QMix? -UC for iPhone? / iPod? Touch and Android? Allows musicians to control each monitor mix via the UC Surface. Virtual sound check can be automated with Capture? For Mac / Windows, and live recordings are recorded as they are. You can even edit it in Studio One Artist and release it digitally. StudioLive 16.0.2 USB and software suites are an ecosystem that helps you realize your creative vision.

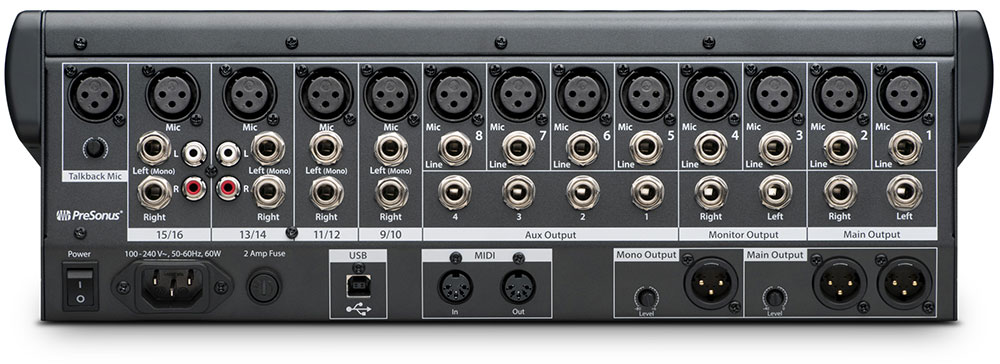

■ Dedicated analog terminal that provides the signal flow as it looks
The rear panel of the StudioLive 16.0.2 USB is lined with the robust connections found in analog mixers. Balanced mic inputs for 8 mono channels, 8? "Line inputs, 4 balanced RCA line inputs, and dedicated balanced outputs for each of the 4 Aux and main stereo buses. Each input channel and bus send has its own terminal so you can always get a good idea of ​​the flow from each output without the need for sharing or compromise.

■ Add stimulus to performance with MIDI control
StudioLive 16.0.2 USB can be controlled from mobile devices such as iPad ?, iPhone ?, iPod touch ?, and Android, but it is difficult for musicians to operate while playing. That's why StudioLive 16.0.2 USB supports MIDI. Use a MIDI foot pedal or DAW to recall scenes with MIDI program changes, control main output volume and effect levels, mute effects between songs, switch from reverb to delay, change mixes for solos, and more. You can achieve various controls even while playing. You can even automate these with your DAW. It's a great way to make performance more exciting and varied without a PA engineer.
