ROLAND / TD-50DP

デジタル接続対応のフラッグシップ音源TD-50とVパッドスネアPD-140DS、VシンバルライドCY-18DRのパッケージ。シェルを調節できるV エディット機能を搭載。マルチ・エレメント・センサーは、叩く位置で変わる音の違いを再現します。静電容量タッチ方式センサーにより、リム・ショットやミュートも可能に。スネアには、静粛性に優れた3プライ・メッシュ・ヘッドを採用しました。TD-50のポテンシャルを引き出すおすすめセットです。

■ Digital pad package
■ Package contents: TD-50, PD-140DS, CY-18DR

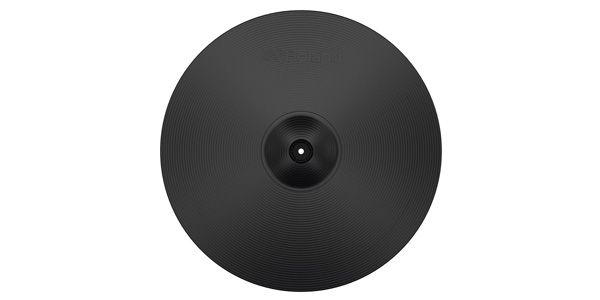

Digital Ride CY-18DR
■ Size: 18 inches
■ Dimension: Width 470mm x Depth 470mm x Height 55mm 2.1kg
■ Compatible playing method (trigger):
Bow shot (multi-stage dot position detection function, wide dynamic range)
Bell shot (wide dynamic range)
Edge shot (wide dynamic range)
Choke playing method (edge ​​choke, bow touch)
■ Sensor system:
Multi-element sensor system
Bow sensor x 3
Bell sensor
Edge sensor
Touch sensor
Built-in sensing processor
■ Connection terminal: DIGITAL TRIGGER OUT terminal
(Compatible with Roland drum sound sources equipped with DIGITAL TRIGGER IN jacks)
■ Power supply: Powered from DIGITAL TRIGGER IN terminal (DC5V)
■ Current consumption: 90mA
■ Accessories:
instruction manual
Wing nut
Felt washers
Stop rotation
Connection cable
Cable tie
Warranty
■ Sold separately:
Cymbal mount (MDY series)
Cymbal parts set (CYM-10, 1 set included with this unit)

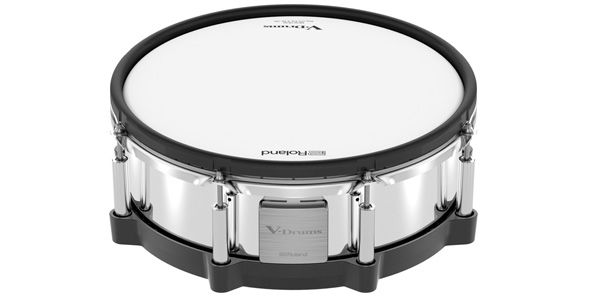

Digital snare PD-140DS
■ Size: 14 inches
■ Dimensions: Width 380mm x Depth 380mm x Height 160mm 4.9kg
■ Shell depth: 4.3 inches
■ Tension number: 8
■ Head: 3-ply mesh head (middle layer floating structure)
■ Compatible playing method (trigger):
Head shot (multi-stage dot position detection function, wide dynamic range)
Rim shot (depth detection function, wide dynamic range)
Cross stick (automatic switching)
Brush sweep
■ Sensor system:
Multi-element sensor system
Head sensor
Position sensor x 3
Rim sensor
Cross stick sensor x 3
Built-in sensing processor
■ Corresponding covering size: 98 (width) x 1,060 (length) mm, thickness 1 mm or less
■ Connection terminal: DIGITAL TRIGGER OUT terminal
(Compatible with Roland drum sound sources equipped with DIGITAL TRIGGER IN terminals)
■ Power supply: Powered from DIGITAL TRIGGER IN terminal (DC5V)
■ Current consumption: 90mA
■ Accessories:
Instruction manual
Connection cable
Drum key
Warranty

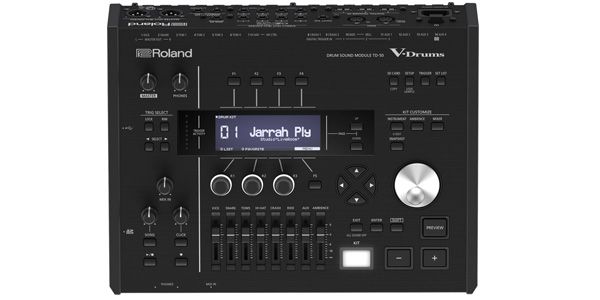

V drum sound source TD-50
■ Number of drum kits: 100 (preset: 50)
■ Number of tones: 400 or more
■ Effect:
Pad compressor: for each pad
Pad equalizer: For each pad
Room type: 25 types
Reverb type: 5 types
Stereo enhancer
Multi-effect: 3 systems, 30 types
Master compressor
Master equalizer
■ User sample:
Number of user samples: Up to 500 (including user samples at the time of product shipment)
Sound length (total): Monaural 24 minutes, Stereo 12 minutes
File format that can be imported: WAV (44.1kHz, 16/24 bit)
■ Song player (SD card): Audio file WAV (44.1kHz, 16/24 bit), MP3
■ Recorder
Recording method: Real time
Maximum number of memorized sounds: About 40,000 sounds
Export file format: WAV (44.1kHz, 16 bits), SMF
■ Display:
Graphic LCD 256 x 80 dots
TRIGGER ACTIVITY indicator (LED)
■ Faders: 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
■ External memory: SD card (SDHC compatible)
■ Connection terminal:
TRIGGER IN terminal x 14: TRS standard type (exclusive use with pads for digital connection)
DIGITAL TRIGGER IN terminal x 3: USB A type
MASTER OUT (UNBALANCED) terminals (L/MONO, R): Standard type
MASTER OUT (BALANCED) terminals (L, R): XLR type (balanced)
DIRECT OUT (BALANCED) terminal x 8: TRS standard type (balanced)
PHONES terminal x 2: Stereo standard type, stereo mini type
MIX IN terminal x 2: Stereo standard type, stereo mini type
MIDI (IN, OUT/THRU) terminals
USB COMPUTER terminal: USB B type (USB Hi-Speed ​​AUDIO / MIDI compatible)
FOOT SW terminal: TRS standard type
AC IN terminal
■ Number of USB audio recording and playback channels:
Sampling frequency (original): 44.1kHz
Sampling frequency (using sampling rate converter): 96kHz, 48kHz
Recording: 10 channels
Playback: 4 channels
■ Power supply: AC100V (50/60Hz)
■ Power consumption: 30W
■ Accessories:
quick start
Power cord
Warranty
Roland user registration card
■ Dimensions: width 330 mm x depth 255 mm x height 118 x mm 3.3 kg
