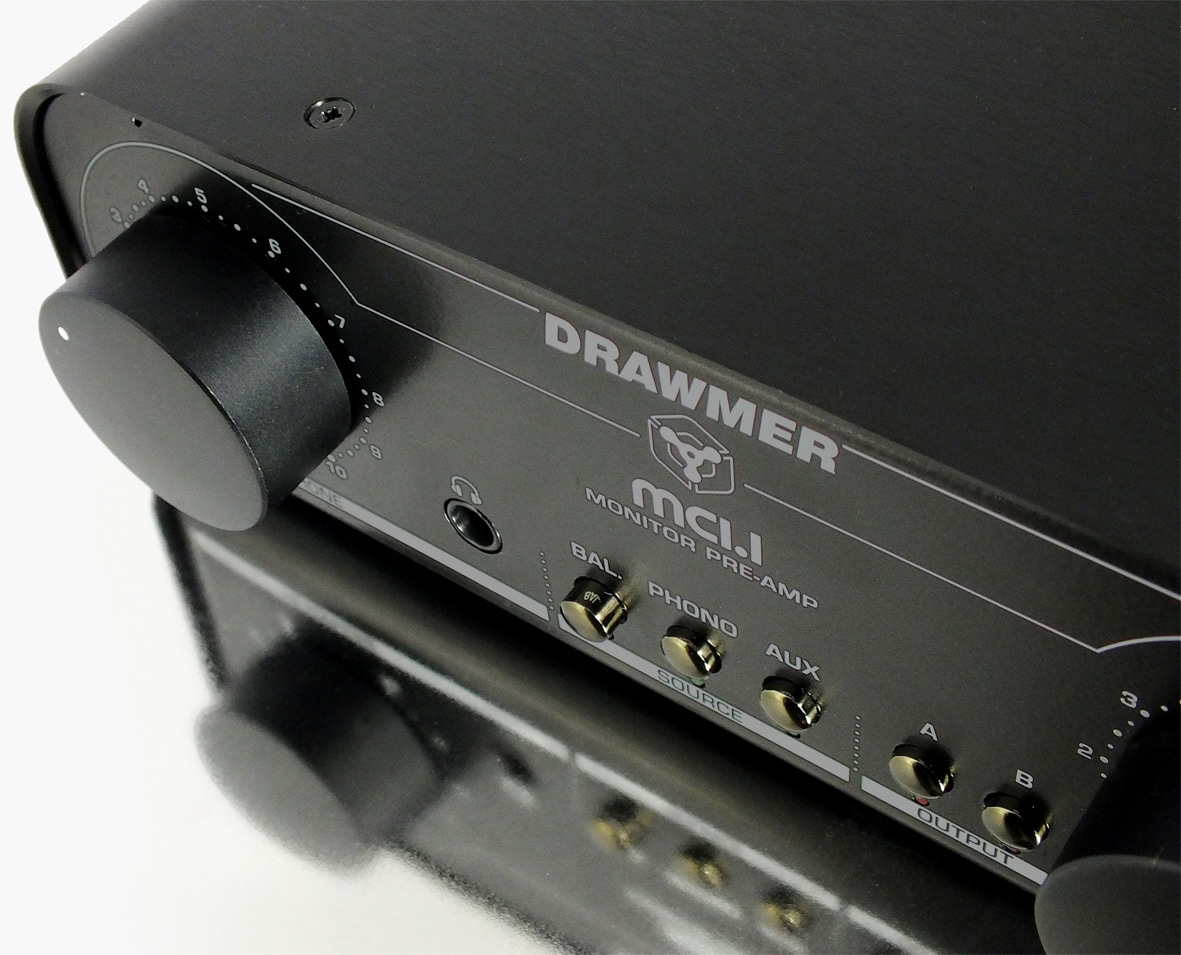

DRAWMER / MC1.1

The DRAWMER/MC1.1 is a monitor preamplifier that retains the clear, natural sound of the MC2.1 and is ideal for simple music production booths and home audio with simple speaker configurations.

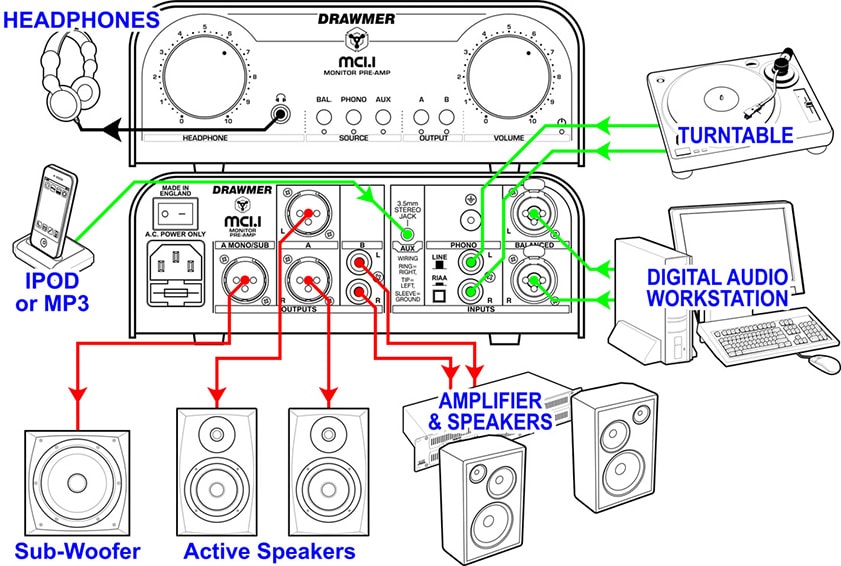

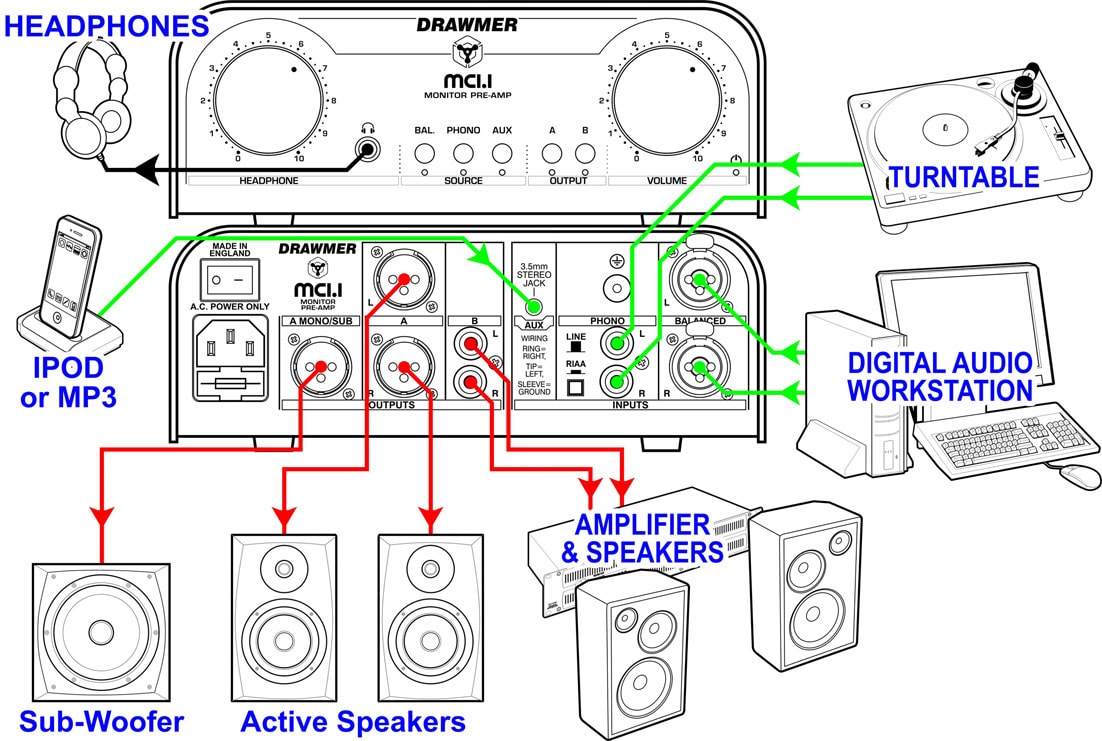

The MC1.1 is a monitor preamplifier ideal for simple music production booths and home audio systems with simple speaker configurations, while retaining the clear, natural sound of the MC2.1. Equipped with a headphone monitor output, it's designed for professional artists and engineers, as well as all music lovers. Not only can you connect music playback devices such as MP3 players, iPods, and smartphones, but you can also easily enjoy the warm sound of records by simply connecting a turntable and active speakers (headphones) to the built-in RIAA phono stage. ■ Inputs
BALANCED: Neutrik XLR/TRS phone combo
PHONO: Two RCA jacks and a ground terminal (switchable between LINE and RIAA)
AUX: 3.5mm stereo mini jack (for connecting iPods, MP3 players, smartphones, etc.)

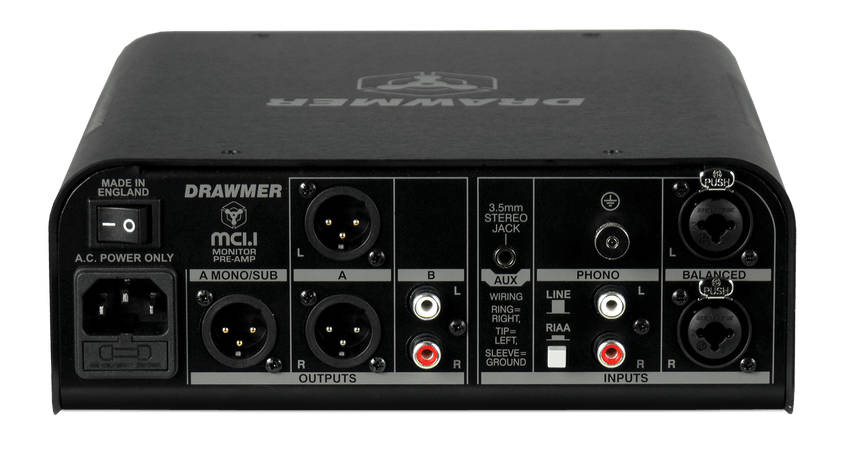

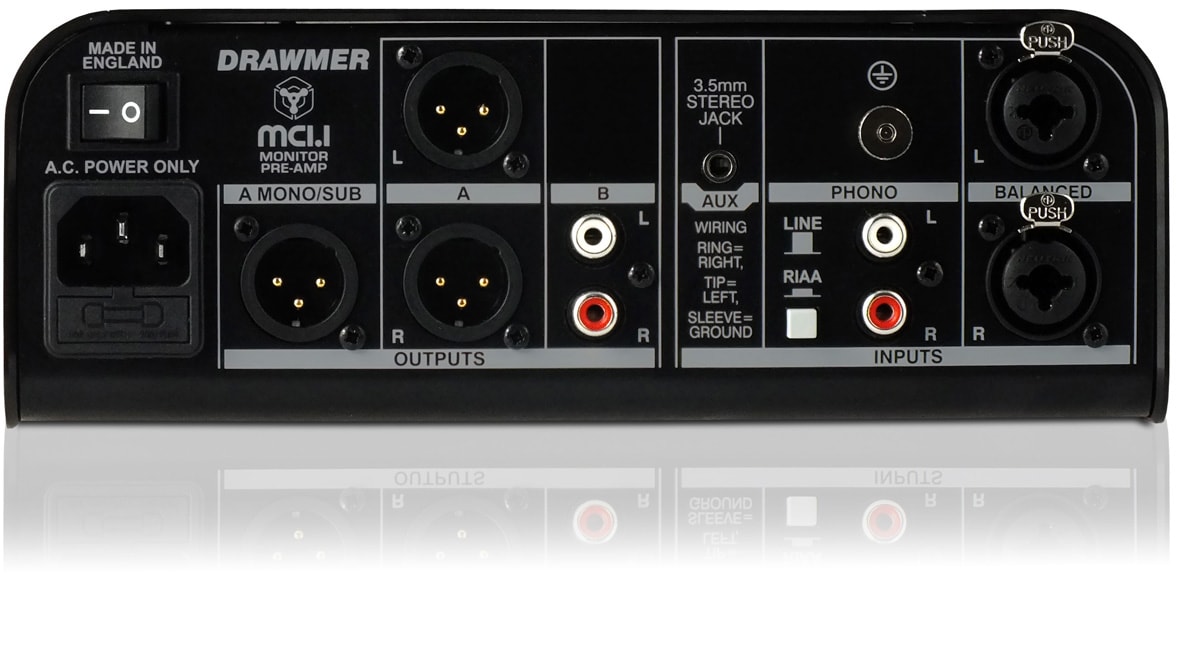

■ Outputs
A: Balanced L/R speaker outputs (3-pin XLR)
B: Unbalanced L/R speaker outputs (RCA)
A Mono/Sub: Dedicated mono speaker/subwoofer output (3-pin XLR)


● Low-noise, highly transparent sound circuit design
● Linear power supply with built-in toroidal transformer and voltage selection switch
● Professional-quality balanced XLR and 3.5mm stereo mini inputs
● RCA input switchable between LINE and PHONO (RIAA)
● Switchable output stage between balanced XLR and RCA
● Balanced output and mono subwoofer output possible simultaneously

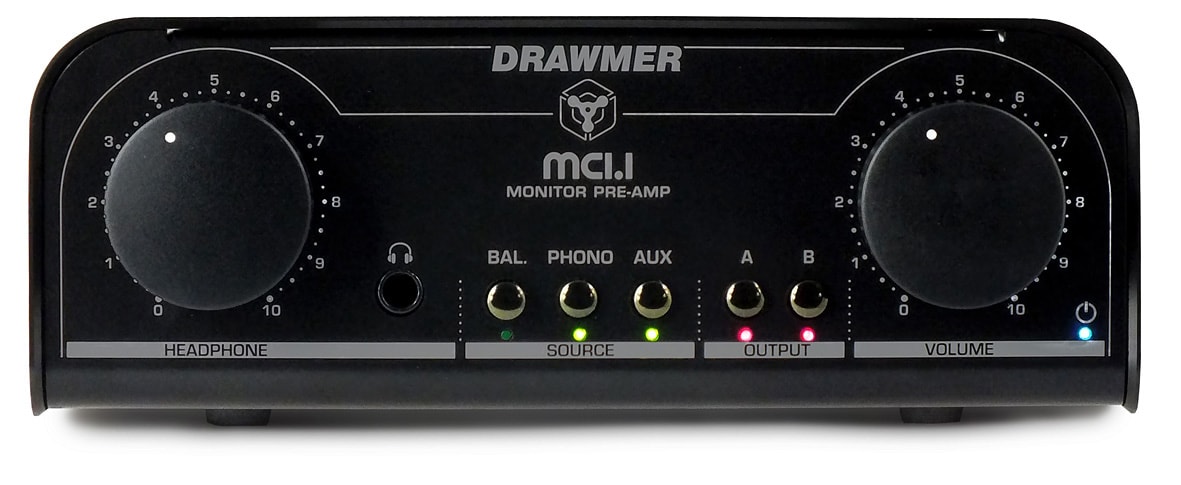

● Dedicated amplifier and volume control in the headphone section

● Built-in phono stage allows direct connection to a turntable

● Custom quad potentiometer for excellent left and right channel matching

● Time delay relay in the line output reduces noise when powering on/off

● Rugged steel chassis and stylish black matte aluminum cover

● Rack mountable (using optional 2U mounting kit)


■ Dimensions (D x W x H): 272 x 215 x 81 mm (including knobs, power socket, and feet)
■ Weight: 2.5 kg
