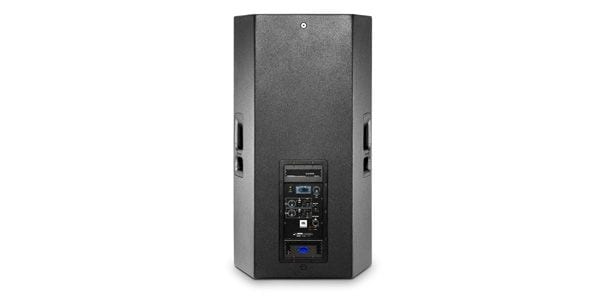

JBL / SRX835P

Variations

The JBL SRX835P powered speaker is the pinnacle of portable PA speaker technology, featuring carefully selected transducers and enclosures, Crown DriveCore technology, and a state-of-the-art, user-configurable DSP. Compatible with HiQnet network control, it delivers industry-leading sound quality, power, control, and durability. From live performances, DJ sets, and touring systems to fixed installations, it delivers the ultimate performance for any venue.

■Specifications
■Type: 3-Way Powered Full-Range
■Frequency Range (-10dB): 33Hz - 21kHz
■Distribution Angle (H x V): 60° x 40°
■Maximum Sound Pressure Level: 137dB SPL
■Driver Configuration
LF 2275F (15 inches (381mm))
MF 2107H (6.5 inches (165mm))
HF 2432H (3 inches (75mm))
■Crossover Frequency: 330Hz, 2.4kHz
■Power Amplifier: 2,000W (peak), Class D
■Input
Number of Channels: 2
　Connector/Type: Combined XLR (3P) and standard phone (3P) jack
　Impedance: 40kΩ (balanced), 20kΩ (unbalanced)
■Indicator Power, Link, Data
■Power Supply: 100V, 50/60Hz
■Power Consumption (at 1/8 output, pink noise): 85W
■Enclosure: 18mm plywood, Duraflex finish
■Dimensions (W x H x D): 542 x 977 x 477mm (excluding protrusions)
■Weight: 39kg
■Accessories: Power cord
*Not compatible with the JBLPOLE-MA and JBLPOLE-GA distance rods.

[Regarding display issues in the SRX CONNECT iPad app (June 6, 2024)]
We are experiencing an issue where the entire screen is not displayed and control cannot be performed properly. We have reported this to manufacturer support and requested a fix, but it may take some time for us to respond. As a current workaround, we have confirmed that control is possible with a Windows PC using HiQnet Audio Architect. We apologize for any inconvenience, but please use a PC connection.

[SRX CONNECT iPad app version 1.5.0 released August 30, 2024]
We have confirmed that the latest version, version 1.5.0, has fixed the issues. Please upload it from the link below and use it.
https://apps.apple.com/us/app/srx-connect/id955958187
