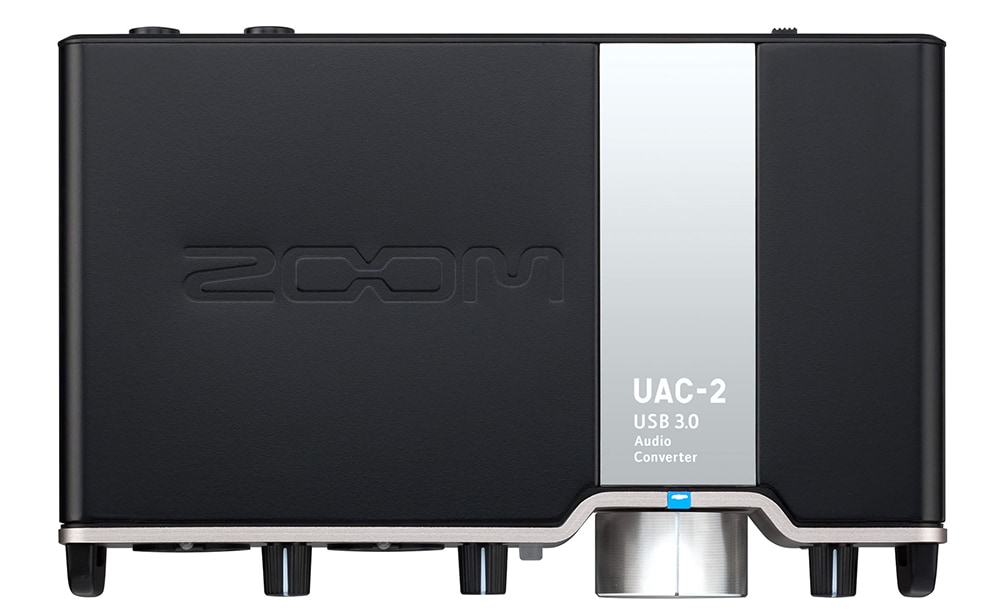

ZOOM / UAC-2 オーディオインターフェイス USB3.0

Audio converter ZOOM "UAC-2" adopting the latest USB 3.0 SuperSpeed standard. Speed, power and sound, all of which provide higher quality. Supports a variety of input sources such as dynamic microphones, condenser microphones, guitar basses, and keyboards. A tool for creators that compactly packs the functions required for music production into a compact body.

■ Audio interface

・10 times faster than USB 2.0
・Ultra-low latency*1 of 2.2ms, the fastest in the class, maximum 5V/900mA (1.8 times higher than USB 2.0) power supply capacity to achieve stable operation with bus power
・Compatibility with USB 2.0 compatible PC

Introducing the first high-quality sound technology in its class. It is compatible with a wide range of Windows/Mac/iPad*2, and is ideal as a “USB DAC” that produces high-quality sounds with PC audio as well as music production using DAW software.

*1 Measured value when sampling frequency is 96 kHz and buffer size is 32 samples.
*2 Apple iPad Camera Connection Kit and AC adapter (AD-14) are required separately.

○ 2in/2out USB3.0 audio converter (supports PC/Mac/iPad)
UAC-2 is an audio converter with high-speed interface USB3.0. It is compatible with Windows/Mac and can be connected (*) to an iPad in class compliant mode. In addition, it supports recording and playback of up to 24bit/192kHz, and can also play high-resolution high-resolution sound sources distributed on the Internet.
*Separately sold AC adapter (AD-14) and Apple iPad Camera Connection Kit are required.

○ Discerning audio performance
Adopts a jitter-free asynchronous transmission system that is faithful to the original sound. Adopts the latest AD (Bar Brown PCM4202)/DA (AITM AK4396) converter that supports 192Hz. The original sound is faithfully reproduced in the entire system.

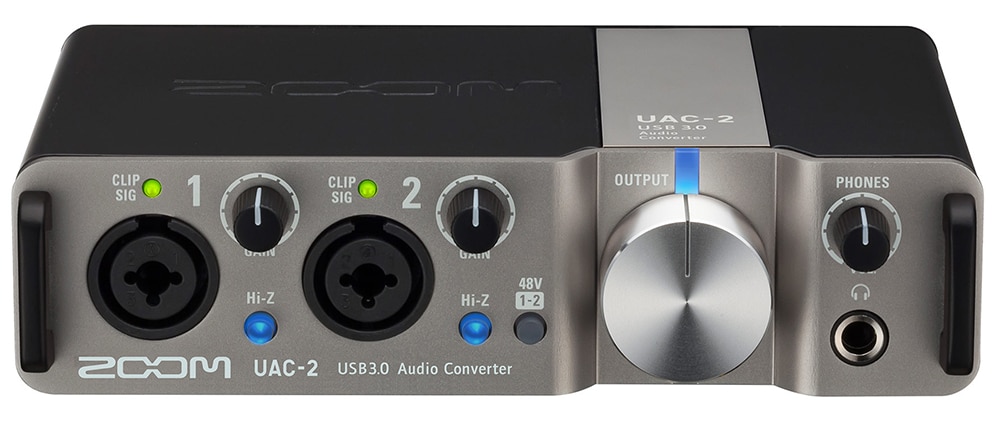

○ Equipped with high performance microphone preamplifier
Equipped with a high-performance microphone preamplifier cultivated in the H series. Each input corresponds to Hi-Z input. Amplification up to +60db and +48V phantom power can be supplied.

○ MIDI IN/OUT
Equipped with a MIDI IN terminal that can connect a MIDI keyboard/controller and a MIDI OUT terminal that can connect to an external MIDI tone generator. Compatible with major DAW software such as Cubase, Logic, Garage Band, Pro Tools, Ableton Live.

○ Supports dedicated mixer application "UAC-2 MixEfx"
From the computer, you can make settings for the built-in mixer and effects for monitoring.

■Specifications

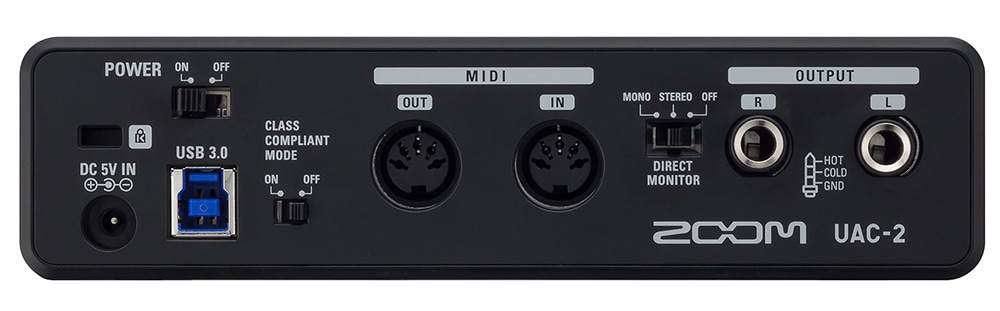

Input: INPUT1/2 specification XLR/TRS combo jack (XLR: 2nd hot TRS: TIP hot), phantom power +48V
Output: OUTPUT L/R: Spec TRS phone jack (balanced), PHONES: Spec standard stereo phone jack
Frequency response: (44.1kHz): -1.0 dB: 20 ​​Hz-20 kHz, (96 kHz): -1.0 dB: 20 ​​Hz-40 kHz, (192 kHz): -1.0 dB: 20 ​​Hz-60 kHz
Audio recording/playback/Number of channels: Recording: 2 channels, Playback: 2 channels
Sampling frequency 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz
Bit length 24bit
Interface USB3.0 / 2.0
MIDI IN/OUT 5-pin DIN jack
Power USB bus power/AC adapter AD-14 (DC 5V/1A) (sold separately)
Power consumption up to 5W
External dimensions: Mass (body only): 113.9 mm (D) x 176.0 mm (W) x 46.2 mm (H), 750g
Accessories: Manual, USB3.0 cable, Cubase LE (download version)


■ UAC-2 operating environment

*For the latest operating environment Manufacturer site.

* Operation is not guaranteed when used with a USB hub or expansion card
*Apple iPad Camera Connection Kit and AC adapter (AD-14) are required separately for use with iPad



Please check the following for use with Logic.
*Bugs and workarounds related to Logic
