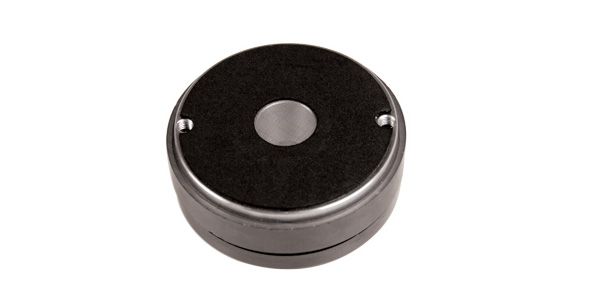

EMINENCE / ASD1001B

This PA speaker replacement driver from the popular brand EMINENC is a two-point bolt-on attachment. Its input rating is 50W and it's compatible with 8Ω speakers.

■Throat Diameter: 1""
■Impedance: 8Ω
■Power Handling: 50 W (EIA-426A)
■Frequency Range: 2500 Hz - 20 kHz
■Sensitivity: 104.10 dB
■Magnet Type: Ferrite
■Size: Diameter 88.90 mm x Depth 80 mm
■Weight: 0.8 kg
■Other:
■Recommended Crossover Frequency: 2.5 kHz / 18 dBkHz
■Magnet Weight: 0.34 kg
■Voice Coil: 1.3""
■Coil Former: Aluminum
■Diaphragm: Titanium
■Mounting: Bolt-on, 2 x M6
■Diameter Between Mounting Holes: 76.2 mm B.C.D.

■EMINENCE
Founded in 1966 in Kentucky, USA. The company still maintains its own factory there, producing high-quality guitar and PA speaker units that impress even the most discerning guitarists. The company's hits include the ""Tonker"" and ""Legend,"" as well as the popular ""EJ1250,"" a signature model named after tone-conscious guitarist Eric Johnson.

Drivers can generally be swapped out as long as they have the same throat diameter, impedance, mounting dimensions, and similar power handling. We do not inspect or guarantee driver installation. Thank you for your understanding.

*We generally do not provide loaners or other replacement units when providing repairs or support. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support policy.
