MOTU / 24Ai

Audio interface, USB2.0,72in48out (analog 24in0out), AVB Ethernet

■ Audio interface

24Ai is an AVB audio interface equipped with 24ch analog input (24Ai) and 3 ADAT optical inputs / outputs in a 1U rack size. Like other AVB audio interfaces, it has a built-in 48ch mixer with 12 stereo buses.
Combined with other AVB audio interfaces such as 1248, 8M, 16A, it also supports large systems.

■ Main specifications

Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

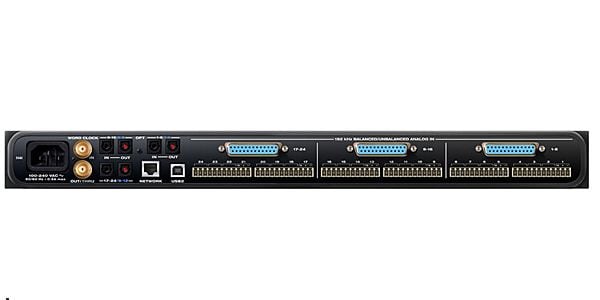

24Ai analog input: 24 x line input (balanced / unbalanced), 3 x DB -25 D-sub / 6x 12-pin Phoenix connector (Euroblock)
Digital input / output: Optical x 3: ADAT 24 ch (SMUX 12 ch)
Computer I / O: USB 2.0 Audio Class Compliant (3.0 compatible)
Sync I / O: Word clock input: 1, Word clock output: 1

■ Operating environment

Macintosh
・ 1 GHz or higher Intel processor
・ 2 GB or more memory (4 GB or more recommended)
・ Mac OS X 10.8 or later
・ USB 2.0 port
・ Large capacity hard disk drive (500 GB or more for recording)

Windows
・ 1 GHz Pentium processor and above
・ 2 GB or more memory (4 GB or more recommended)
・ Windows 8 or later
・ USB 2.0 port
・ Large capacity hard disk drive (500 GB or more for recording)

Web app support
・ Cross-platform: Mac, Windows, Linux, iOS, Android
・ Web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
* The web client and MOTU AVB interface must be connected on the same network (either wired or wireless).

Included software
・ MOTU AVB Discovery App for iOS (Download from Apple App Store)
・ MOTU AVB Control web app (provided from AVB hardware)
・ AudioDesk 4.0 (provided as a separate download)

Supported OS
・ Audio I / O support: Mac OS X 10.8 or later / Windows * Windows will be supported at a later date
・ Network control: Mac, Windows, Linux, iOS, Android
