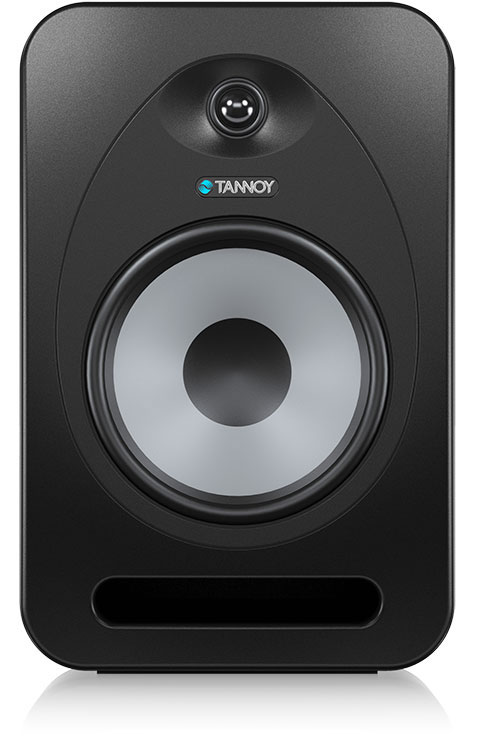

TANNOY / Reveal 802

The Reveal 802 is a studio monitor featuring a 100W output and an 8-inch woofer, delivering the traditional TANNOY sound. Optimal setup is easy with its 3-position EQ control. An AUX LINK input allows for direct connection of a music player.

■Reveal 802: Active Studio Monitor

The Reveal 802 is a studio monitor that delivers the legendary Tannoy sound, backed by 87 years of proven performance, with ample power.

? Equipped with an 8-inch ultra-high-efficiency woofer and a 1-inch high-precision tweeter

? 100 W custom-tuned bi-amp module

? AUX LINK function for music players

■Solid Bass at Any Playback Volume

For bass-heavy music genres, where balance and expression of the deep bass are paramount, a monitor speaker is needed that can reproduce low-end details without being overwhelmed by the density of the low frequencies in the mix. The Reveal 802 features a custom 8-inch woofer and a 1-inch tweeter, with exceptional tuning that fully utilizes decades of speaker design know-how. The 100 W bi-amp configuration allows you to increase monitoring volume with ample headroom without compromising the sound.

■ Expert Voicing Ensures a Wide Sweet Spot

The active crossover filter, custom-tuned by Dr. Paul Mills of Tannoy, boasts exceptional timing precision. Its wide sweet spot allows for seamless movement within the workspace without losing the stereo image of the mix, and delivers superior sound even to those present during the mixdown.


■ Easy Setup with AUX LINK

Even studio monitors are frequently used for playing regular music in addition to mixdowns. The Reveal 802 allows direct connection of a music player via the included mini-jack cable, without the need for external equipment.


■Main Features

* Direct connection to music players/smartphones/tablets

* 100 W bi-amp module and active crossover filter for a balance of power and clarity

* Balanced and unbalanced inputs

* Volume/EQ control

* Rubber-padded speaker base

* 8-inch custom high-efficiency LF driver

* 1-inch soft dome tweeter

* Front port design for optimized bass response and wall-hugging placement

■Technical Specifications

* Frequency Response: 42-43 kHz

* Maximum Output Sound Pressure Level: 114 dB

* Bi-amp Output, RMS

LF/Midrange: 75 W

HF: 25 W

THD: < 0.4%

■ Input Connectors/Impedance

* Balanced: XLR, 20 kOhms

* Unbalanced: 1/4"" standard jack, 10 kOhms

* AUX Link: 1/8"" mini jack, 10 kOhms

■Output Connector

AUX Link: 1/8"" Mini Jack

■EQ Setting Options

■Neutral/High Boost/High Cut (+/- 1.5 dB HF Boost/Cut)

■Crossover Frequency: 1.8 kHz

■Power Supply: 100-120 V or 200-240 V (50/60 Hz)

■Maximum Power Consumption: 240 W

■Low Frequency Alignment: Optimized Front Port

■Fuse:

100-120 V: T2AL / 250 V

200-240 V: T1AL / 250 V

■Dimensions (H x W x D): 390 x 254 x 300 mm (H x W x D)

LF/Midrange Driver: 8-inch (200 mm)

HF Driver: 1-inch (25 mm) Soft Dome

■Material:

Body: MDF

Woofer: Multi-fiber paper cone

Tweeter: Soft dome

■Accessories: Power cable, manual, AUX Link cable (5 m)

■1 unit
