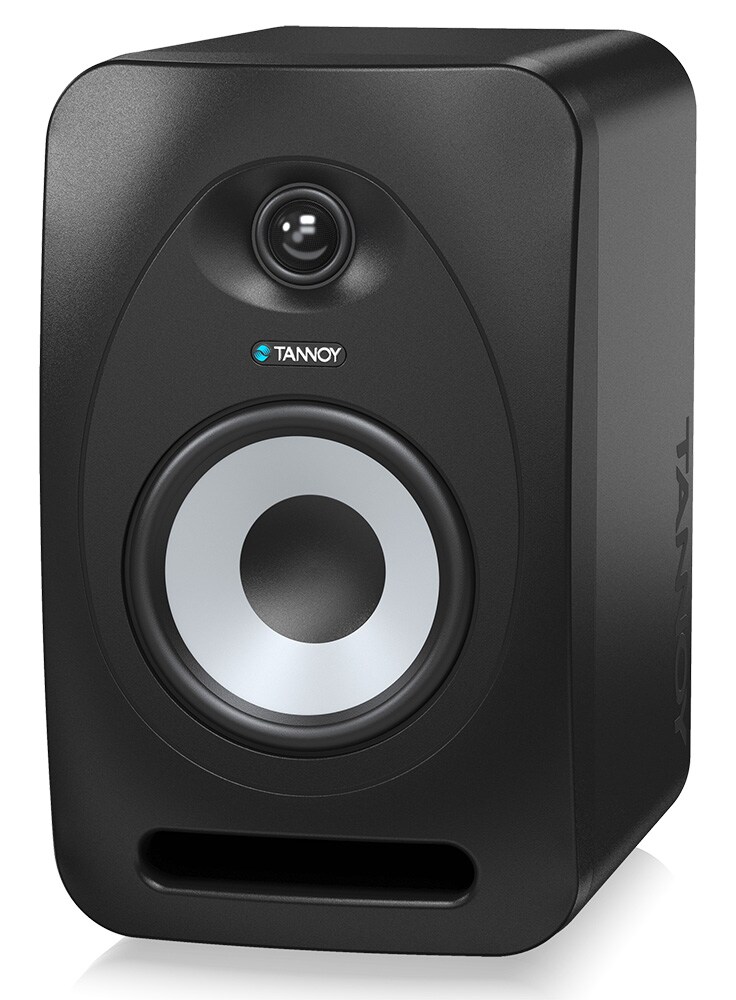

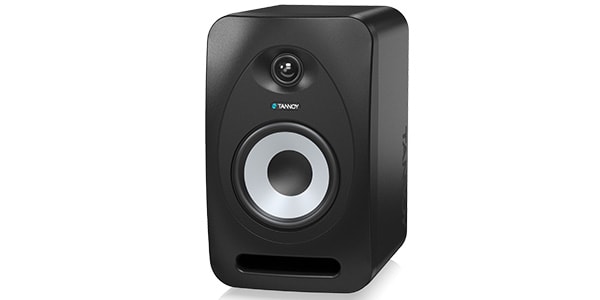

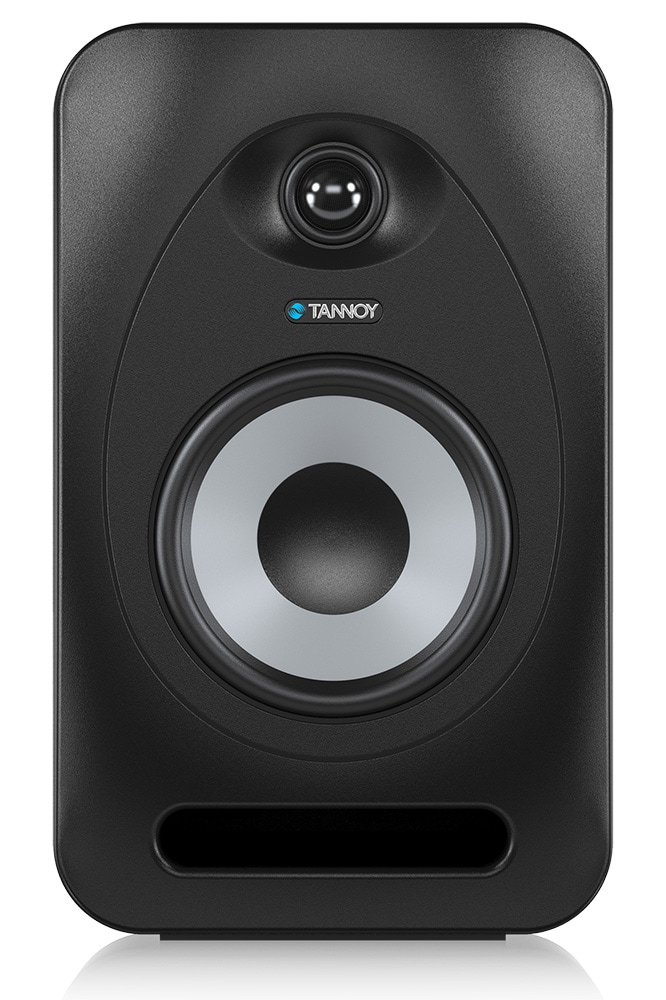

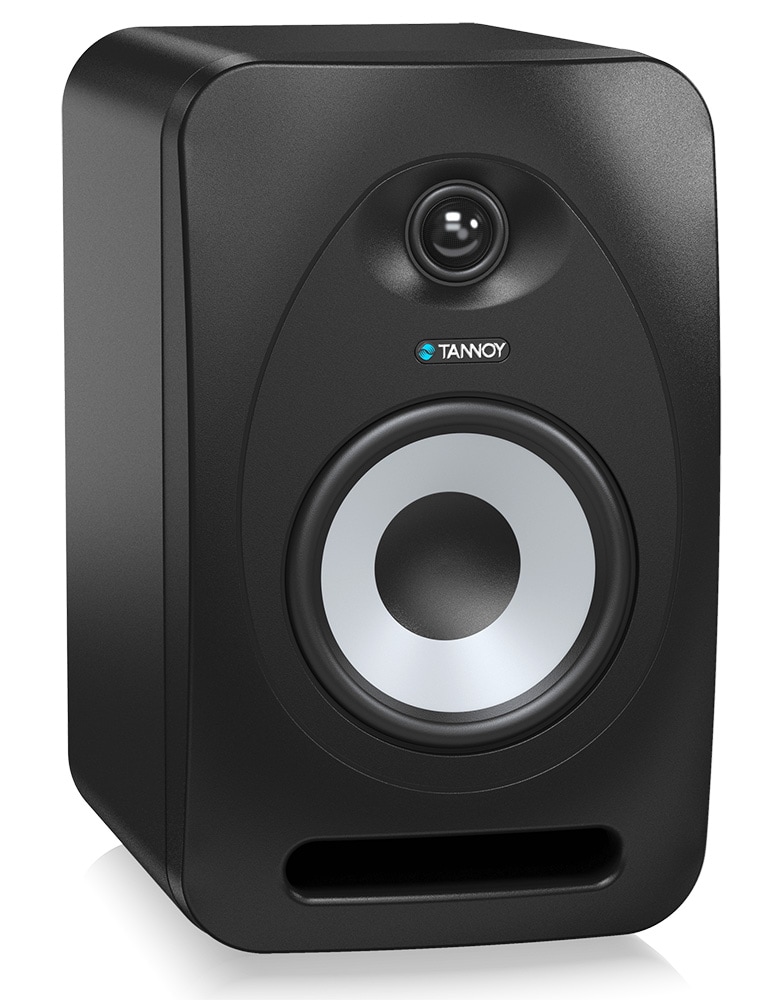

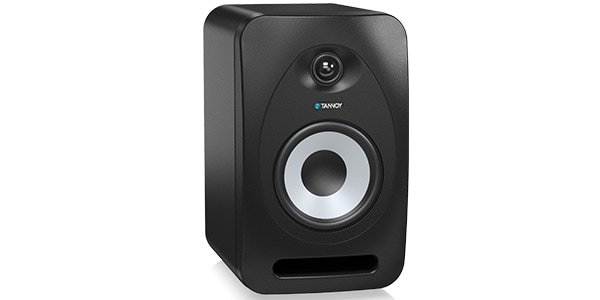

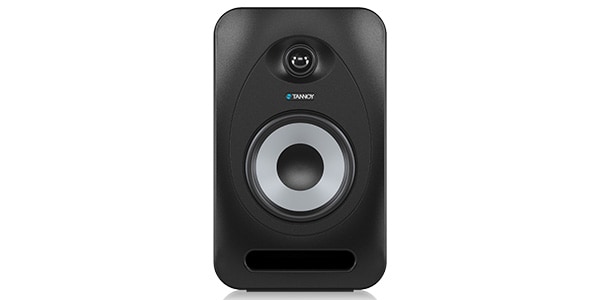

TANNOY / Reveal 502

The Reveal 502 is a studio monitor featuring a 75W output and a 5-inch woofer, delivering the traditional TANNOY sound. Optimal setup is easy with its 3-position EQ control. An AUX LINK input allows for direct connection of a music player.

■Reveal 502: Active Studio Monitor

The Reveal 502 is a studio monitor that combines the legendary Tannoy sound, backed by 87 years of experience, with practical features in a refined enclosure.

? Equipped with a 5-inch ultra-high-efficiency woofer and a 1-inch high-precision tweeter

? 75 W custom-tuned bi-amp module

? AUX LINK function for music players

■Superior Clarity Across All Music Genres

The Reveal 502 delivers overwhelmingly superior clarity across all music genres. Regardless of genre differences, such as live instrumental performances or electronic music, it reveals the true character of the mix with uncompromising honesty.

■Wide Sweet Spot Ensured by Skillful Voicing

The active crossover filter, custom-tuned by Dr. Paul Mills of Tannoy, boasts exceptional timing accuracy. With its wide sweet spot, it not only allows you to move around your workspace without losing the stereo image of your mix, but it also delivers excellent sound to those present during the mixdown.

■Easy Setup with AUX LINK

Even with studio monitors, there are frequent occasions to play regular music in addition to mixdowns. The Reveal 502 allows you to connect a music player directly using the included mini-jack cable, without the need for external equipment.

■Main Features

* Direct connection to music players/smartphones/tablets

* 75 W bi-amp module and active crossover filter for a balance of power and clarity

* Balanced and unbalanced inputs

* Volume/EQ control

* Rubber-padded speaker base

* 5-inch custom high-efficiency LF driver

* 1-inch soft dome tweeter

* Front port design for optimized bass response and wall-hugging placement

■Technical Specifications

* Frequency Response: 49-43 kHz

* Maximum Output Sound Pressure Level: 108 dB

* Bi-amp Output, RMS

LF/Midrange: 50 W

HF: 25 W

THD: < 0.7%

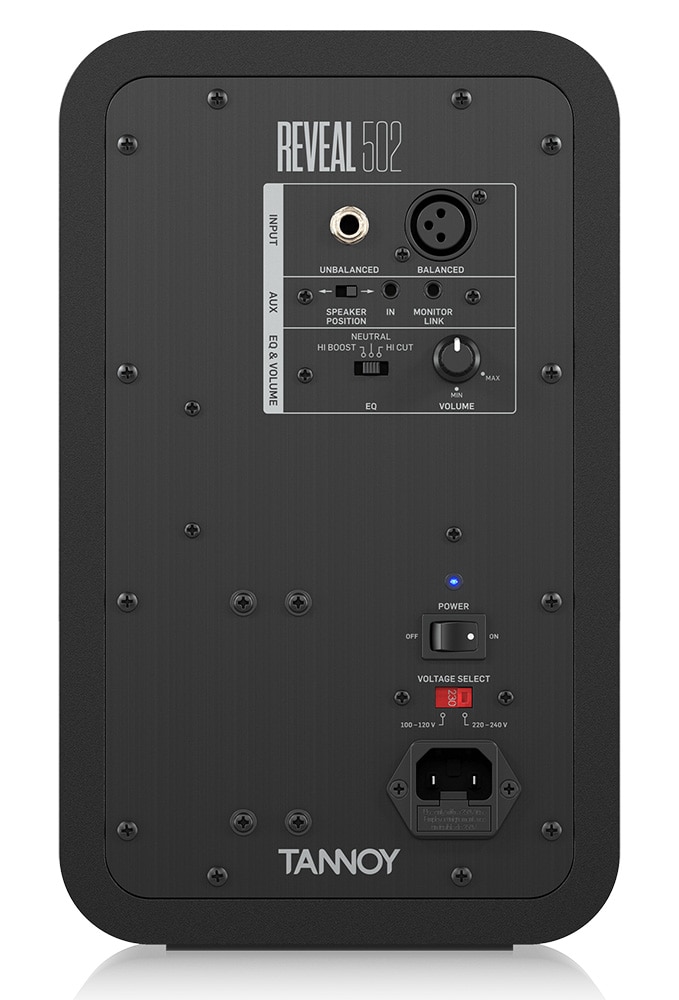

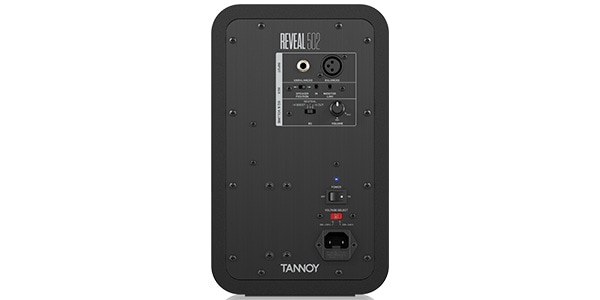

■ Input Connectors/Impedance

* Balanced: XLR, 20 kOhms

* Unbalanced: 1/4"" standard jack, 10 kOhms

* AUX Link: 1/8"" mini jack, 10 kOhms

■Output Connector

AUX Link: 1/8"" Mini Jack

■EQ Setting Options

Neutral/High Boost/High Cut (+/- 1.5 dB HF Boost/Cut)

■Crossover Frequency: 2.3 kHz

■Power Supply: 100-120 V or 200-240 V (50/60 Hz)

■Maximum Power Consumption: 120 W

■Low Frequency Alignment: Optimized Front Port

■Dimensions (H x W x D): 300 x 184 x 238 mm (H x W x D)

LF/Midrange Driver: 5-inch (130 mm)

HF Driver: 1-inch (25 mm) Soft Dome

■Fuse:

100-120 V: T1AL / 250 V

200-240 V: T500 mAL / 250 V

■Material:

Body: MDF

Woofer: Multi-fiber paper cone

Tweeter: Soft dome

■Accessories: Power cable, manual, AUX Link cable (5 m)

■1 unit
