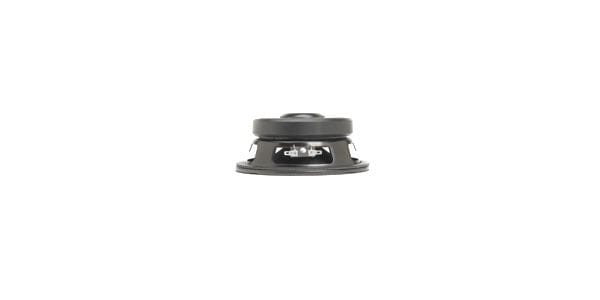

EMINENCE/ALPHA-6A 8Ω PA speaker replacement woofer

EMINENCE / ALPHA-6A 8Ω PA speaker replacement woofer

Variations

This is the ALPHA-6A, a replacement woofer from the American Standard Series by the American brand EMINENCE, specifically for 8Ω 200W speakers. The frame is an economical stamped chassis, making it a highly recommended model with excellent cost performance.

スピーカーのユニットは簡単に交換することができます。CLASSIC PRO の SR用スピーカー、CSP8 を使って、ウーハーユニットを交換してみましょう。リード線は様々な取り付け方がある-ので、＋／－を十分確かめてから接続しましょう。

■Diameter: 6.5""
■Impedance: 8Ω
■Power Handling: 200W

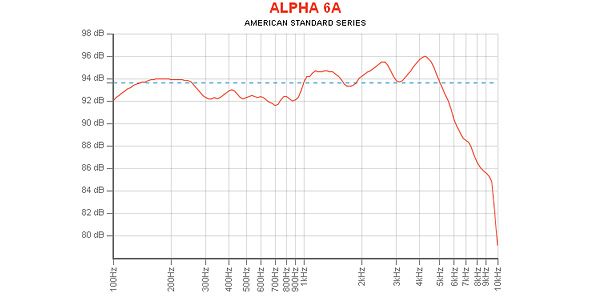

■Frequency Range: 95Hz - 6kHz
■Sensitivity (1W/1m): 93.6dB
■Magnet: Ferrite
■Dimensions: 167.4mm x 167.4mm x 71.1mm
■Weight: 1.86kg
■Other:
■Magnet Weight: 0.57kg
■Voice Coil: 1.5""
■Voice Coil: Copper voice coil
■Coil Former: Polyimide former
■Basket: Pressed steel basket
■Cone: Paper cone
■Edge: Cloth cone edge
■Dust Cap: Solid composition paper dust cap
■Baffle Diameter: 143.5mm
■Threaded Hole Size: 5.8mm
■Diameter Between Threaded Holes: 153.9mm Mounting Holes B.C.D.

■American Standard Series
This model offers excellent cost performance thanks to its economical stamped chassis frame. With 12 unique models, it can be used for a wide range of applications. It offers a price unmatched by other companies' speaker lineups.

■EMINENCE
Founded in 1966 in Kentucky, USA, the company still maintains its own factory there, producing high-quality guitar and PA speaker units that impress even the most demanding professionals. The company's hit models, ""Tonker"" and ""Legend,"" as well as the signature model ""EJ1250"" named after tone-conscious guitarist Eric Johnson, are also popular.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling. However, when actually paired with a speaker, there may be slight misalignments in the screw holes or baffle size, requiring modification. We do not inspect or guarantee the installation of woofer units. Thank you for your understanding.

*When we provide repairs/support, we generally do not provide replacement devices. In the event of a malfunction, please return the device to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
