EMINENCE / DELTA-10A-2

メーカーサイト商品ページ

Variations

The DELTA-10A-2 is a 10" replacement woofer ideal for low, mid, and midrange frequencies for PA applications and bass amplifiers. Ideal for bass reflex monitors and satellite speakers.

Diameter: 10"
Impedance: 8 ohms
Allowable Input: 850W

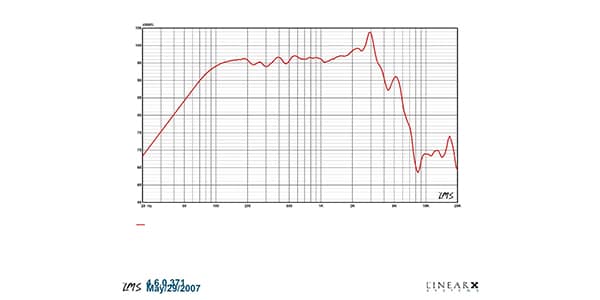

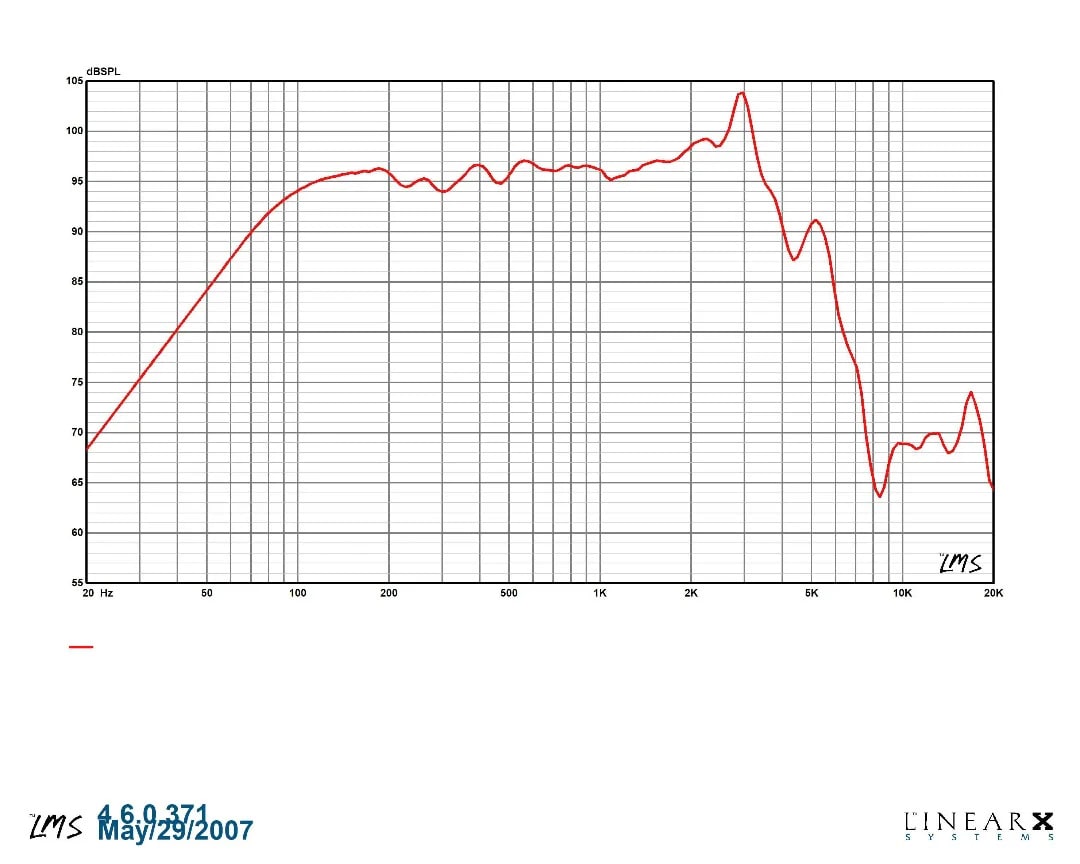

Frequency Range: 50Hz - 3.7kHz
Sensitivity (1W/1m): 96.7dB
Magnet: Ferrite
Size：256.3 mm x 256.3 mm x 108 mm
Weight: 4.9 kg
■Others:
Magnet weight: 1.58 kg
Voice coil: 2.5 inch
Voice coil: Aluminum voice coil
Coil former：Polyimide former
Basket：Pressed steel basket
Cone: Paper cone
Edge: Cloth cone edge
Dust cap: Solid composition paper dust cap
Baffle diameter：233.2 mm
Screw hole size: 6.4 mm
Diameter between screw holes：245.4 mm Mounting Holes B.C.D.

American Standard Series
The American Standard Series is a cost-effective model manufactured with an economical punched chassis frame. 12 unique models are available for a wide range of applications. The American Standard Series offers a low price point not found in the speaker lineups of other companies.

■EMINENCE
Founded in 1966 in Kentucky, USA. The company still has its own factory in Kentucky, and has been producing high quality guitar and PA speaker units that have made professionals gasp with delight. The company's popular "Tonker" and "Legend" models have been big hits, as well as the "EJ1250," a signature model named after Eric Johnson, a guitarist who is particular about his tone.

*Woofer units can usually be replaced if the size, impedance, and allowable input are similar to those of the model. However, when actually matching the woofer unit to the speaker, there is a possibility that the screw holes and baffle size may not match slightly, and some modification may be required. We do not provide installation confirmation or installation warranty for woofer units. Please understand this beforehand.
