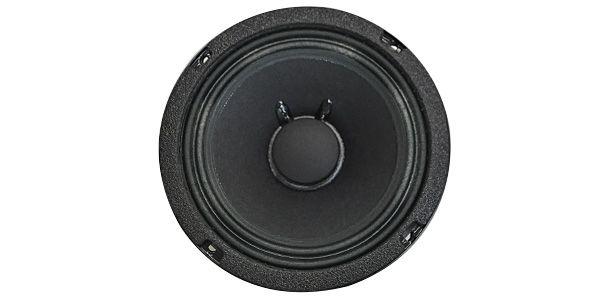

EMINENCE / ALPHA-6C 4Ω PA speaker replacement woofer

This is the ALPHA-6C, a replacement woofer from the American Standard Series by the American brand EMINENCE, specifically for 4Ω 200W speakers. The frame is an economical stamped chassis, making this a highly recommended model with excellent cost performance.

■ Diameter: 6.5""
■ Impedance: 4Ω
■ Power Handling: 200W

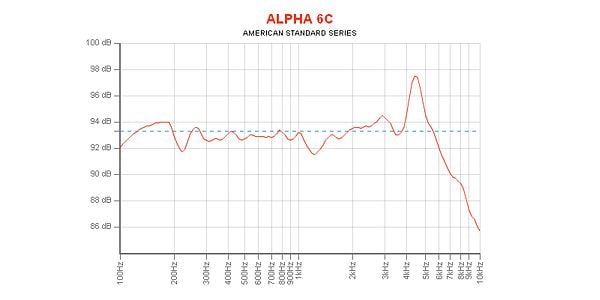

■ Frequency Range: 95Hz - 5.5kHz
■ Sensitivity (1W/1m): 93.3dB
■ Magnet: Ferrite
■ Size: 167.4mm x 167.4mm x 71.1mm
■ Weight: 1.86kg
■ Other:
■ Magnet Weight: 0.57kg
■ Voice Coil: 1.5""
■ Voice Coil: Copper voice coil
■ Coil Former: Polyimide former
■ Basket: Pressed steel basket
■ Cone: Paper cone
■ Edge: Cloth cone edge
■ Dust Cap: Solid composition paper dust cap
■ Baffle Diameter: 143.5mm
■ Screw Hole Size: 5.8mm
■ Mounting Hole Diameter: 153.9mm B.C.D.

■American Standard Series
This cost-effective model features an economical stamped chassis frame. With 12 unique models, it can be used for a wide range of applications. It offers a price unmatched by other companies' speaker lineups.

■EMINENCE
Founded in 1966 in Kentucky, USA, the company still operates its own factory there, producing high-quality guitar and PA speaker units that impress even the most demanding professionals. Popular products include the smash-hit ""Tonker"" and ""Legend,"" as well as the signature model ""EJ1250"" named after tone-conscious guitarist Eric Johnson.

*Usually, woofer units can be replaced with models of similar size, impedance, and power handling. However, when actually paired with a speaker, there may be slight misalignments in the screw holes or baffle size, requiring modification. We do not inspect or guarantee the installation of woofer units. Thank you for your understanding.

*When we provide repairs/support, we generally do not provide replacement devices. In the event of a malfunction, please return the device to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
