SHURE / BLX24RJ/SM58-JB

The BLX Series vocal wireless system is popular in a wide range of applications thanks to its simple operation and excellent sound quality. The handheld transmitter is equipped with an SM58-type head. The QuickScan function allows you to quickly and easily set the channel you want to use.

■System
■Range: 91m (line-of-sight, varies depending on wave position)
■THD: 0.5%, typical (ref. ±33kHz deviation, 1kHz tone)
■Dynamic Range: 100dB, A-weighted, typical

■BLX2/SM58 Handheld Transmitter
■Audio Output Level:

0dB: -20dBV max

-10dB: -10dBV max
■Gain Adjustment Range: 10dB
■RF Transmitter Power: 10mW
■Dimensions: 224 x 53mm
■Weight: 218g (excluding batteries)
■Exterior: Molded ABS
■Power Source: AA, 1.5V, Alkaline
■Battery Life: Up to 14 hours

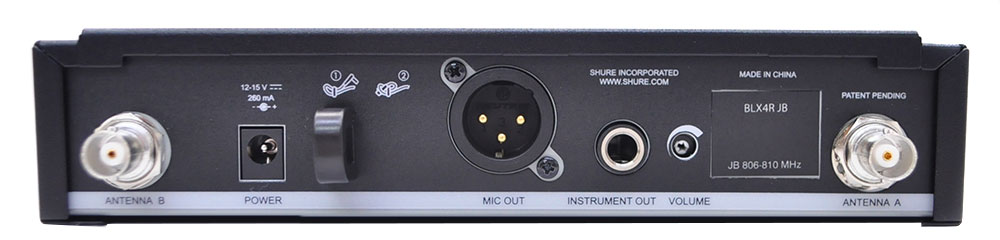

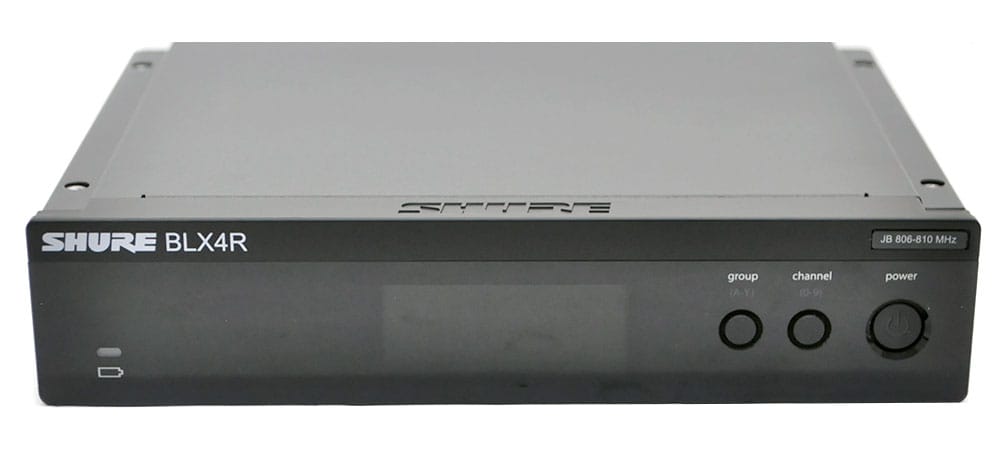

■BLX4R Receiver
■Output Impedance
・XLR Connector: 200Ω
・6.35mm Phone Jack: 50Ω
■Audio Output Level (Ref. ±33kHz deviation, 1kHz tone)
・XLR Connector: -20.5dBV (100kΩ load)
・6.35mm Phone Jack: -13dBV (100kΩ load)
■RF Sensitivity: -105dBm, typical for 12dB SINAD
■Image Rejection: >50dB, typical
■Dimensions: 50 x 198 x 163 mm
■Weight: 998g (without antenna)
■Exterior: Molded ABS, steel
■Power Source: 12-15VDC @ 260mA, externally supplied
