SHURE / BLX14R/SM35

SHURE製のボディパック型送信機BLX1、ワイヤレス受信機BLX4、コンデンサーマイク35、3点セット。セットアップと操作を簡単に行うことが可能です。

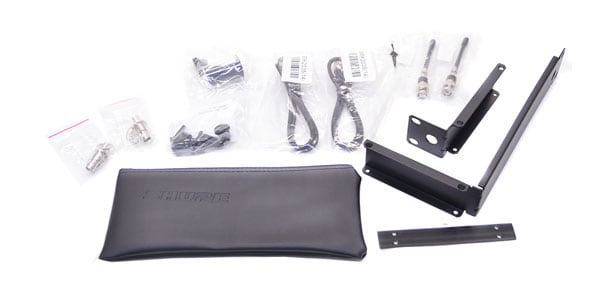

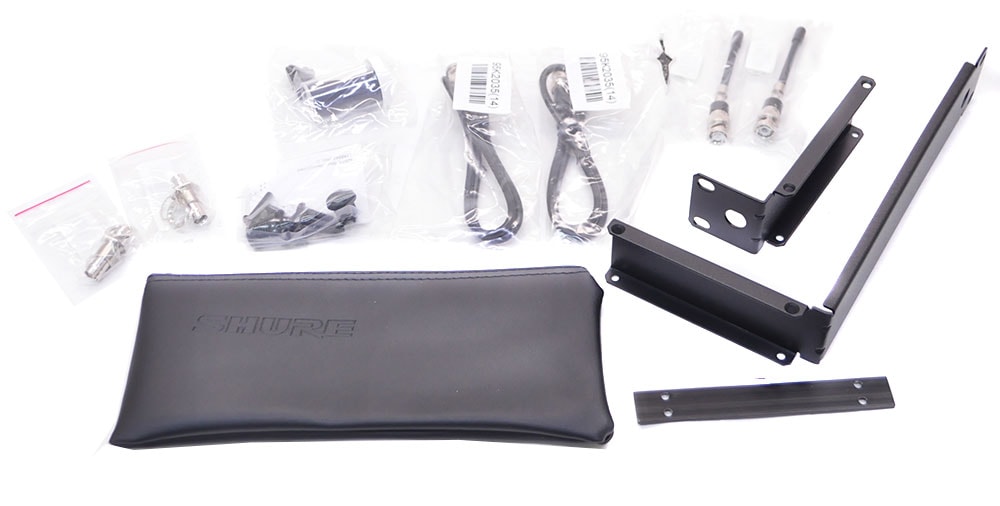

＜Set contents＞
・ SM35 performance headset cardioid condenser microphone
・ BLX1 bodypack transmitter
・ BLX4R Receiver mounted on metal rack

＜BLX1 bodypack transmitter＞
・ Audio output level
Maximum gain -16 dBV maximum
Minimum gain (0 dB) +10 dBV maximum
・ Gain adjustment range: 26 dB
・ Input impedance: 1 MΩ
・ Output of RF transmitter: 10 mW, standard
※ Varies by region
・ Size: 110 mm x 64 mm x 21 mm (H x W x D)
・ Weight: 75g (without batteries)
・ Exterior: Molded ABS
・ Power supply: 2 LR6 AA battery, 1.5 V, alkaline
・ Battery life: Up to 14 hours

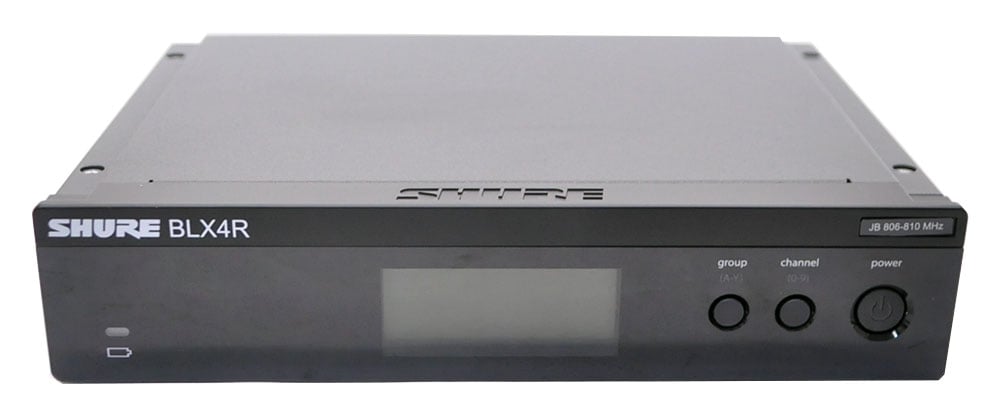

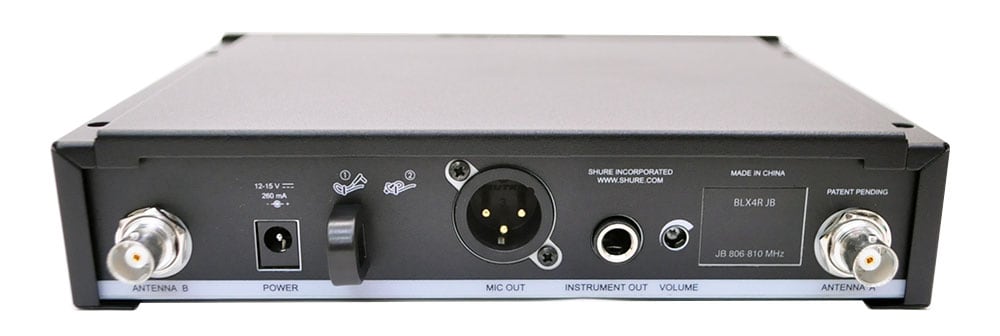

＜BLX4R Wireless receiver＞
・ Output impedance
XLR connector: 200 Ω
6.35 mm phone jack: 50 Ω
・ Audio output level
THD (Total Harmonic Distortion) Ref. ± 33 kHz deviation, tone 1 kHz
XLR connector: -20.5 dBV (to 100 kΩ load)
6.35 mm phone jack: -13 dBV into a 100 kΩ load
・ RF sensitivity: -105 dBm 12 dB For SINAD, standard
・ Image suppression ratio: > 50 dB, standard
・Size: 50 mm X 198 mm X 163 mm (H x W x D)
・ Weight: 998 g without antenna
・ Molded ABS
・ Power requirements: 12-15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip plus)

＜SM35＞
・ Type: Condenser
・ Directivity pattern: Cardioid
・ Minimum reproduction frequency band: 40 Hz
・ Maximum reproduction frequency band: 20 KHz
・ Sensitivity (dBV / Pa): -59 dBV / Pa
・ Weight: 72 g

・ Output impedance: 2400 Ω @ 1 kHz
・ S / N ratio: 55 dB: @ 1 kHz
・ Maximum SPL: 153.0 dB
1000 Ω load @ 1% THD
Dynamic range: 114.0 dB
@ 1 kHz 1000 Ω load
・ Equivalent output noise: 39 dB
Typical, A weight
・Power supply: +5 VDC (standard), 10 V maximum (DC bias)
・Polarity: With positive pressure applied to the diaphragm
・Positive voltage is generated at pin 3
・Cable: 1.1 m
・Connector : TA4F
