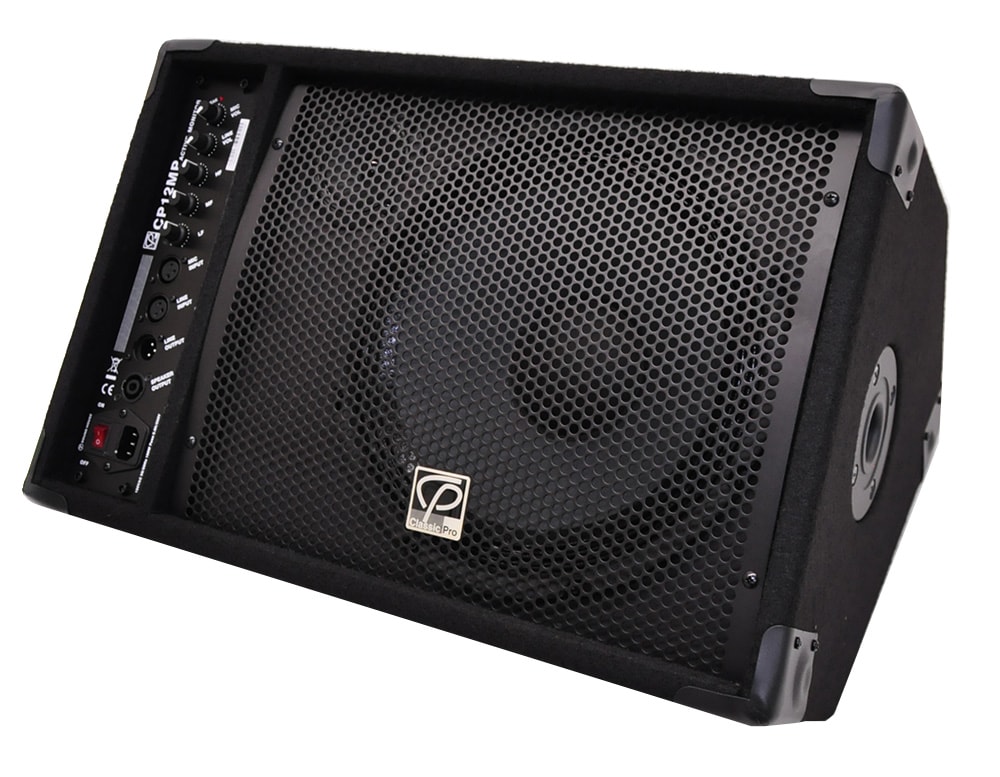

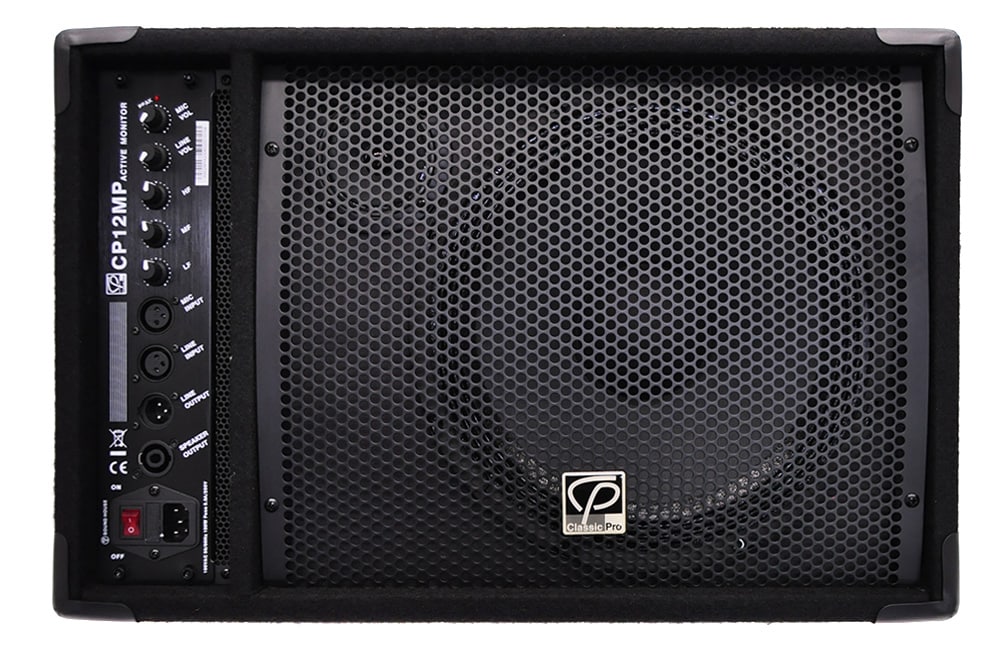

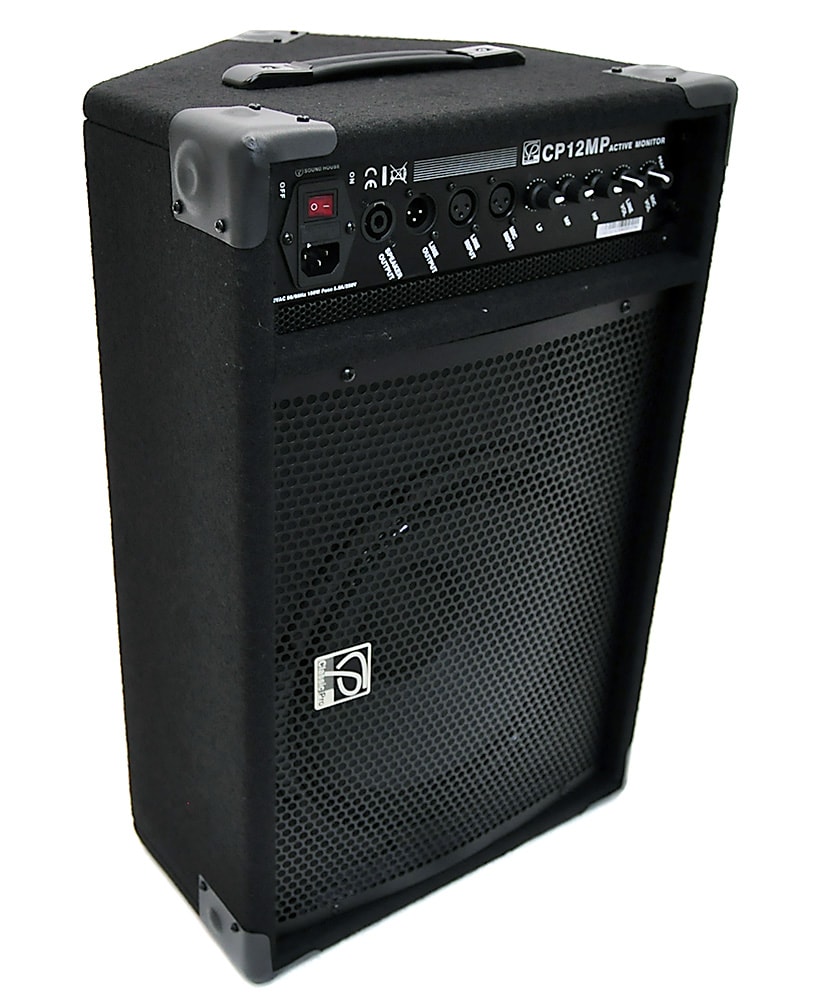

CLASSIC PRO / CP12MP PA Speaker

This powered monitor can also accommodate external passive speakers. Its luxurious carpet finish offers incredible cost performance. Its sound character ranges from powerful low frequencies to solid high frequencies.

■Powered Speaker
■Woofer: 12""
■Driver: 3"" Cone Tweeter
■Frequency Response: 80Hz - 13kHz (+/-3dB)
■Output: 150W (RMS), 210W (PEAK)
■External Speaker Output: 100W (4Ω)
■Maximum SPL: 115dB
■Input/Output Terminals: 1 Female XLR (MIC Input), 1 Female XLR (LINE Input), 1 Male XLR (LINE Output), Speakon (SPEAKER OUTPUT)
■Controls: 1 Microphone Volume, 1 Line Volume, HF, MF, LF
■Dimensions: 36.1cm W x 56.0cm H x 36.9cm D
■Power Supply: AC 100V 50/60Hz
■Power Consumption: 150W
■Weight: 16kg
*Sold individually.

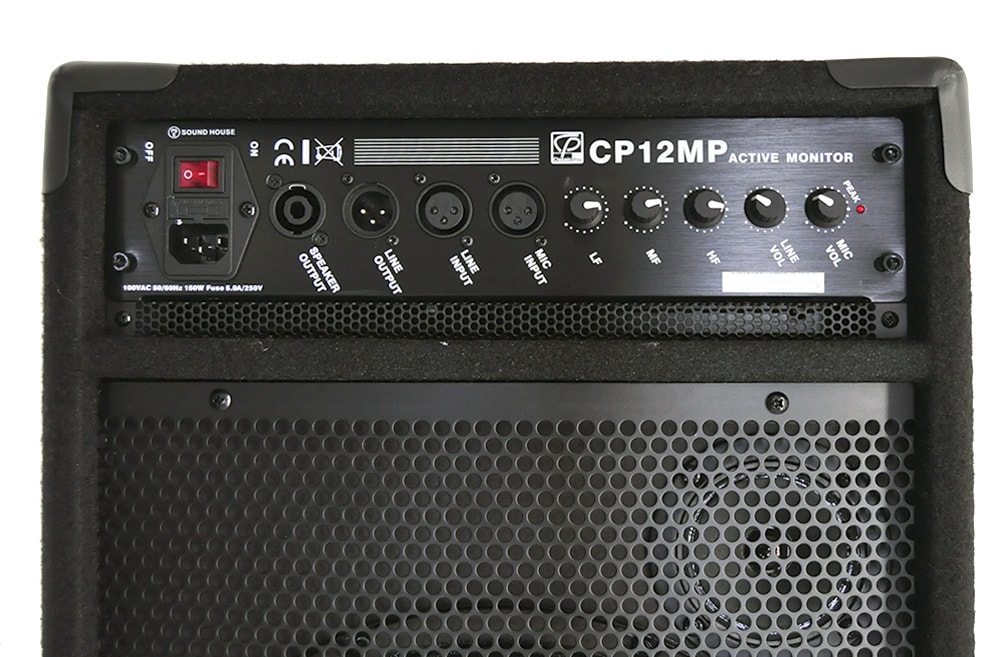

・ SPEAKER OUTPUT
[LF] Output for connecting passive speakers (affected by the MIC VOL/LINE VOL knob)
・LINE OUTPUT
[LF] Output for connecting other powered speakers, etc. (affected by the MIC VOL/LINE VOL knob)
・LINE INPUT
[LF] Line level input
・MIC INPUT
Microphone level input
・LF
[LF] Control for attenuating or boosting low frequencies (±6dB)
・MF
Control for attenuating or boosting mid-range frequencies (±6dB)
・HF
Control for attenuating or boosting high frequencies (±6dB)
・LINE VOLUME
[LF] Control for adjusting the volume of the line input
・MIC VOLUME
[LF] Control for adjusting the volume of the microphone input
