UNIVERSAL AUDIO / 4-710D

A mic preamp equipped with four 710 Twin-Finity mic preamps and ADAT and AES/EBU digital outputs.

■ Microphone preamplifier
■ 4ch
・4ch 710 Twin-Finity mic preamp

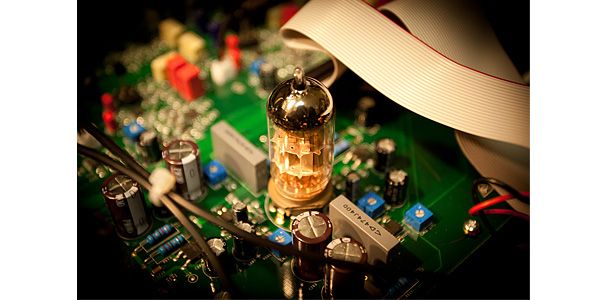

・285V Class-A tube/solid state blend is possible
・Newly designed 1176 style compression circuit for each channel
・8ch high-quality 24-bit A/D conversion
・192kHz sample rate
・ADAT, AES/EBU digital output
・8ch soft limiter

[Preamplifier]
・4 710 Twin-Finity Microphones/Line Preamps
・Dual Pass 285V-Class A Tube, Transimpedance Solid State Blendable
・Newly designed 1176 style compression circuit
・Each channel is equipped with Hi-Z input terminal and send/return terminal.
・VU meter that displays input, gain, and gain reduction
・48V phantom power
・75Hz low cut filter
・Phase inversion switching

[AD conversion]
・High quality 24-bit 8ch AD conversion
・Selectable up to 192kHz

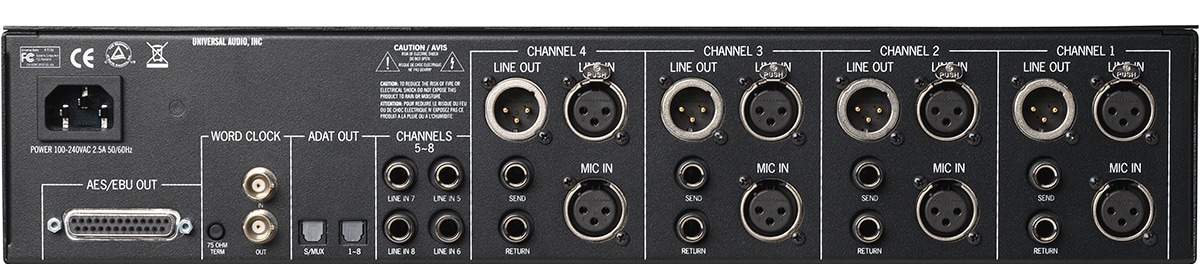

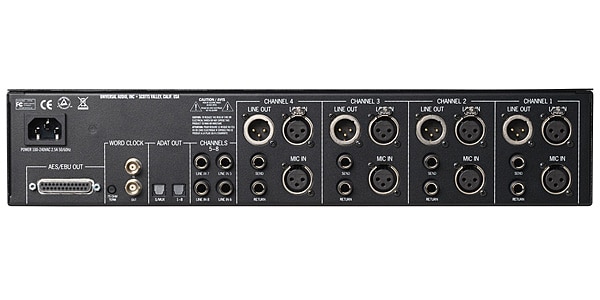

・Digital output is ADAT (optical), AES/EBU (DB-25 connector)
・8ch soft limiter
・75Ω BNC work clock I/O

■ Dimensions: 48.2 x 8.9 x 30.5 cm
■ Weight: 5.2kg
■ Power supply: 100VAC-240VAC, 50/60 Hz, auto-switching
