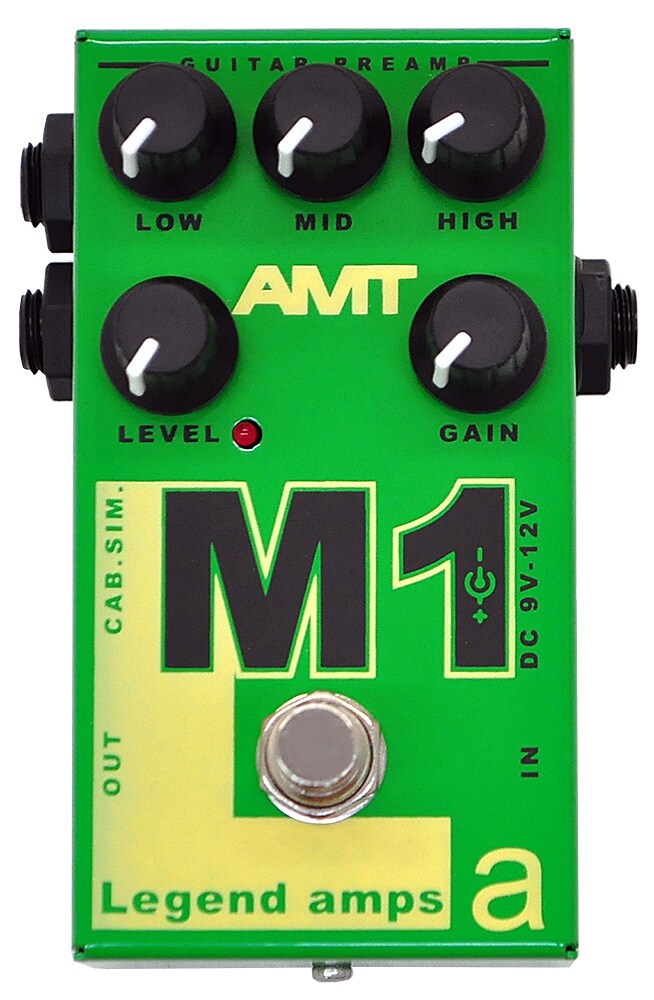

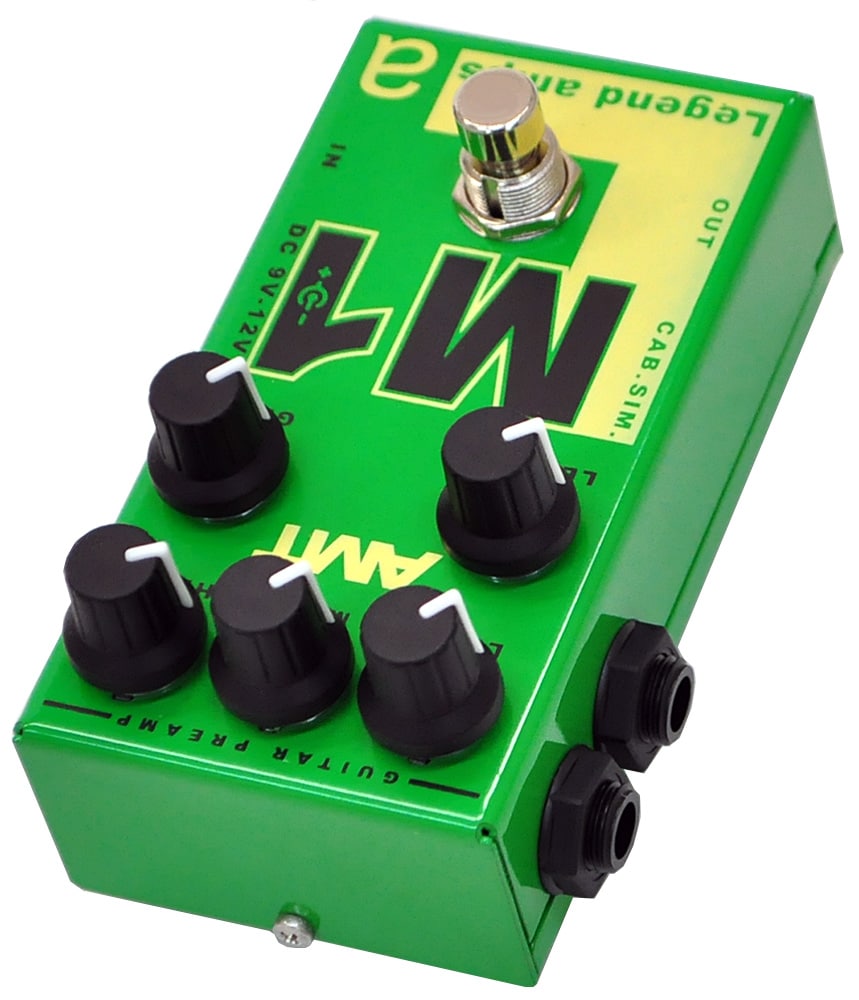

AMT ELECTRONICS / M-1

This amp simulator/preamp pedal recreates the sound of the Marshall JCM-800 preamp. By connecting it to the FX RETURN of your guitar amp, you can create sounds that are not affected by the amp's characteristics. This model is recommended for those who want to create their own sound with any amp.

[直輸入品][Direct Import]

■Guitar Amp Simulator/Preamp
This pedal-type preamp series perfectly reproduces the preamp sound of famous guitar amps using compact analog circuitry. It also features a built-in cabinet emulator, allowing for silent recording.

■Marshall JCM-800 Type
The M-1 emulates the Marshall JCM-800, a legendary instrument that shines brightly in rock history. It faithfully recreates that sweet, thick, and lustrous distortion sound in a compact pedal.

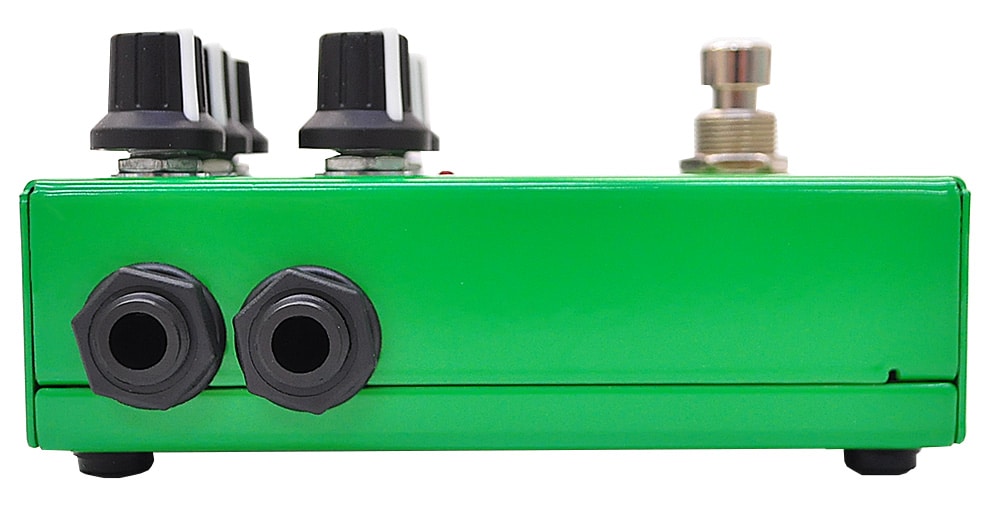

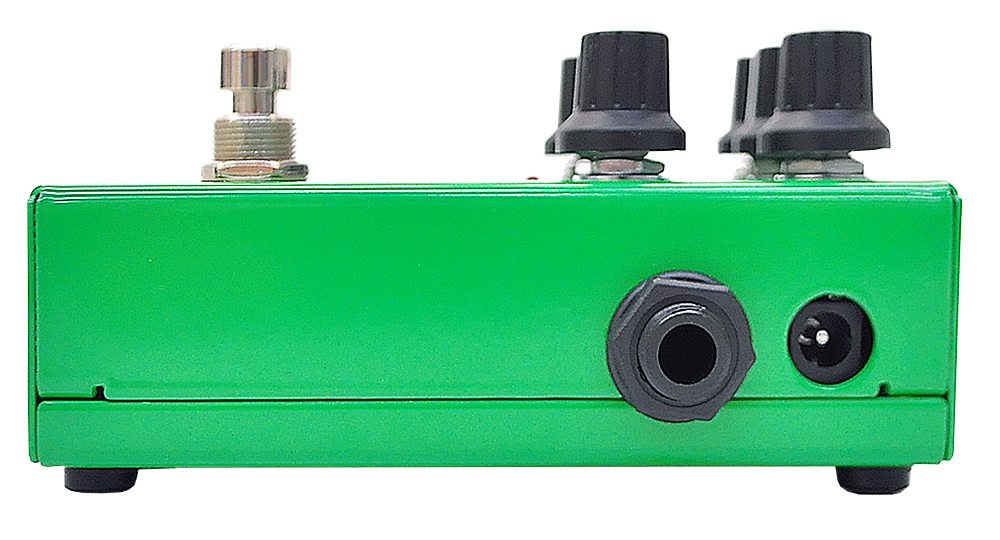

■Connections
・IN:
Connect your guitar here.

・OUT:
Provides output from the preamp. Connect to a guitar amp's FX RETURN or power amp.

・CAB.SIM.:
Outputs the preamp output with cabinet emulation added. Can be connected directly to a mixer, interface, etc.
When this jack is not connected, the power consumption is automatically reduced from 6mA to 4mA, providing excellent power savings.

■Specifications
・True Bypass
・Power Supply: AC adapter/DC9V-12V center negative (sold separately) or battery
・Maximum +10dB gain
・Energy-saving mode: When the ""CAB.SIM."" terminal is not connected, current consumption: 6mA → 4mA
