ART / PROMIX

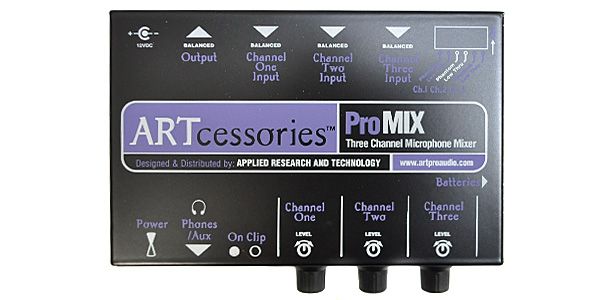

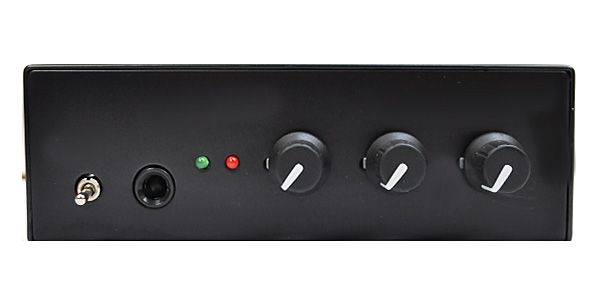

This 3-channel mixer with built-in mic preamps is ideal for situations where your mixer doesn't have enough mic preamps or you want to save channels and input mics. Each mic input has built-in phantom power (12V), a low-cut filter, and level control. It also has balanced line outs, headphones, and AUX outs for independent monitoring.

[直輸入品][Direct Import]

■3-channel microphone mixer
■Equipped with headphones and AUX out
■This 3-channel mixer with built-in microphone preamps is ideal for situations where your mixer does not have enough microphone preamps or you want to save channels and input microphones. Each microphone input has built-in phantom power, a low-cut filter, and level control. In addition to balanced outputs, it also has headphones and AUX outs, allowing you to monitor independently.

■About the DIP switches
1: Channel 3 low cut-through ON/OFF (ON: Low cut OFF, OFF: Low cut ON)
2: Channel 3 phantom power ON/OFF (ON: Phantom ON, OFF: Phantom OFF)
3: Channel 2 low cut-through ON/OFF (ON: Low cut OFF, OFF: Low cut ON)
4: Channel 2 phantom power ON/OFF (ON: Phantom ON, OFF: Phantom OFF)
5: Channel 1 low cut-through ON/OFF (ON: Low cut OFF, OFF: Low cut ON)
6: Channel 1 phantom power ON/OFF (ON: Phantom ON, OFF: Phantom OFF)
