dbx / dB10

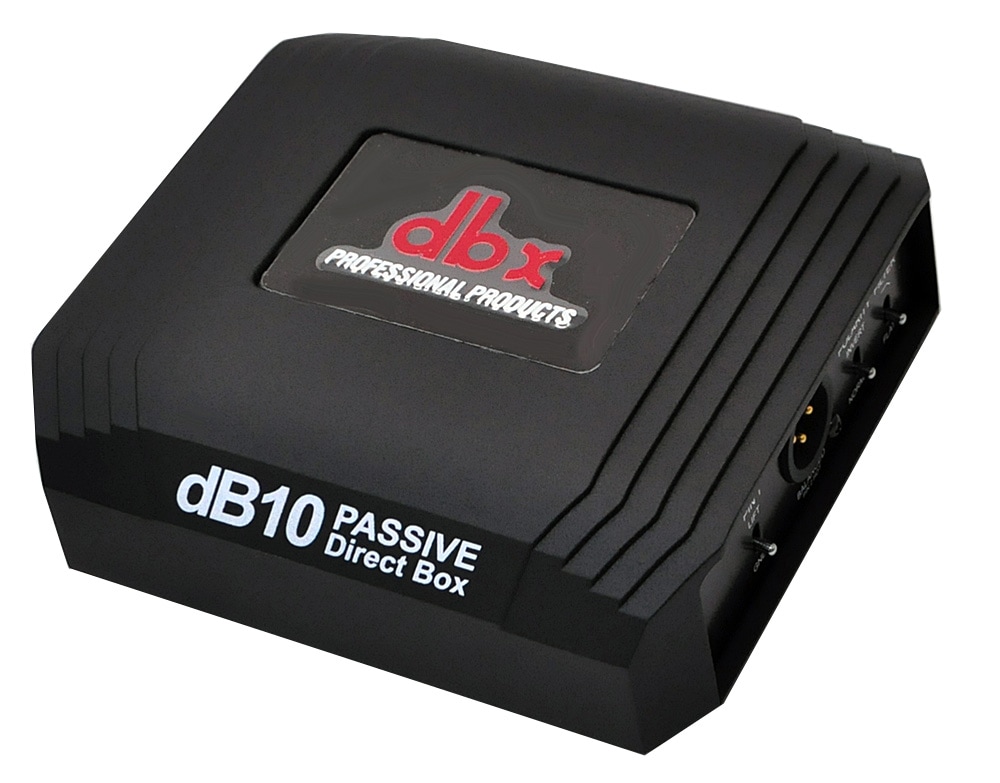

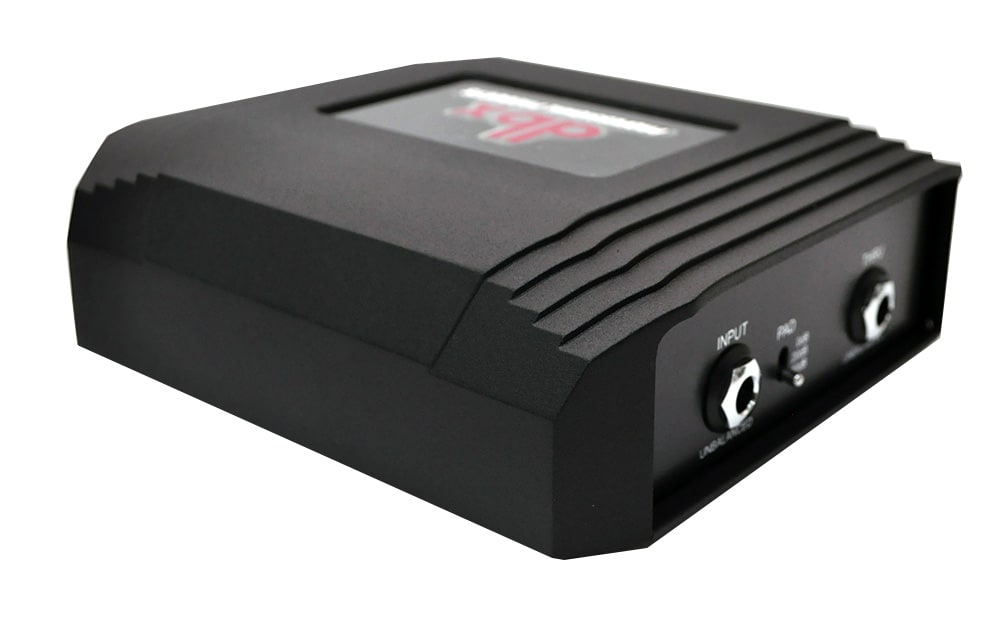

DBX / dB10. Direct box with high sound quality and excellemnt durability. Passive type.

■ Direct box
■ Passive type

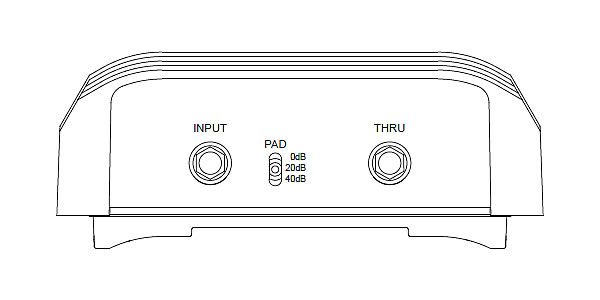

■ Input terminal: TS phone

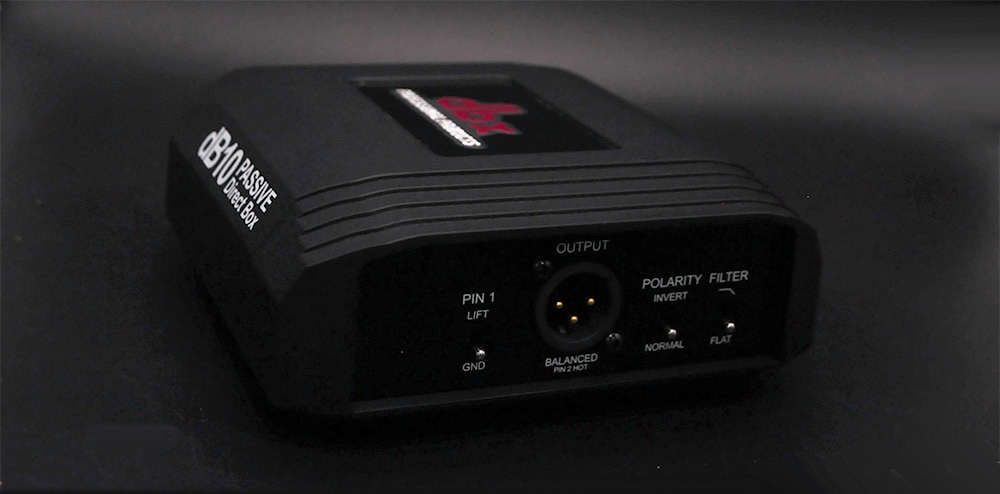

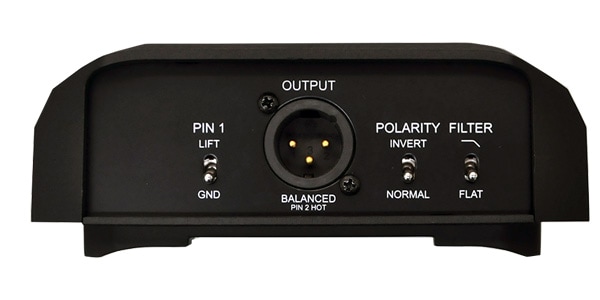

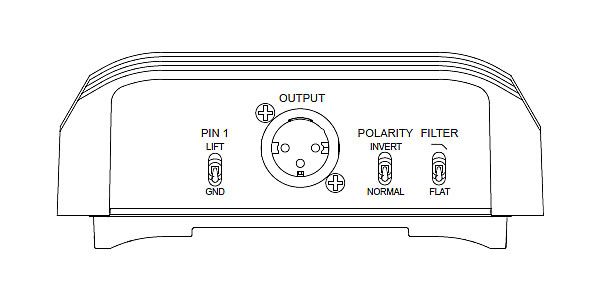

Output terminal: XLR (main), TS phone (Thru)
■ Pad: 0/20 / 40db 3 step switch
■ Low-pass filter: 6kHz (only available for the 40dB pad), switch type
■ Input impedance: 80kΩ (600Ω load), 270kΩ (2kΩ load), 13MΩ (100kΩ load)
■ Main output impedance: 600Ω, balanced
■ Polarity: Normal / Negative phase, switch type
■ Frequency characteristics: 10Hz-80kHz
■ Ground: Ground / lift, switch type
■ Dimensions: 138 × 56 × 148mm
■ Weight: 0.7kg
