TOA / M-243

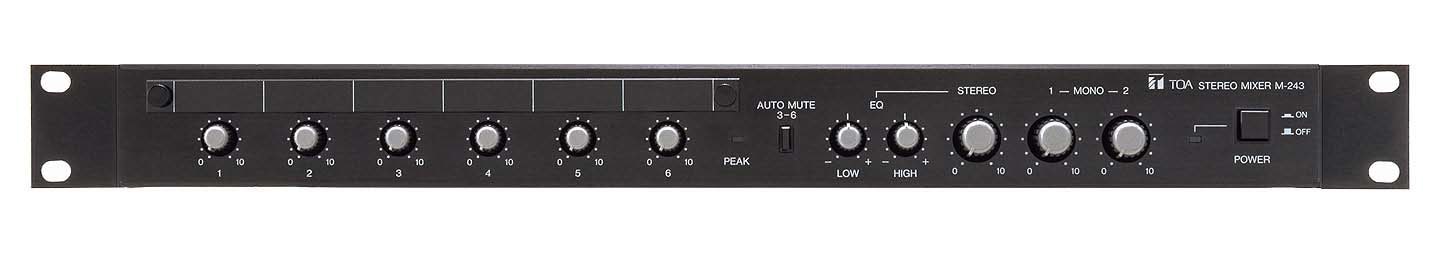

The TOA M-243 is a rack-mountable stereo mixer with 2 mono inputs, 4 stereo inputs, 1 stereo output, and 2 mono outputs. It is a 1U-sized unit that can be mounted in an EIA-compliant rack.

■ 1U Rackmount Mixer

＜＜Specifications＞＞

■ Power Supply

AC 100 V 50/60 Hz

■ Power Consumption

10 W

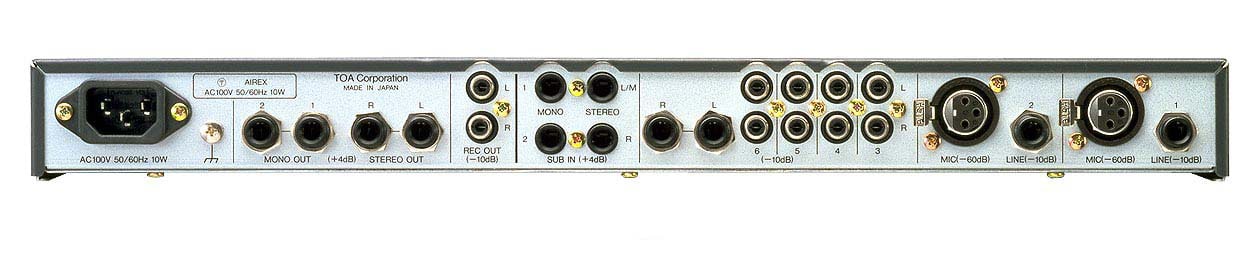

■ Inputs

Mono Input (CH1-2): LINE/MIC Selectable

LINE: -10 dB* 10 kΩ Unbalanced Horn Jack

MIC: -60 dB* 1 kΩ Balanced XLR-3-31 Equivalent (MIC can accommodate 20 dB PAD insertion)

Stereo Input (CH3-6): -10 dB* 10 kΩ Unbalanced RCA Pin Jack (CH6 also has a horn jack terminal)

Stereo Sub-Input (L, R): +4 dB* 50 kΩ Unbalanced Horn Jack (When R input is open: L input → L, R output)

■ Outputs

Stereo Output (L, R): +4 dB* 1 kΩ Unbalanced Horn Jack

Mono Output (1, 2): +4 dB* 1 kΩ Unbalanced Horn Jack

REC Output (L, R): -10 dB* 1 kΩ Unbalanced RCA Pin Jack

■Frequency Response

20 Hz to 20 kHz +1 dB, -2 dB

■Distortion

0.01% or less (1 kHz, Rated Input/Output)

■Noise Level (JIS-A)

Total Volume Control Minimum: Stereo Output (L, R) -105 dB* or less

Mono Output (1, 2) -98 dB* or less

Stereo, Mono (1, 2) Volume Control Maximum: Stereo Output (L, R) -94 dB* or less

Mono Output (1, 2) -95 dB* or less

■Finish

Panel: Aluminum, Black (Munsell N1.0 approximate color), Anodized

Case: Pre-coated steel plate, Black (Munsell N1.0 approximate color)

■Dimensions

483 (W) × 46 (H) × 301.8 (D) mm

■Weight

3.8 kg

■Accessories

Rack mounting screws…4, Rubber feet…4, Small blue knobs…2, Small red knobs…2, Large blue knobs…2, Large red knobs…2, Power cord (2 m)…1
