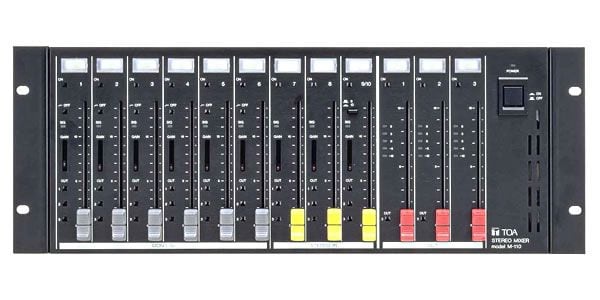

TOA / M-110

The M-110 is a rack-mount stereo mixer manufactured by TOA. It uses slide faders for all input and output volume control. Mono inputs have built-in limiters. The connectors on the rear panel have been moved to the top, allowing for cable connections from either the rear or top.

■Stereo Line Mixer

■Rackmount Type

■4U

■Inputs: XLR (MIC, LINE switchable), RCA (Stereo, Video)

■Outputs: XLR Phone (1 & 2 Mono, 3 Stereo), RCA (REC OUT, Video)

■Frequency Response: 20-20,000Hz

■Power Supply: AC100V 50/60Hz

■Power Consumption: 33W

■Dimensions: 42W x 17.7H x 13.86D cm

■Weight: 5Kg
