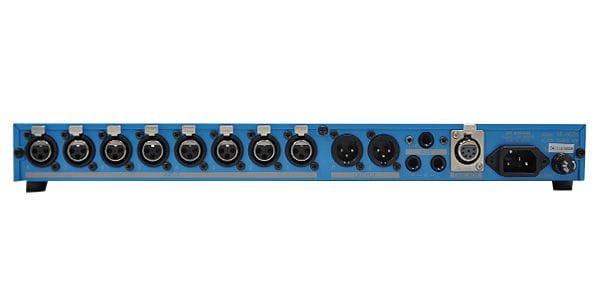

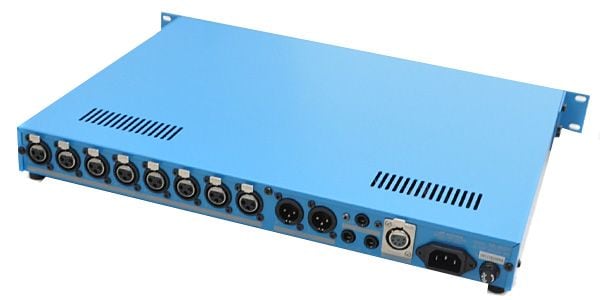

JR SOUND / ML802HII

The ML-802H II is a rack-mount mixer manufactured by JR SOUND. It employs an electronically balanced circuit using the latest circuit technology for the inputs. High-performance output transformers are used for the outputs, achieving excellent signal transmission characteristics and low noise. Its high-quality sound design is suitable for broadcast-level use. All channels are equipped with AUX input/output and pan pots.

■ Rackmount Mixer

■ Line Mixer with Pan Pot, AUX, and No Microphone Amplifier

~From Manufacturer's Website~

【Specifications】

8 Inputs, 2 Outputs

8-Channel Pan Pot

AUX Send, Return L/R

Gain: 20dB/Max 28dB

Frequency Response: 20Hz-20kHz ±0.5dB

VU Meter: 0dB, +4dB, AUX Send Output (Switchable)

Cascaded Input/Output (Optional Cable Used)

Headphone: 100mV 32Ω

Input

● Balanced: XLR-3-31 (20kΩ)

● AUX: Return Input L/R 0dB (Phone Jack)

Output

● Balanced: XLR-3-32 (600Ω)

● AUX: Send Output (Phone Jack)

● Output Level: 0dBm, +4dBm Switchable Maximum 24dBm (1kHz)

● Distortion: 0.05% or less at 1V

● Noise Level: -80dB (DIN, AUDIO)

● Power Supply: AC100V 50/60Hz 20W

● Dimensions: W482mm x H44mm x D330mm
