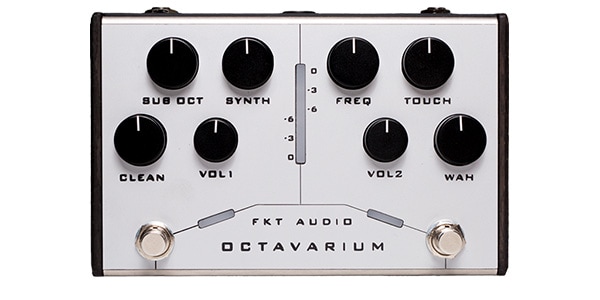

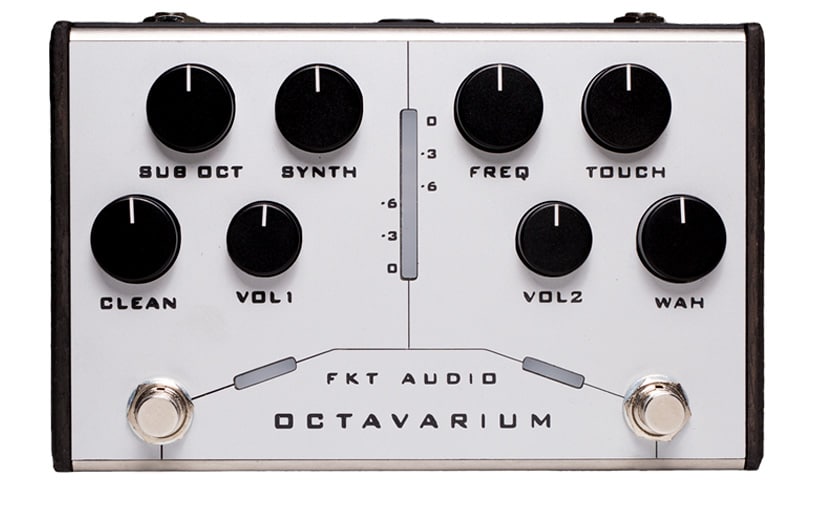

FKT AUDIO / Octavarium-SW フットスイッチセット

This bass pedal combines an octaver and synth on the left side with an envelope filter on the right. Each function can operate independently or simultaneously, allowing for a wide variety of tones. Whether active or passive, you can achieve the perfect sound by adjusting the ""Touch"" knob in response to the input signal and picking strength. Another attractive feature is the illuminated indicator in the center, allowing you to visually see how the pedal responds to your input.

The FKT AUDIO OCTAVARIUM STD is a compact, versatile, and reliable analog octaver. Whether you're using an active or passive instrument, you can achieve the ideal effect by adjusting the ""Touch"" control based on the input signal and picking strength.

[Octaver/Synth]
Soft, rounded sound with accurate, fast tracking. Even when notes are held long, they can be played without any stuttering or wavering. Separate adjustments to the clean and synth volumes allow for a wide range of sound creation and the ideal mix for each instrument.

Controls
Three independent controls + Master Volume
Clean: Clean Level (-silent / +6dB)
Sub Oct: Sub Octave Level (-silent / +6dB)
Synth: Synth Level (-silent / +6dB)
Vol 1: Master Volume

[Envelope Filter]
When combined with the Octaver, this unit creates a full-fledged analog synth bass sound that would normally require multiple pedals. The Envelope Filter has wide frequency and sensitivity (Freq and Touch) controls and can also be used alone. The current version is especially optimized for mid- to low-output passive basses.

Controls
Touch: Adjusts the filter threshold. (Adjust according to picking strength)
Freq.: Adjusts the filter range
Wah: Envelope Level (effect only)
Vol 2: Master Volume

■ Bass octaver/synth/envelope filter
■ Buffered bypass
■ Housing: Stainless steel 304, Sides: Okume wood
■ Input/Output: INPUT / OUTPUT (1/4-inch mono) *No 5-pin connector for channel switch.
■ Power: 9VDC center negative (sold separately)
■ Current consumption: 60mA
■ Weight: 750g
■ Size: 170x110x42mm
