MOOER / GE150 MAX Li

<> The MOOER GE150 MAX Li is a next-generation battery-powered multi-effects unit. It offers 170 effects and eight footswitches for superior operability. It also supports IR/MNRS loading, allowing you to create your own unique sound. It also features an 80-second looper, drum machine, and OTG functionality, providing powerful support for everything from practice sessions to professional performances.

The Mooer GE150 Max Li is a new generation multi-effects unit featuring a new Walking Star design. Its built-in lithium-ion battery allows for unplugged operation on stage.

The GE150 Max Li features eight footswitches for superior on-stage operability and sound quality. It features 55 high-quality amp models recreated using intelligent reverse modeling technology. A total of 170 diverse effects are included, each assigned to nine effect modules, allowing up to nine effects to be used simultaneously. 200 presets can be saved.

You can also load third-party cabinet simulator IRs, allowing you to create your own unique sound using your favorite IRs.

It also supports MNRS amp models, sampled from real amps created and shared via Mooer GE Labs or the GS1000. You can also load amp model GNR files (full amp or preamp) and cabinet model GIR files.

The built-in expression pedal allows for real-time control of various parameters, and the unit also features an 80-second phrase looper, rhythm machine, and tuner, making it ideal for practice and performance.

Connect to a PC via the USB port to edit and manage presets in the editor software, load MNRS amp models and impulses, and output audio to a mobile device via USB-OTG.

■Effect Modules
The GE150 Max Li includes nine effect modules containing 170 different effects, and all nine can be used simultaneously. Each module can be configured to use one effect type.
The effect module LED indicates the ON/OFF status of the effect module within the current preset. The order of the LEDs represents the actual connection order of the modules in the effects chain.

■Tap Tempo
The GE150 Max Li allows you to tap the tempo of the delay module and drum machine using the TAP footswitch.

■Onboard Expression Pedal
The GE150 Max Li's onboard pedal can be used as an expression pedal to control a single parameter, or as a master volume pedal.
The expression pedal has a toe switch function. This switch allows you to switch between expression mode and volume mode.

■Tuner
The TUNER footswitch activates the tuner. You can also set the tuning mode and reference frequency.

●CTRL Mode
The GE150 Max Li's footswitch, which controls the currently selected preset, can be configured as the CTRL function. This allows you to turn multiple effect modules on and off without changing the preset.

■Drum Machine
The GE150 Max Li includes a drum machine that allows you to select drum rhythm patterns or a metronome click.

■Phrase Looper
The GE150 Max Li includes a stereo phrase looper with a maximum recording time of 80 seconds. Activate it by pressing and holding the TUNER footswitch.

■ Spillover
This feature provides a tail hold function for delay and reverb effects. Under certain conditions, you can maintain the natural decay of delay and reverb when switching presets.

Copy the target preset and save it to the destination preset location. In the new preset location, you can adjust the effect module ON/OFF and parameters within the effect chain. Once configured, you can switch between two presets while maintaining the natural tail decay of delay and reverb.

■ OTG Function
The GE150 Max Li's USB-C port allows you to connect a smartphone or tablet with the OTG (On-The-Go) function for audio recording and playback.

*Please ensure your mobile device supports OTG before using this function. Depending on the interface available on your mobile device, you may need to use an appropriate third-party USB-C OTG adapter cable.

■ Editor Software
The GE150 Max Li is compatible with dedicated computer editor software. You can edit effect module parameters, import or export preset files, import third-party IR sample files, and back up data.

■Specifications
-Effects
-Modules: 9
-Effect Models: 170
-Preset Storage Slots: 200

-IR Format: WAV
-Sampling Rate: 44.1kHz
-Sampling Precision: 24-bit
-Sampling Points: 512

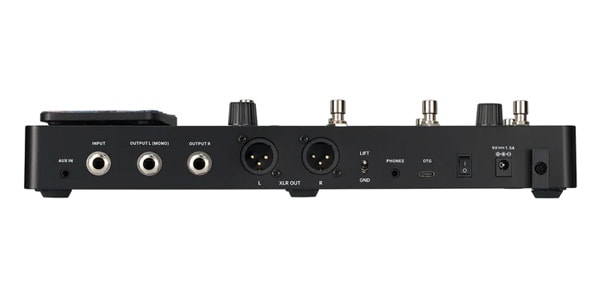

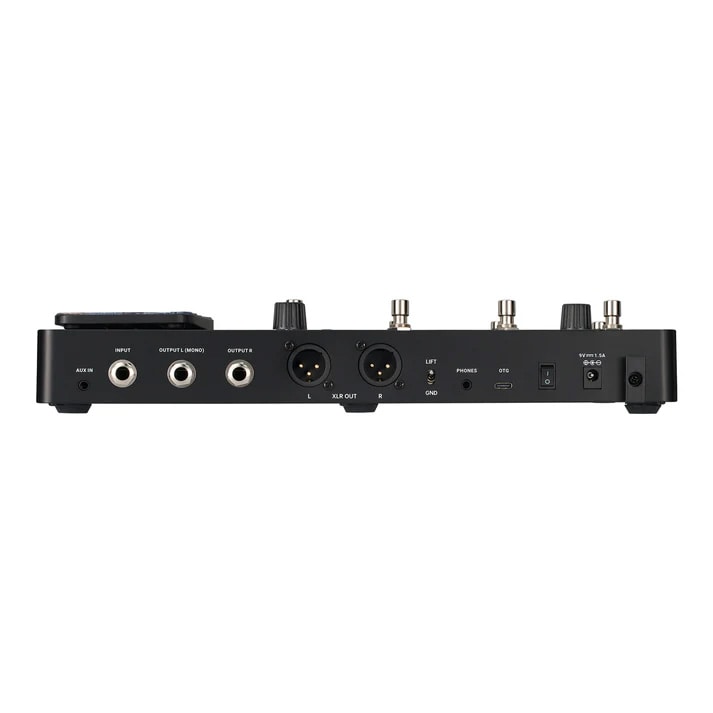

-Inputs/Outputs
-Input: 1 x 1/4"" unbalanced mono input connector
-Output: 2 x 1/4"" unbalanced mono output jacks
-XLR Output: 2 x XLR balanced output jacks
-PHONES Jack: 1 x 1/8"" unbalanced stereo output connector
-AUX IN: 1 x 1/8"" unbalanced mono input connector
-USB Interface: TYPE-C connector

-Audio Analog-to-Digital Converter
-Sampling Rate: 44.1kHz
-Sampling Precision: 24-bit
-Dynamic Range: 5.624dBu
-Frequency Response: 20Hz - 20kHz

-Audio Digital-to-Analog Converter
-Dynamic Range: 11.47dBu
-Frequency Response: 20Hz-20kHz
Signal-to-Noise Ratio: 97dB

Power Supply: DC 9V, 1.5A, center negative

Battery: Lithium-ion, rechargeable, 2000mAh, 14.8Wh, 7.4V
Battery Life: Approximately 9 hours (varies depending on usage)

Accessories: Power adapter, USB cable, Quick Guide

Specifications are subject to change without notice.
