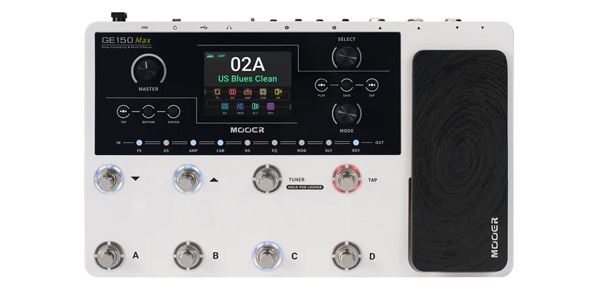

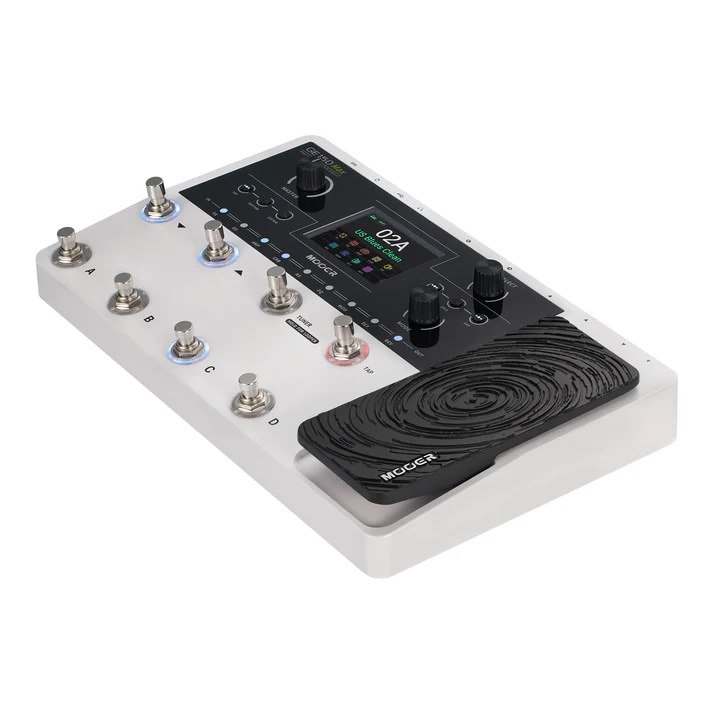

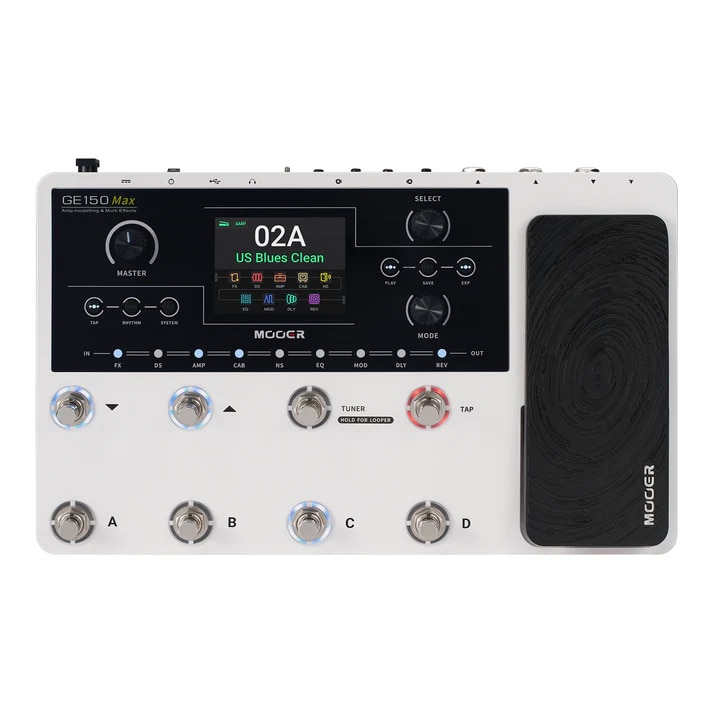

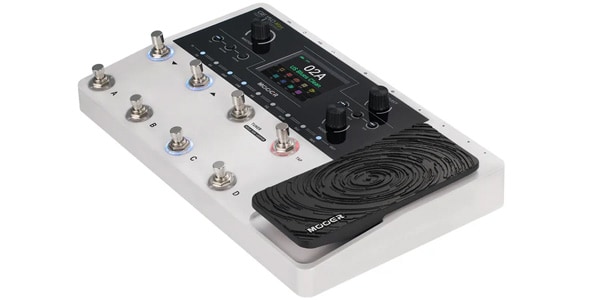

MOOER / GE150 MAX

<> The MOOER/GE150MAX is a multi-function multi-effects unit with a new Walking Star design. It boasts high operability with 55 amps, 170 effects, and eight footswitches. It also supports IR/MNRS loading, allowing you to create your own unique sounds. It's packed with features you'll need for practice and live performances, including an 80-second looper, drum machine, and expression pedal.

The Mooer GE150 Max is a new generation multi-effects pedal featuring a new Walking Star design.

The GE150 Max features eight footswitches for superior operability and sound quality, even on stage. It features 55 high-quality amp models recreated using intelligent reverse modeling technology. It offers a total of 170 diverse effects, each assigned to nine effect modules, allowing up to nine effects to be used simultaneously. 200 presets can be saved.

You can also load third-party cabinet simulator IRs, allowing you to tailor your own sound using your favorite IRs.

It also supports MNRS amp models sampled from real amps created and shared with Mooer GE Labs or the GS1000. You can also load amp model GNR files (full amp or preamp) and cabinet model GIR files.

The built-in expression pedal allows for real-time control of various parameters, and the unit is also equipped with an 80-second phrase looper, rhythm machine, and tuner, making it ideal for practice and performance.

Connect to a PC via the USB port to edit and manage presets in editor software, load MNRS amp models and impulses, and output audio to a mobile device via USB-OTG.

■Effect Modules
The GE150 Max includes nine effect modules containing 170 different effects, and all nine can be used simultaneously. Each module can be configured to use one effect type.
The effect module LED indicates the ON/OFF status of the effect module in the current preset. The order of the LEDs represents the actual connection order of the modules in the effects chain.

■Tap Tempo
The GE150 Max allows you to tap the tempo of the delay module or drum machine using the TAP footswitch.

■Onboard Expression Pedal
The GE150 Max's onboard pedal can be used as an expression pedal to control a single parameter, or as a master volume pedal.
The expression pedal has a toe switch function. This switch allows you to switch between expression mode and volume mode.

■ Tuner
Activate the tuner with the TUNER footswitch. You can also set the tuning mode and reference frequency.

■ CTRL Mode
The GE150 Max allows you to set the footswitch that controls the currently selected preset as the CTRL function. This allows you to turn multiple effect modules on and off without changing the preset.

■ Drum Machine
The GE150 Max includes a drum machine that lets you select drum rhythm patterns or a metronome click.

■ Phrase Looper
The GE150 Max includes a stereo phrase looper with a maximum recording time of 80 seconds. Activate it by pressing and holding the TUNER footswitch.

■ Spillover
Includes a tail hold function for delay and reverb effects. When switching presets, you can maintain the natural decay of delay and reverb under certain conditions.
Copies the target preset and saves it in the destination preset location. In the new preset location, you can turn effect modules in the effect chain on and off and adjust their parameters. Once setup is complete, you can switch between two presets while maintaining natural delay and reverb tail decays.

■OTG Function
The GE150 Max's USB-C port allows you to connect a smartphone or tablet with the OTG (On-The-Go) function to record and play audio.

*Before using this function, please ensure that your mobile device supports the OTG function. Depending on the interface available on your mobile device, you may need to use an appropriate third-party USB-C OTG adapter cable.

■Editor Software
The GE150 Max is compatible with dedicated computer editor software. You can edit effect module parameters, import or export preset files, import third-party IR sample files, and back up your data.

■Specifications
-Effects
-Modules: 9
-Effect Models: 170
-Preset Storage Slots: 200

-IR Format: WAV
-Sampling Rate: 44.1kHz
-Sampling Precision: 24-bit
-Sampling Points: 512

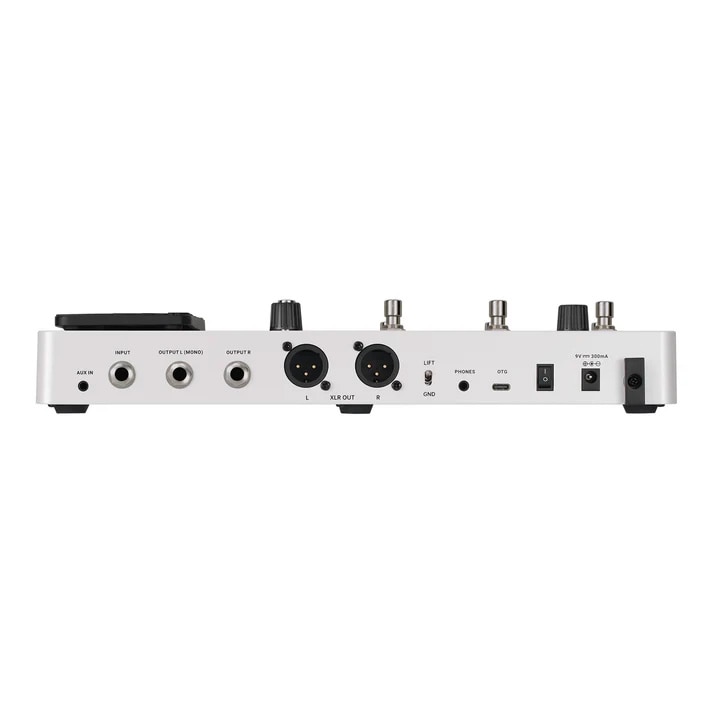

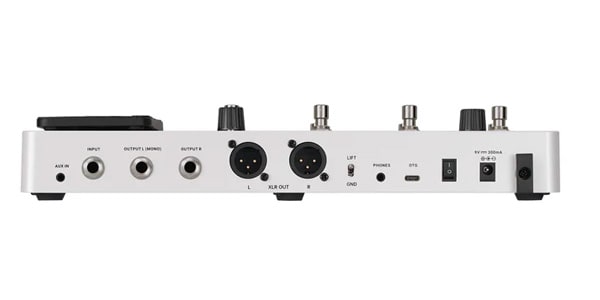

-Inputs/Outputs
-Input: 1 x 1/4"" unbalanced mono input connector
-Output: 2 x 1/4"" unbalanced mono output jacks
-XLR Output: 2 x XLR balanced output jacks
-PHONES Jack: 1 x 1/8"" unbalanced stereo output connector
-AUX IN: 1 x 1/8"" unbalanced mono input connector
-USB Interface: TYPE-C connector

-Audio Analog-to-Digital Converter
-Sampling Rate: 44.1kHz
-Sampling Precision: 24-bit
-Dynamic Range: 5.624dBu
-Frequency Response: 20Hz - 20kHz

-Audio Digital-to-Analog Converter
-Dynamic Range: 11.47dBu
-Frequency Response: 20Hz-20kHz
Signal-to-Noise Ratio: 97dB

Power Supply: DC 9V, 300mA, center negative
Accessories: Power adapter, USB cable, Quick Guide

Specifications are subject to change without notice.
