ZOOM / H6studio

Variations

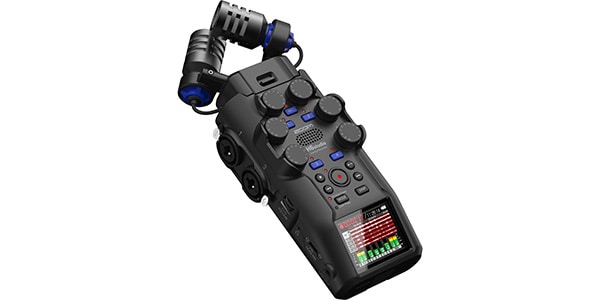

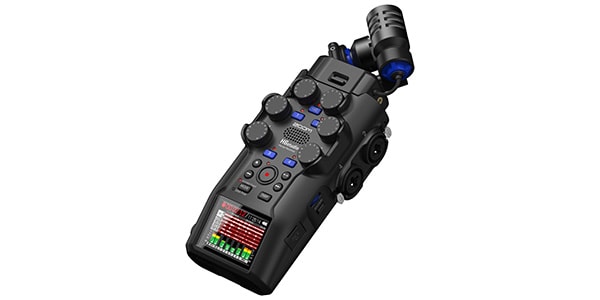

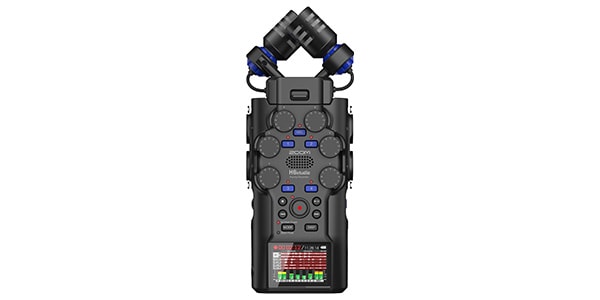

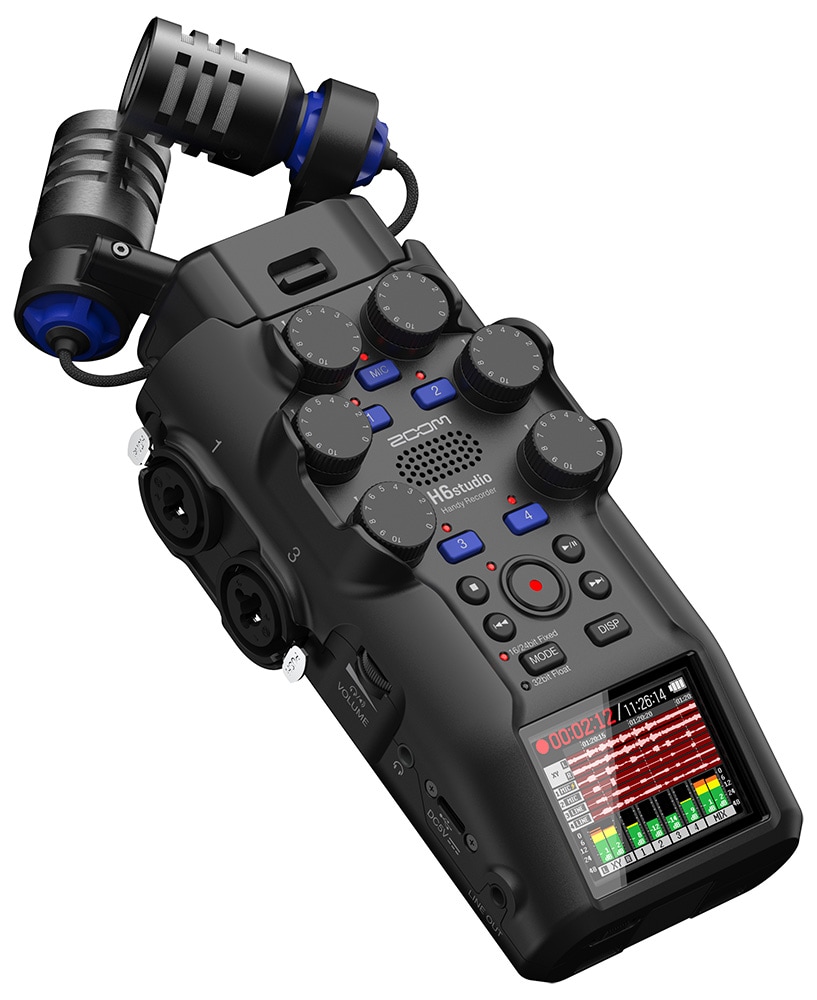

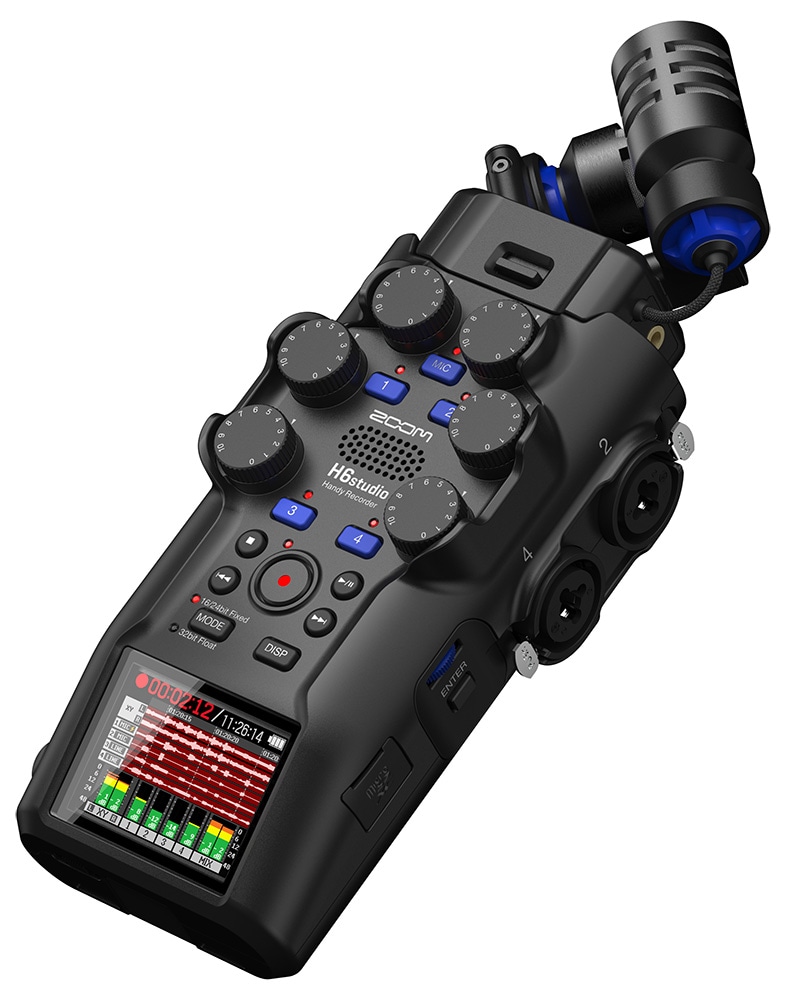

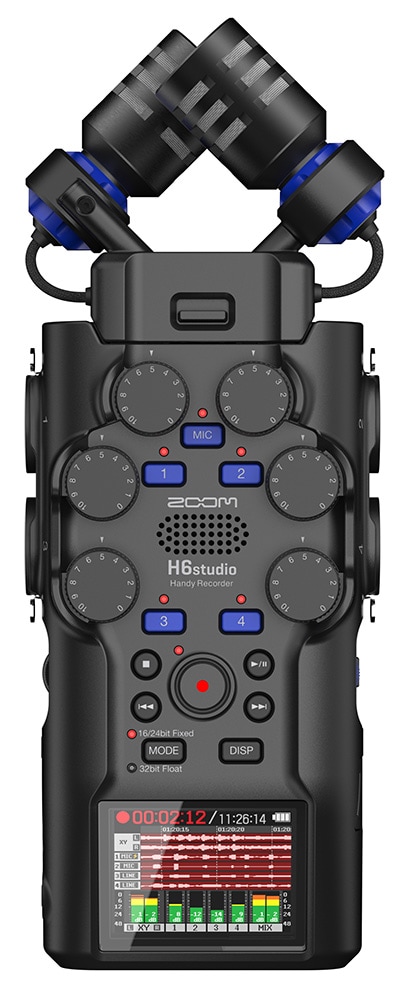

The H6studio is a professional handheld recorder featuring 32-bit float recording, studio-grade preamps, large-diaphragm stereo microphones, four XLR/TRS inputs, phantom power capability, and support for simultaneous recording of up to eight tracks.

■Handheld Recorder
■6-Channel Input
■Key Features
・6-channel input, simultaneous recording of up to 8 tracks (6 tracks + Stereo Mix)

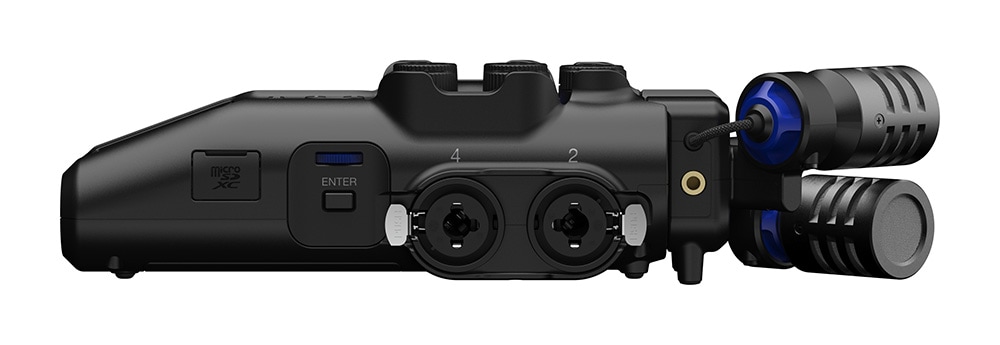

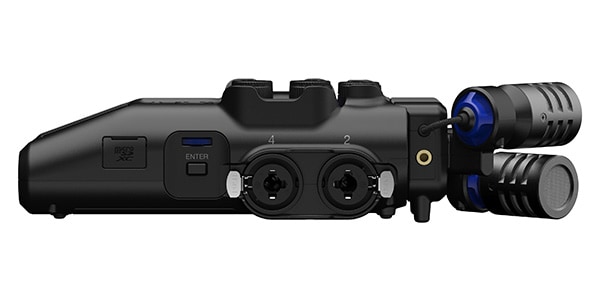

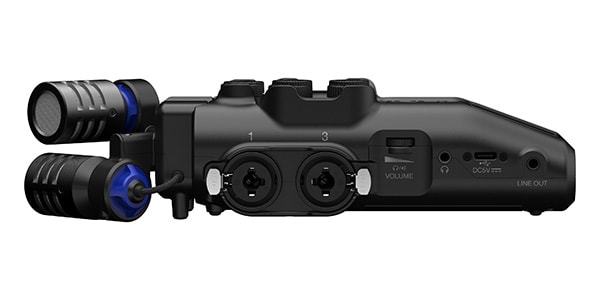

・Four XLR/TRS phone inputs featuring ultra-low noise preamps with EIN of -127dBu
・XY stereo microphone with shock mount mechanism and 19.4mm large-diaphragm capsule
・GAIN knob for manual input level adjustment
・Two recording modes switchable via dedicated switch (32-bit Float and 16/24-bit Fixed)
・High-quality recording at up to 192kHz sampling rate
・Stereo mini mic/line input (with plug-in power) also usable for lavalier mics

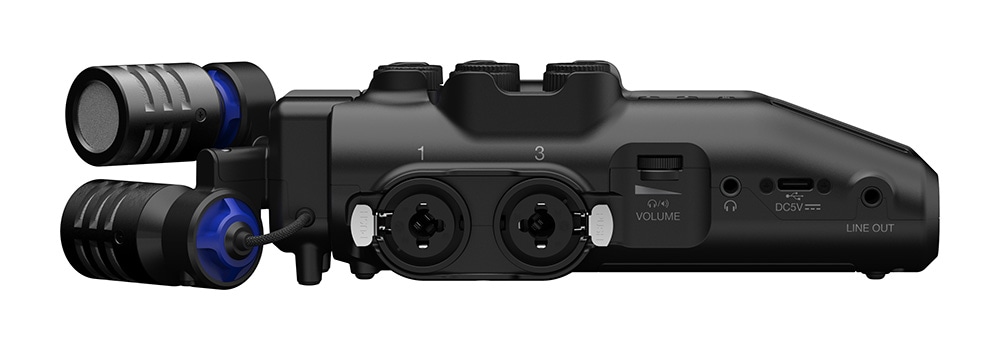

・Line out for direct audio to cameras and headphone jack with volume control
・Advanced limiter that anticipates peaks to prevent overload
・DISP key for one-touch switching between “Level Meter/Waveform/Meter + Waveform” display on the HOME screen
・2.0-inch full-color LCD display
・6-in/2-out USB audio interface functionality for recording while live streaming (compatible with Windows/Mac/iOS/Android)
・Low-cut filter to suppress low-frequency noise like vibrations and air conditioning sounds
・Supports normalization processing and exporting to 24-bit or 16-bit WAV files directly on the unit
・Built-in speaker with max 250mW output for instant preview playback of recordings
・Accessibility feature that reads settings menus aloud (supports 7 languages including Japanese)
・Automatic recording data save system every 30 seconds to minimize data loss during power loss
・Uses microSDHC/microSDXC cards as recording media (supports up to 2TB / sold separately)
・Approximately 15 hours of operation with 4 AA alkaline batteries; also operates via AC adapter (sold separately AD-17) or USB mobile battery
・Compatible with optional dual AD microphone capsules (SSH-6e/EXH-6e/WLM-1*)
・Optional timecode generator function for synchronization with video equipment can be added **
・Compatible with the iOS app “ZOOM Handy Control & Sync” for batch operation of multiple recorders***
・Supports wireless timecode synchronization with Atomos UltraSync BLUE ***

*2-channel wireless lavalier microphone capsule ‘WLM-1’ (Scheduled for release in 2026)
**Requires optional timecode adapter ‘TCA-1’ (Scheduled for release in 2025)
***Requires optional Bluetooth adapter ‘BTA-1’ or timecode adapter 'TCA-1'

■Dimensions: 83.0 (W) x 221.0 (D) x 54.5 (H) mm
■Weight: 477 g (including battery)
