TRICKFISH / Signal Filter

The Signal Filter is the ultimate filter tool for musicians seeking precise and versatile tone shaping. The variable high-pass and low-pass filters sharply cut out unwanted low and high frequencies, leaving only the desired frequency range.

[直輸入品][Direct Import]

Bass Effects Pedal

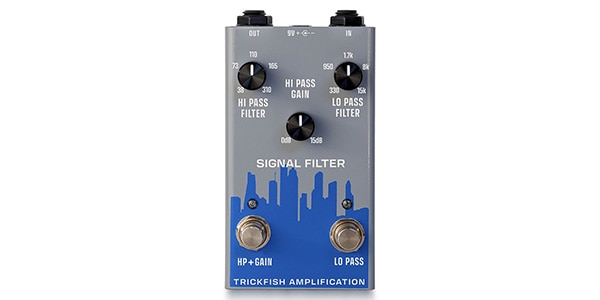

Signal Filter
Controls:
- HI PASS FILTER: 38Hz to 310Hz
- LO PASS FILTER: 330Hz to 15kHz
- HI PASS GAIN: 15dB of gain for hi-pass filter

Power Supply: 9VDC, center negative, 3.9 mA

Unlike traditional EQs, this filter provides steep filtering at 24dB per octave in the range of 38Hz-310Hz (Low) / 330Hz-15kHz (High). Simply adjust the high pass if the lows are too pronounced, or the low pass if the top end is too harsh, to create a tight, defined sound.
