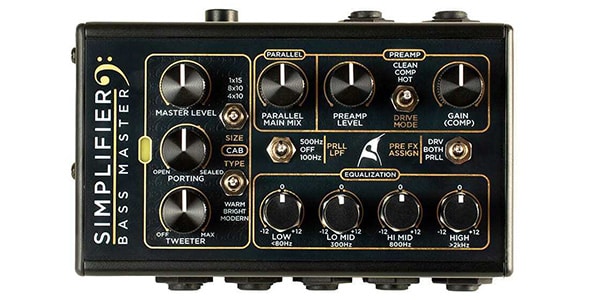

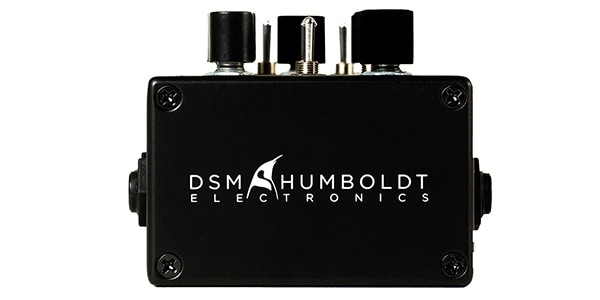

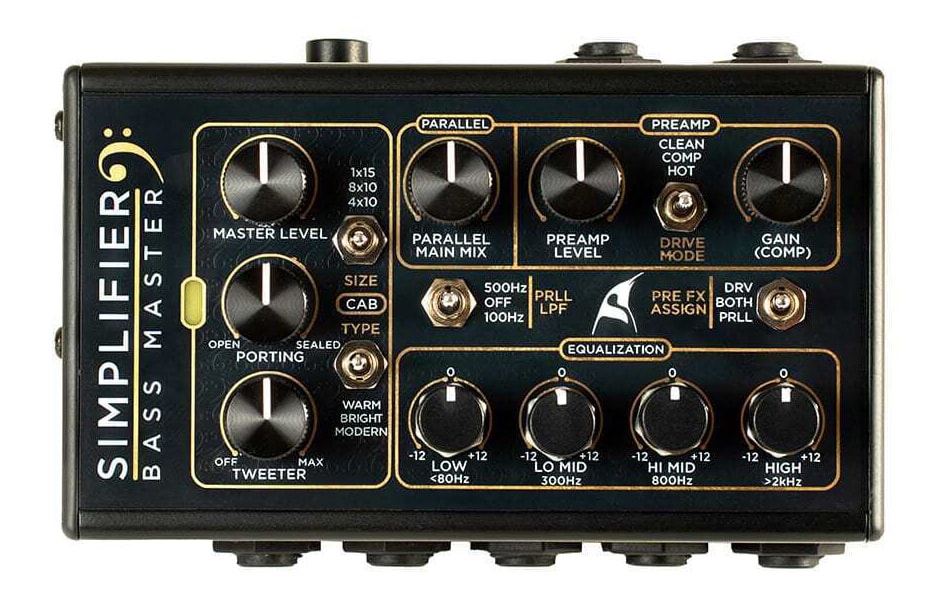

DSM & Humboldt Simplifier / SIMPLIFIER BASS MASTER

Expanding on the versatility of the acclaimed Bass Station, the 3-mode preamp, parallel mix with low-pass filter, and 4-band EQ deliver dreamy bass tones. Plus, with a unique cabinet simulator, dual FX loops, and dual DI/line outputs, it sounds great in any environment.

■Key Features
- Preamp Module: 3 modes (Clean, Comp, Hot)
- Parallel Mix Control: Low-pass filter (Off/100Hz/500Hz) and phase switch
- 4-Band EQ: Adjustable at 80Hz/300Hz/800Hz/2kHz
- Analog Cabinet Simulation: 3 sizes (4x10, 8x10, 1x15), 3 types (Warm, Bright, Modern), plus sub-low/tweeter mix adjustment
- Dual FX Loop: Use different effects on each channel without a splitter

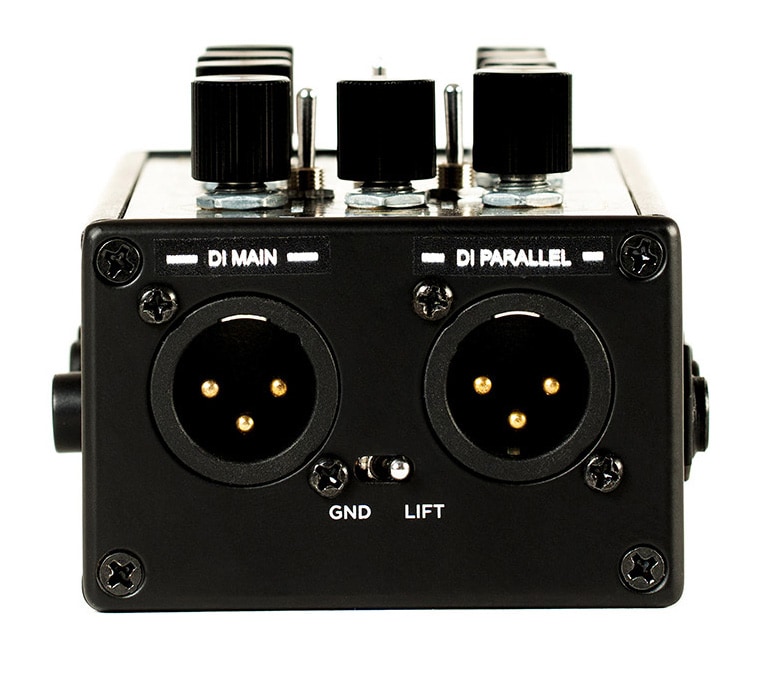

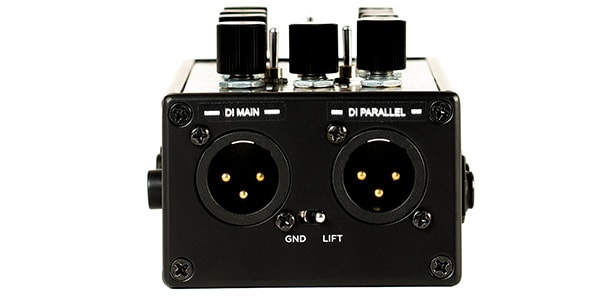

- Dual DI Output (XLR): Main and Parallel outputs for reamping or subwoofers

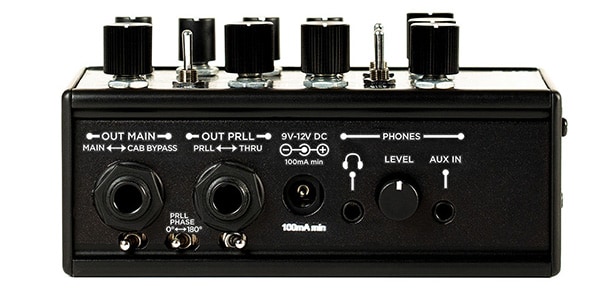

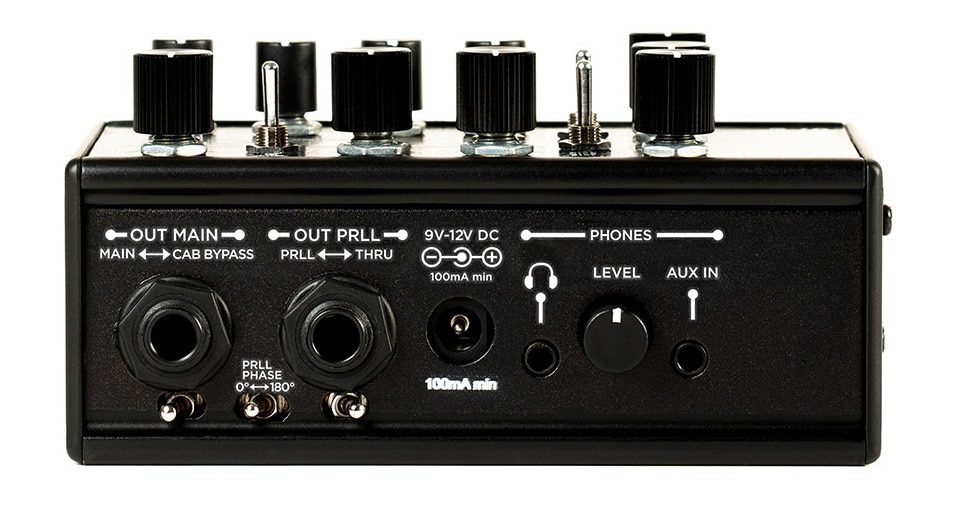

- Dual Line Output (TS): Main and Parallel outputs for cabinet bypass or through-out
- Headphone Amplifier: Includes AUX input

■Specifications
- Power Supply: 9 to 12V DC, center negative
- Current Draw: 100 mA
Weight: 356g
Dimensions: 69.4 mm x 125.0 mm x 43.2 mm (L x W x H)
