Electro-Voice / EVOLVE90

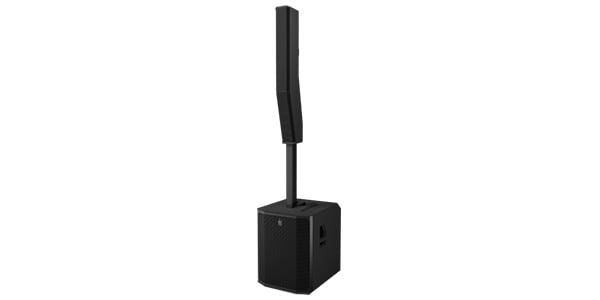

The Electro-Voice EVOLVE 90 portable column-type PA speaker delivers powerful bass and delicate treble with a sound pressure level of 134dB, a wide frequency range of 28Hz-20kHz, an 18-inch subwoofer, and eight 4.7-inch neodymium drivers. It features wireless control via a compatible app, Bluetooth stereo support, and excellent expandability with numerous terminals. With its sophisticated design, it's ideal for weddings and corporate events. This professional-grade PA speaker offers high sound quality, output, ease of installation, and operability, making it perfect for large venues.

■Column Speaker

■Specifications


? Color: Black


? Maximum Sound Pressure Level (SPL): 134 dB


? Frequency Response: 28 Hz ? 20 kHz


? Configuration

Column Array: 8 x 4.7-inch neodymium drivers

Subwoofer: 18-inch, 4-inch voice coil

? Coverage: 120° horizontal, 25° vertical

Amplifier Output: 2000W (LF: 1000W, HF: 1000W)


? Connection Terminals:

XLR/TRS Combo Input x 2

Stereo XLR/RCA Line Input x 1

AES/EBU Digital I/O

QuickSmart Link

Bluetooth? Stereo

PowerCON?


? Enclosure

Column: Composite Material

Pole: Aluminum

Subwoofer: 15mm Plywood


Grille: Steel, Black or White Powder Coat

* Dimensions (HxWxD): 92.4” x 20.1” x 26.8” (2346 x 510 x 680 mm)

* Weight: 44.5 kg

* Power cable is not included with the EVOLVE 70 / 90.

* One PowerCONR is included; please arrange for this yourself.
