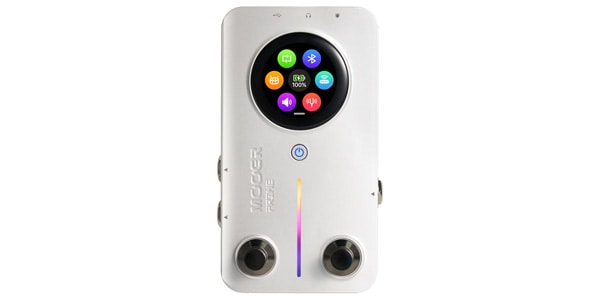

MOOER / Prime M2

Mooer Prime M2 is a compact pedal-sized multi-effects pedal with a touch screen and improved operability. Prime M2 has 80 preset slots, and you can edit each preset, adjust parameters, and select effects and amp models all from the smartphone app.

From the Prime M2's touch screen, you can set the main unit's functions such as turning the looper, drum machine, and metronome on and off, adjusting and setting the volume, connecting the tuner and GWF4 wireless footswitch, and turning Bluetooth audio on and off.

Prime M2 includes 194 effect models, and the dynamic loading effect chain allows you to use the same type of effect module multiple times in a single chain.

You can also load MNRS sample amp models and third-party IRs created at Mooer GE Lab.

The looper has 10 storage slots, and you can switch sampling loops depending on the situation. You can record up to 80 minutes in total, and you can combine rhythms with 56 types of drum grooves and 4 types of metronome.

You can connect Bluetooth audio and practice while playing, or you can record out using the USB-OTG function. It supports stereo output, so you can practice comfortably with headphones.

Equipped with two footswitches, by combining them with external MIDI controllers and wireless footswitches, you can finely control a variety of systems even though the main unit is small.

■Features
・Equipped with touch screen
- Contains 194 effect models
・The same type of effect module can be used multiple times without the same chain
・Can load MNRS samples and third party IR samples
・Up to 80 preset slots
・Total 80 minute looper (10 save slots)
・56 types of drum grooves and 4 types of metronome
・Bluetooth audio playback possible
・OTG recording possible
・Dual channel stereo output
・Equipped with headphone out
・Dual footswitch control
・External MIDI control
・Supports Mooer wireless footswitch
・Built-in rechargeable lithium-ion battery
・Dedicated Mooer Prime mobile app and Mooer Studio desktop software for user data management
・Tone data can be shared using cloud technology

■Specs
・Sampling rate: 44.1kHz
・Sampling bit depth: 24 Bit
・Display: 1.28 inch touch screen
・Input: TS 6.35mm 2MΩ
・Stereo output (L/R): TS 6.35mm 100Ω×2

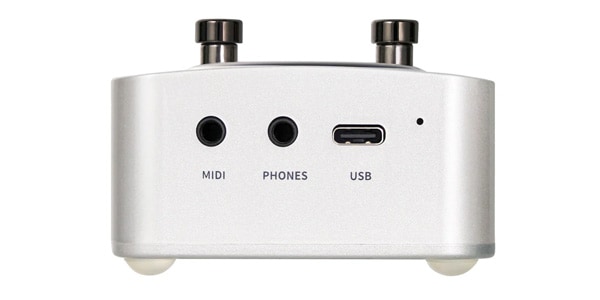

・MIDI port: 3.5mm
・Headphone output: 3.5mm 32Ω
・USB: USB-C, for charging and recording
・Bluetooth: 5.0
・Wireless control: 2.4G
・Battery: 3000mAh
・Battery life: Approximately 6 hours
・Charging time: Approximately 3 hours
・Charging power supply: DC5V/2A
・Weight: 228g
・Size: 74mm x 125mm x 49mm (L x W x H)
