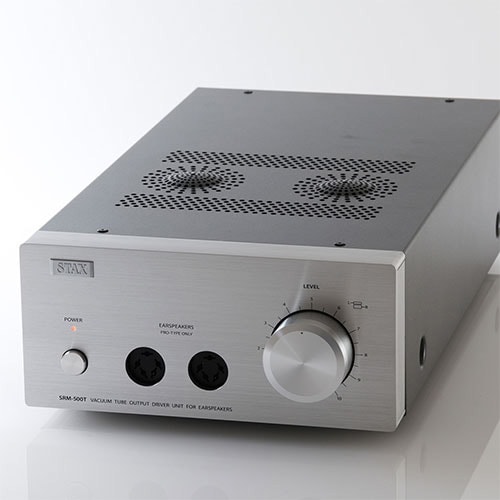

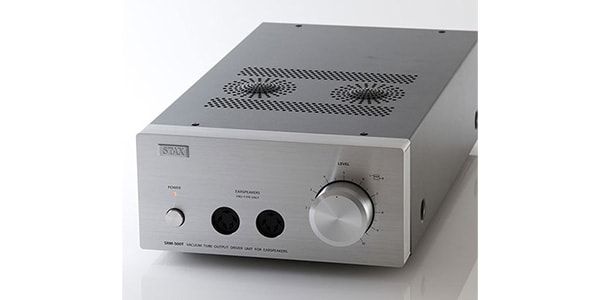

STAX / SRM-500T

The SRM-500T is the successor to the SRM-006tS and follows the STAX's traditional tube driver circuit while achieving improved power supply efficiency and better sound quality. It uses a low-noise DUAL FET in the first stage and a high-voltage 6FQ7/6CG7 twin-triode tube in the output stage, while a newly designed power transformer saves power and improves sound quality.

■ Adoption of a new chassis with improved rigidity
A new chassis with enhanced rigidity compared to the SRM-006tS has been adopted. The hybrid structure with extensive use of non-magnetic aluminium further suppresses the effects of vibration and other physical external noise.

■Input systems and convenient functions
The inputs are exclusive between RCA and XLR, with the custom-made dual-axis quadruple volume, common to all STAX products, and the parallel out function for RCA inputs, as in previous models.

■High-quality electronic components and DC amplifier configuration
The electronic components used in the STAX are designed with thorough consideration for sound quality, performance and the environment. The signal circuit uses a complete DC amplifier configuration with no coupling capacitors whatsoever, ensuring high purity sound quality.

Evolved sound characteristics
The clear, high slew-rate sound of the vacuum tube circuitry, with a warm and expansive sound, has been maintained, while the thickness of the mid-range and low frequency range has been improved. Offers new combination options with the Advanced Lambda Series (SR-L300/SR-L500 MK2/SR-L700 MK2).

＜Specifications.
Type: Hybrid DC amplifier with FET first stage and tube output stage, driver unit.
Tube used: 6FQ7/6CG7
Frequency bandwidth: DC to 90 kHz (when using a single SR-L500 MK2).
Amplification: 60 dB
Harmonic distortion: 0.01% or less (at 1kHz/100Vr.m.s. output)
Input impedance: 50kΩ (RCA), 50kΩ x 2 (XLR)
Maximum output voltage: 300 Vr.m.s. (1 kHz)
Bias voltage: 580 VDC.
Operating ambient temperature / humidity: 0 to 35°C / 90% or less (non-condensing).

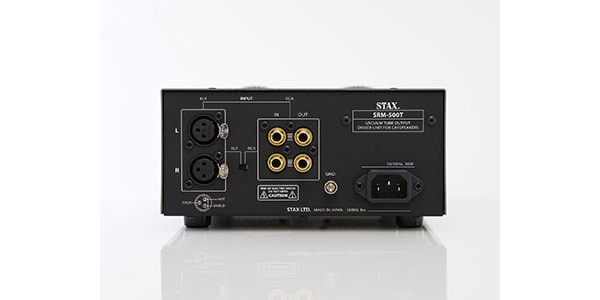

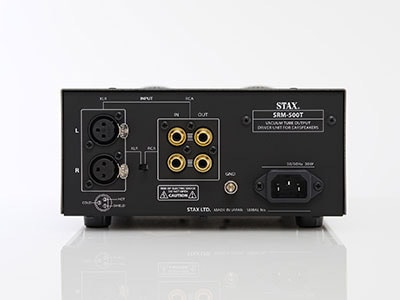

Inputs: RCA x 1 XLR x 1
Outputs: RCA parallel out terminals
Power consumption: 38 W
Dimensions: 195W x 102H x 376Dmm (including knobs and other protruding parts)
Weight: 3.4kg
