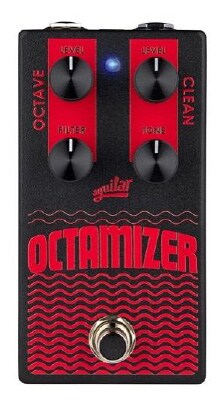

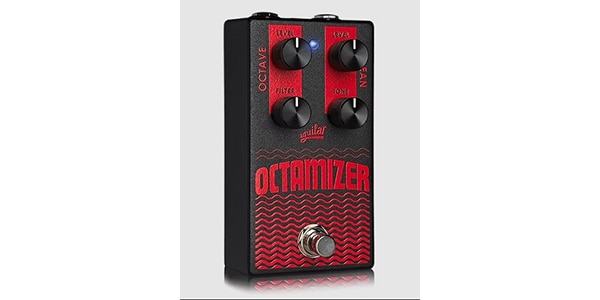

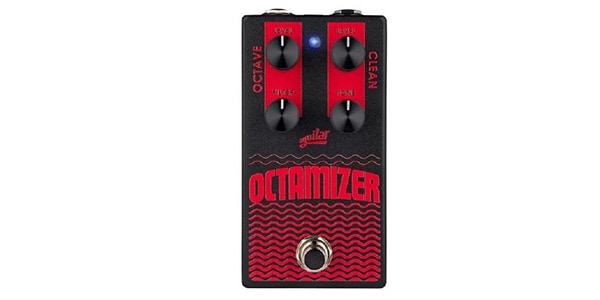

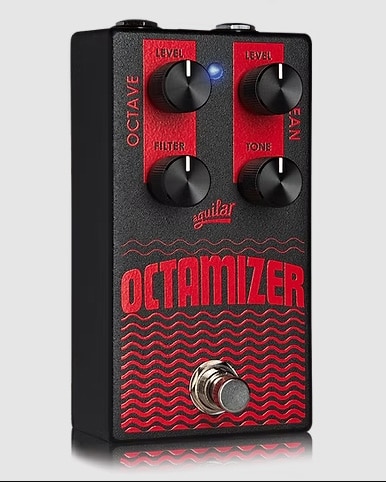

AGUILAR / OCTAMIZER ベース用オクターバー

Equipped with independent volume controls for Clean and Octave, you can create a good balance between clean and octave sounds. Furthermore, tone control using independent discrete signals allows for a wide range of musical sound creation.

■Effector for bass
■Octaver
■Input: 1/4 inch input terminal x 1
■Output: 1/4 inch output terminal x 1
■Controls: Octave level, clean level, octave filter, clean tone
■Power consumption: 6mA
■Input impedance: 1MΩ (when effect is ON)
■Output impedance: <1kΩ
■Octave filter: 3pole LPF 80Hz-800Hz
■Clean tone: wide band tilt EQ +/-20 dB
■Power source: 9V battery (006P) or AC adapter (KORG KA181 sold separately)
■External dimensions: 6.8 (W) x 14 (D) x 5.8 (H) cm
■Weight: 0.52kg
■The EQ setting range is very wide, and you can control adjustments such as boosting the high range and cutting the low range, or boosting the low range and cutting the high range with a single knob. This unique circuit allows you to create octave doubling effects or even create thick, intense synth bass tones. The Octave Filter control features a variable multi-pole low-pass filter that allows you to create a wide variety of octave sounds, from smooth and deep to sharp and aggressive.
