qdc / Anole V14-S

The Anole V14-S is a flagship IEM that uses qdc's unique tuning switch technology and was born after two years of advanced research and development.

■Hybrid 14-driver configuration with 10BA+4EST (electrostatic)
・Anole V14-S is a flagship IEM born after two years of advanced research and development. It adopts a 4-way sound channel and a 4-way crossover, and is equipped with a hybrid configuration of 10 BA drivers and 4 electrostatic (EST) drivers on one side. The customized low-frequency driver dramatically improves the reproduction ability of ultra-low frequencies. It also has a customized EST electrostatic driver, which significantly expands the reproduction frequency of ultra-high frequencies to 50KHz. The sensitivity of the electrostatic driver has been greatly improved. And, with outstanding tuning by qdc's sound engineers, it achieves extremely excellent sound balance.

■Unique tuning switch technology
・Adopts qdc's unique tuning switch technology. The Anole V14-S is equipped with four tuning switches, which allow you to change the low, mid, high, and ultra-high frequencies, allowing you to enjoy a total of 16 different tones without distortion.

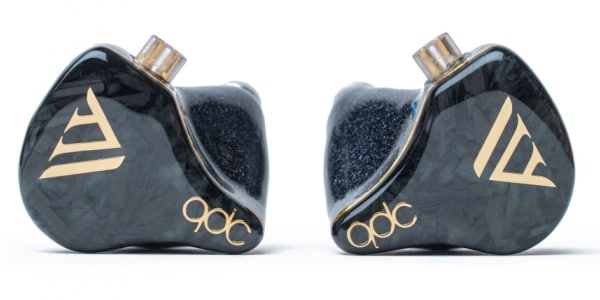

■3D luminous faceplate
・The Anole V14-S faceplate uses a 3D three-dimensional luminous material. The faceplate glows in the dark when it absorbs ultraviolet rays or sunlight, and its subtle design changes the chic black faceplate to a fantastic green. The shell is decorated with colorful fine glitter and gold leaf inlays with laser engraving, creating an elegant style that is typical of flagship models.

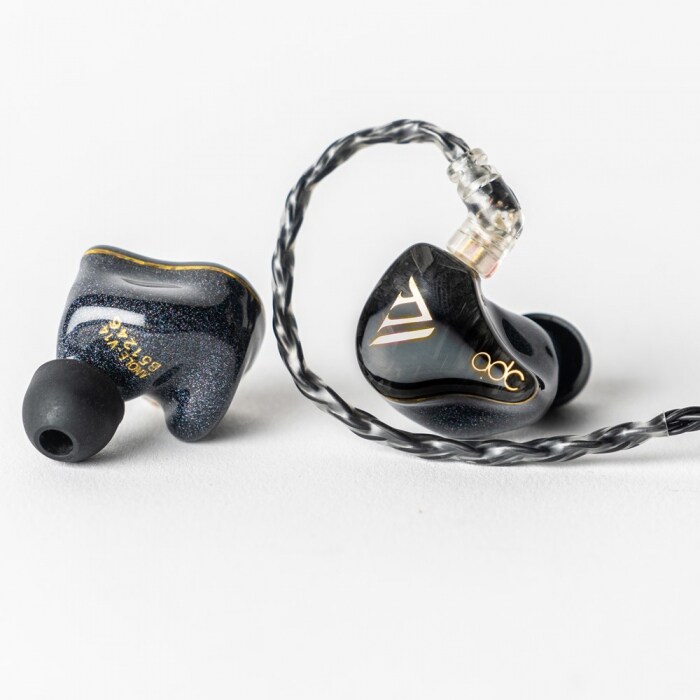

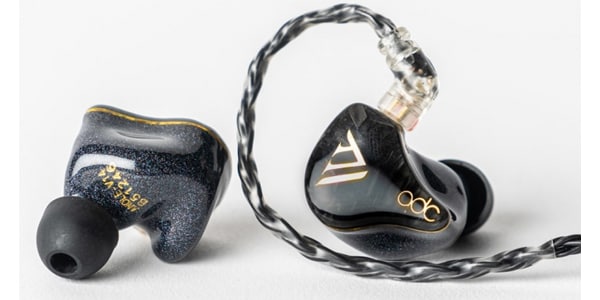

■3.5mm/2.5mm/4.4mm switchable 3in1 plug cable and soft earpieces
・The Anole V14-S uses a premium cable with a new chic black coating and pure silver and pure copper conductors. In addition, the 3in1 plug allows easy switching between 3.5mm/2.5mm/4.4mm, making it easy to switch between unbalanced and balanced connections. In addition, we have newly adopted earpieces that are softer and easier to fit.

■Product name: Anole V14-S
■Driver: Hybrid type
■Number of drivers: 10BA+4EST / 14 drivers (one side)
■Format: Closed type
■Frequency response range: 10 - 50,000 Hz
■Input sensitivity: 105 - 108 dB SPL/mW
■Impedance: 12 - 20Ω
■External sound insulation: 26dB
■Cable/plug: Black coated premium cable with 3-in-1 plug (approx. 120cm)
(Connector: qdc 2pin, plug (L-shaped): 3.5mm x 1 / 2.5mm x 1 / 4.4mm x 1)
■Accessories: 3-in-1 plug cable, 3.5mm 3-pole unbalanced conversion plug, 2.5mm 4-pole balanced conversion plug, 4.4mm 5-pole balanced conversion plug, silicone earpieces: 3 pairs (S/M/L), silicone earpieces double flange type: 3 pairs (S/M/L),
flight adapter, 3.5mm to 6.3mm conversion plug, cleaning tool, carrying case
■Country of manufacture: China
■Manufacturer's warranty: 1 year for main unit / 6 months for cables and accessories
