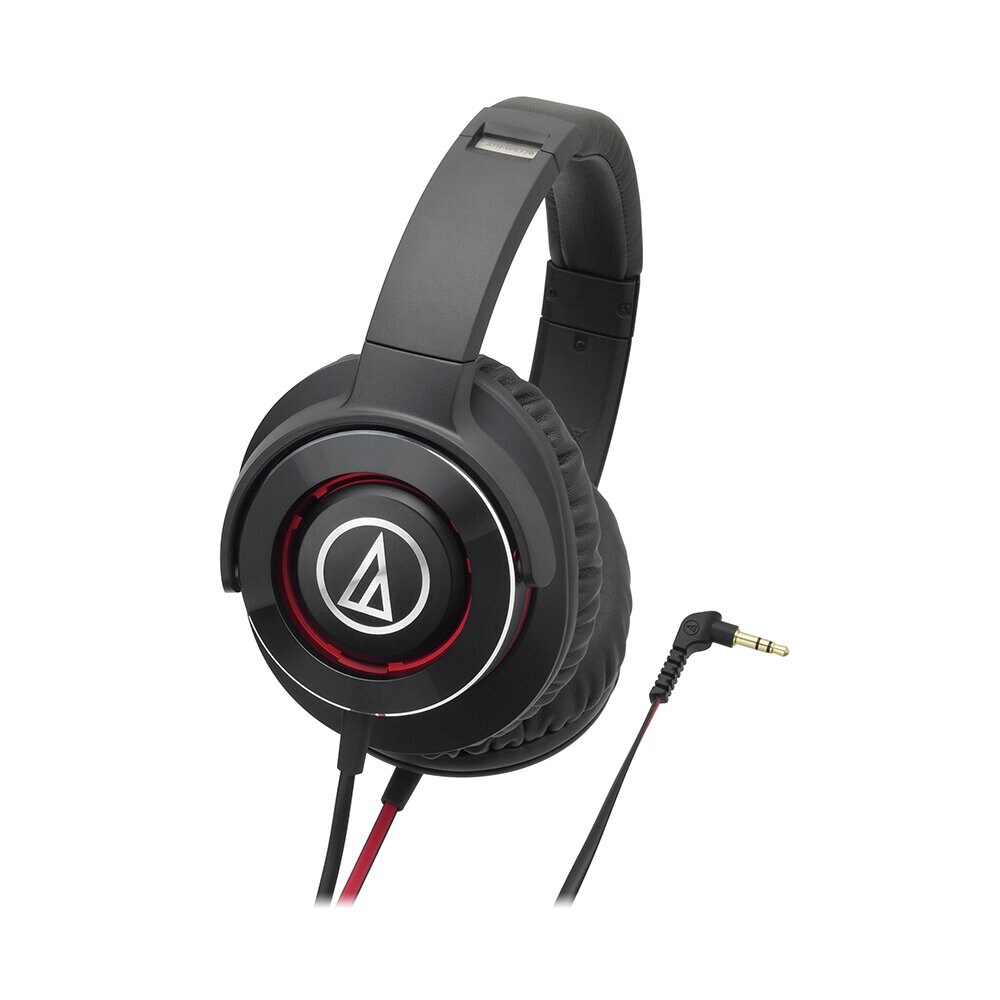

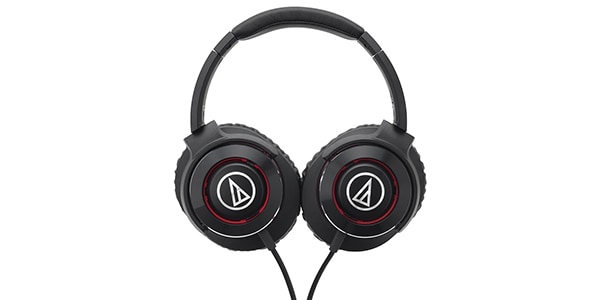

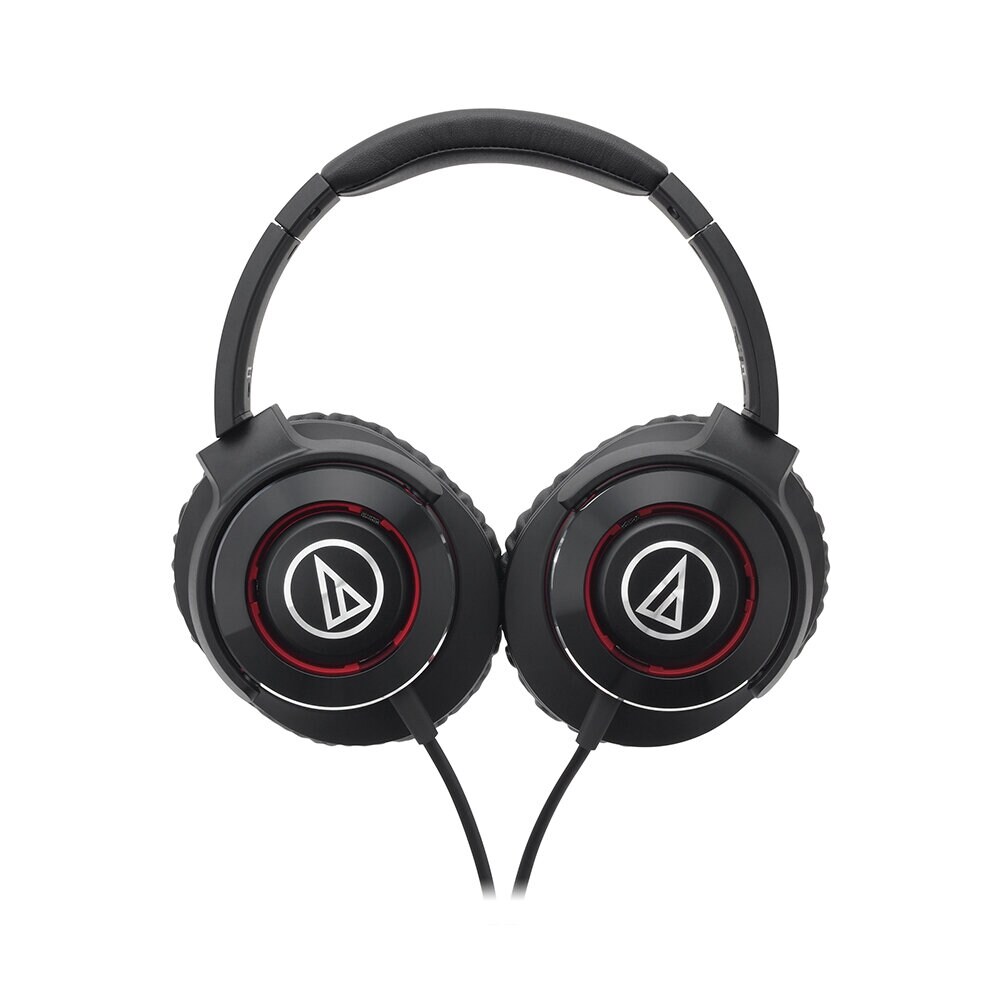

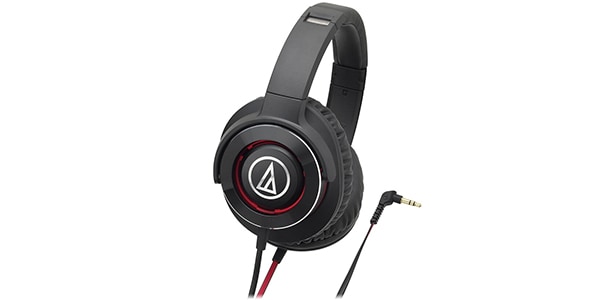

audio technica / ATH-WS770 BRD

Headphones equipped with audio technica's newly designed φ53mm ""DEEP MOTION DRIVER"". Vibration damping structure made of highly rigid aluminum material enables realistic deep bass reproduction.

■Deep motion driver
Equipped with a dedicated φ53mm driver with a vast diaphragm area. The deep amplitude and powerful magnetic circuit maximize the vibration ability and emit an overwhelming low range.
■Airflow base triple venting system
Three vents (air holes) are arranged at equal intervals on the concentric circle on the back of the driver. By efficiently creating the springiness of the air inside the housing, low-frequency output efficiency is greatly improved. In combination with the acoustic resistance of stainless steel, it also creates a balance between low and mid-high frequencies.
■Vibration damping dual enclosure design
Adopts a sturdy dual enclosure structure that combines highly rigid precision-machined aluminum materials. The outstanding vibration damping design suppresses unnecessary resonance transmitted from the driver drive, bringing out the mid-high range with little distortion.

■Model: Closed dynamic type
■Black red
■Driver: φ53mm
■Output sound pressure level: 100dB/mW
■Reproduction frequency band: 8-29,000Hz
■Maximum input: 1,000mW
■Impedance: 38Ω
■Weight (excluding cord): Approx. 265g
■Plug: φ3.5mm gold-plated stereo mini (L type)
■Cord: 1.2m
