FOCUSRITE / Scarlett 18i20 Gen.4 USBオーディオインターフェイス

The Scarlett 18i20 is a 4th generation USB audio interface, featuring the same professional quality converters found in Focusrite's top-of-the-line RedNet series, eight of the latest 4th generation Focusrite mic preamps, and an innovative workflow. From home recording to studio recording, the traditional Focusrite sound delivers high-quality multi-channel recording.

■Audio interface
■USB-C
■18in20out

■Main functions
18 inputs and 20 outputs: 8 mic preamps, line/instrument input/output supported
Equipped with ADAT and SPDIF digital input and output, ideal for studios performing multi-channel recording.

High-definition, ultra-low noise, equipped with 4th generation preamplifier that supports digital control
The preamplifier that inherits Focusrite's tradition has evolved significantly. 69dB gain compatible with various microphones and also compatible with remote control

Auto gain and clip safe for efficient recording preparation
Input levels can be automatically adjusted, allowing engineers to focus on recording the performance.

Air mode - Create sounds with Focusrite's 30-year history of traditional sounds
Analog circuitry and built-in DSP recreate the sound of studio consoles and traditional ISA preamps

Super comfortable with ultra-low latency monitoring
Flexible routing of ultra-low latency audio signals with direct routing and built-in mixer

Uses the same electronic circuit as the top model at the heart of the sound
Equipped with an AD/DA converter equivalent to Focusrite's flagship RedNet series, achieving 24-bit 192 kHz and 122 dB dynamic range.

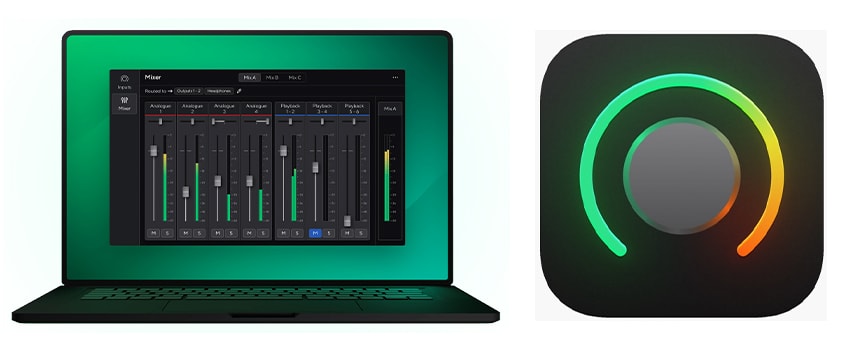

Control settings from your PC or mobile device
Easily create mixes and manage levels on your computer with Focusrite Control 2 software and mobile app. Also compatible with remote control from mobile devices

Includes many usable music production software
Includes Pro Tools Intro+ for Focusrite, Ableton Live Lite, and a variety of instruments, processors, and effect plug-ins

Easy setup with easy start tool
With easy driver installation and convenient setup tools, you can start producing music right away.

■Included bundled software/license
□DAW
Ableton Live Lite
Avid Pro Tools Intro+ for Focusrite

□Others
Splice Sounds
Landr Studio and 5 free masterings

□Hitmaker Expansion
Antares Auto-Tune Access
Softube Marshall Silver Jubilee 2555
Native Instruments MASSIVE
Sonnox VoxDoubler
Brainworx bx_console Focusrite SC
Focusrite Red 2 & 3 Plug-in Suite
XLN Audio Addictive Keys
XLN Audio Addictive Drums 2: Studio Rock
Relab LX480 Essentials
FAST Balancer

■Product hardware specifications
Number of mic preamps: 8
Phantom power: Yes (each channel independent)
Instrument input: 2
Line input: 8
Air mode: Yes
Auto gain: Yes
Clip safe: Compatible
Line output: 10
Headphone output: 2
ADAT input: 2
ADAT output: 2
SPDIF input: 2
SPDIF output: 2
Loopback: Yes
Connection: USB Type-C
Connection method: USB 2.0
Class compliant: Yes
Simultaneous input/output: 20 x 24 (including Loopback)
A/D resolution: 24 bits/192kHz
Bus power: Not supported

■Included items
power cable
USB cable
*Manuals are available in PDF format.

■Operating environment
Please check the manufacturer site for the latest operating environment.
