CLASSIC PRO / CubeMini

CLASSIC PRO/CubeMini is a 2-way speaker system consisting of a 4-inch mid-low frequency transducer that uses neodymium magnets and a 1.3-inch compression driver. Innovative point-source coaxial technology delivers precise, clear sound that accurately describes and reproduces individual sounds.

■Passive speaker
■4 inches
■200W(PGM)
■2.4kg
■1 bottle

■The high range uses a PEEK composite sound film and an aluminum flat wire voice coil to achieve clear, bright sound quality and stable acoustic performance.
■A sturdy steel mesh grille with a special acoustically transparent foam inside and an aluminum enclosure protect the speaker safely.
■Point source coaxial technology improves sound clarity and enables a wide range of directional characteristics.
■In addition to installing on a wall or ceiling using the included bracket, it can also be installed on a straight microphone stand (3/8 inch, up to 130 cm in height including the speaker itself).

Main uses

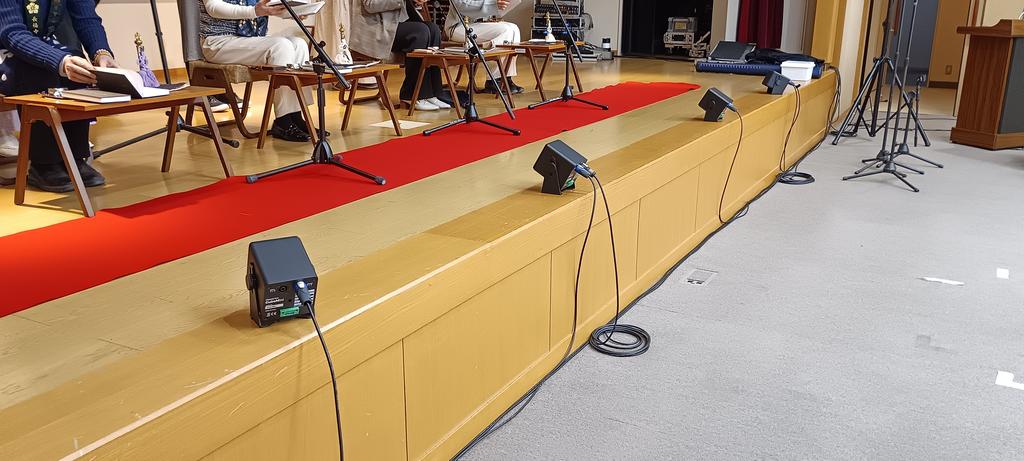

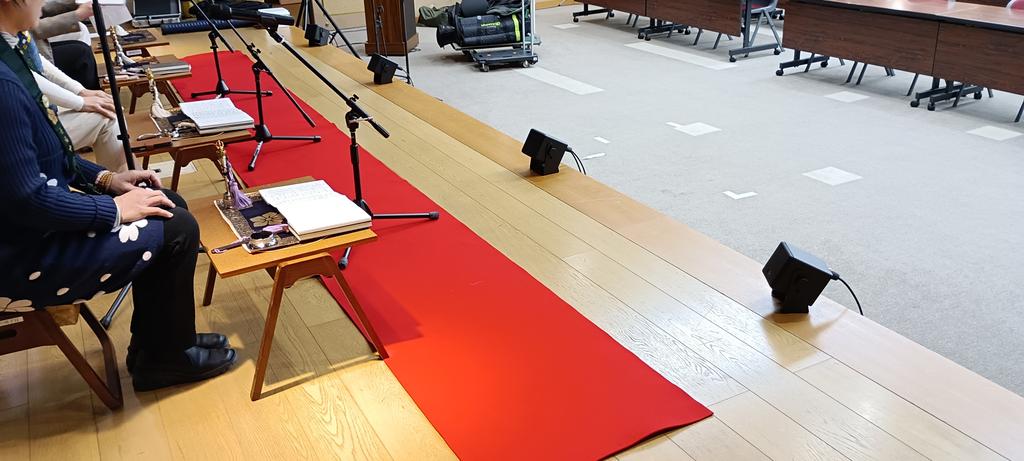

Announcements for shopping malls, hotel lobbies, bars, restaurants, business lounges, etc., BGM music playback, etc.

specification
■Format: Passive 2-way coaxial speaker
■Frequency characteristics (-10dB): 100Hz -20kHz
■Allowable input: 100W (RMS), 200W (PGM), 400W (peak)
■Impedance: 8Ω
■Maximum SPL (@1m): 113dB (peak)
■Direction angle (coverage): 80° x 80°
■Input connector: Speakon terminal x2 / Phoenix terminal x1
■Dimensions:
Main body: width 115 x height 115 x depth 138mm
When bracket installed: Width 145 x Height 156 x Depth 143mm (including protrusions)
■Weight: 2.4kg
